The correct way to cut EVA, EPE, and PU foam for packaging inserts without compression or deformation is to use a high-frequency oscillating knife — a blade that vibrates at 15,000–25,000 strokes per minute and slices through foam cells rather than compressing them. This method produces vertical, clean-walled cuts with no edge compression, no tearing, and no dimensional drift across the full cut depth. It works on soft closed-cell foams (EPE, XPE), semi-rigid open-cell foams (PU, sponge), and dense cross-linked foams (EVA) without changing tooling or parameters.
If you are currently cutting foam with a band saw, hot wire, die press, or manual knife and experiencing compressed edges, inconsistent dimensions, or excessive material waste, this guide explains why those problems occur and how CNC oscillating knife cutting eliminates them.
Foam's mechanical properties — the same properties that make it an excellent cushioning and protective material — make it genuinely difficult to cut with conventional methods.
Foam is a viscoelastic cellular material. When a force is applied to its surface, the cells compress elastically before the material fails (cuts). Any cutting tool that applies sustained downward pressure — a band saw blade, a die press, a manual knife dragged through the material — compresses the foam ahead of the cutting edge before the cut is made.
The result: the cut edge is compressed during cutting, then springs back partially after the tool is removed. The recovered edge is not vertical — it has a slight inward bow from the compression-recovery cycle. For packaging inserts where a tight fit around the protected component is required, this edge compression creates dimensional inaccuracy that causes the insert to either grip the component too tightly (risk of surface damage) or fit too loosely (inadequate cushioning protection).
Compression is worst with:
Band saws (blade tension creates lateral compression)
Die presses (downward force compresses the entire foam sheet before cutting)
Manual knives (dragging motion creates both compression and tearing)
Soft foams — particularly low-density EPE (expanded polyethylene) and open-cell PU foam — have low tear strength. A cutting tool that applies lateral force (a dragging knife, a band saw blade moving in one direction) can tear the foam cells rather than cutting them cleanly. Torn edges are ragged, inconsistent, and dimensionally unpredictable.
Tearing is worst with:
Manual knives on soft EPE and low-density PU foam
Band saws on open-cell sponge foam
Dull blades on any foam type
For complex packaging insert shapes — pockets that must fit specific component geometries, multi-cavity inserts, inserts with precise wall thicknesses between cavities — maintaining dimensional accuracy across the full cut depth is critical. Conventional cutting methods introduce dimensional drift through:
Blade deflection: A band saw blade or manual knife deflects laterally under cutting resistance, causing the cut to wander from the programmed path
Operator variation: Manual cutting accuracy depends on operator skill and attention — it varies between operators and degrades with fatigue
Template wear: Die cutting templates wear over time, causing progressive dimensional drift
Manual foam cutting and die cutting both generate significant material waste. Manual cutting relies on operator judgment for layout, typically leaving 15–25% waste. Die cutting requires a physical die for each shape, and die changeover time limits the ability to mix different shapes on a single foam sheet — further reducing material utilization.
EVA, EPE, and PU foam have different cellular structures, densities, and mechanical properties. Understanding these differences explains why each requires specific cutting parameters.
Structure: Cross-linked closed-cell foam
Density range: 25–200 kg/m³
Key properties: Dense, firm, resilient, smooth surface, excellent dimensional stability
Typical applications: Tool case inserts, sports equipment padding, marine decking, cosplay armor, shoe soles
Cutting challenges:
High density requires more cutting force than soft foams
Cross-linked structure resists blade penetration — dull blades cause compression
Dense surface can cause blade heating at high cutting speeds
Thick EVA sheets (25–50mm) require consistent blade angle through full depth
Optimal cutting parameters:
Oscillation frequency: High (20,000+ strokes/min)
Blade type: Straight oscillating knife, sharp edge
Cutting speed: Moderate — allow blade to cut rather than push
Vacuum hold-down: Essential — EVA's smooth surface can shift without firm hold-down
Structure: Closed-cell expanded foam
Density range: 15–45 kg/m³
Key properties: Very soft, lightweight, excellent shock absorption, low tear strength
Typical applications: Electronics packaging, fragile goods protection, void fill, protective liners
Cutting challenges:
Very low density means the foam compresses easily under any sustained pressure
Low tear strength means lateral cutting forces cause tearing rather than clean cuts
Lightweight material tends to shift on the cutting table — vacuum hold-down is critical
Thin walls between cavities (5–10mm) are fragile and easily deformed during cutting
Optimal cutting parameters:
Oscillation frequency: Very high (22,000–25,000 strokes/min) — rapid oscillation minimizes sustained pressure on each cell
Blade type: Fine-tipped oscillating knife for tight radii; straight knife for straight cuts
Cutting speed: Fast — minimize contact time to reduce compression
Vacuum hold-down: Critical — EPE's light weight makes it prone to lifting
Structure: Open-cell foam
Density range: 20–80 kg/m³
Key properties: Soft, compressible, open-cell structure absorbs liquids, wide range of firmness
Typical applications: Furniture cushions, mattress components, acoustic panels, medical packaging, automotive seating
Cutting challenges:
Open-cell structure means the foam compresses significantly under pressure and recovers slowly
Soft grades (20–30 kg/m³) have very low cutting resistance — blade must be sharp to cut rather than compress
Thick PU sheets (50–150mm) require consistent vertical blade angle through full depth
Adhesive-backed PU foam can stick to cutting table — requires release layer or specialized table surface
Optimal cutting parameters:
Oscillation frequency: High (18,000–22,000 strokes/min)
Blade type: Long straight oscillating knife for thick sheets; fine knife for detailed shapes
Cutting speed: Moderate — too fast causes compression; too slow causes blade heating
Vacuum hold-down: Moderate — PU foam is heavier than EPE and holds position better
How it works: Operator uses a utility knife or foam knife to cut along a template or marked line.
Results:
Edge quality: Poor — compression and tearing on soft foams; blade wander on thick sheets
Dimensional accuracy: ±2–5mm — operator-dependent
Material waste: 20–30% — inefficient manual layout
Labor requirement: High — skilled operator required for acceptable results
Throughput: Low — 5–15 pieces per hour for complex shapes
Verdict: Acceptable only for simple shapes, low volumes, and non-critical applications. Not suitable for precision packaging inserts.
How it works: A custom steel rule die stamps through the foam sheet under press pressure.
Results:
Edge quality: Moderate — compression at die edges, especially on soft foams
Dimensional accuracy: ±0.5–1.5mm — degrades as die wears
Material waste: 15–20% — fixed die geometry limits layout optimization
Tooling cost: $300–$1,500 per die shape
Lead time for new shapes: 1–3 weeks
Throughput: High for single shapes — 50–200 pieces per hour
Verdict: Economical for very high volume production of a single, unchanging shape. Uneconomical for multiple shapes, custom orders, or frequent design changes.
How it works: A heated wire melts through EPS or XPS foam.
Results:
Edge quality: Good for EPS/XPS — melted edge is smooth
Dimensional accuracy: ±1–3mm — wire deflection causes drift on complex shapes
Material waste: Moderate
Limitations: Only works on EPS and XPS — melts and destroys EVA, EPE, and PU foam. Produces toxic fumes from EPS cutting. Not suitable for food packaging applications.
Verdict: Limited to EPS/XPS rigid foam only. Not applicable for EVA, EPE, or PU foam.
How it works: Foam sheet is fed through a band saw for straight or curved cuts.
Results:
Edge quality: Moderate — blade tension causes lateral compression; soft foams tear
Dimensional accuracy: ±1–3mm — blade deflection on soft materials
Material waste: High — requires operator to manually position and cut
Safety: Significant — exposed blade creates injury risk
Limitations: Difficult to cut complex shapes; requires operator guidance for curves
Verdict: Suitable for rough-cutting large foam blocks into sheets. Not suitable for precision packaging inserts or complex shapes.
How it works: A computer-controlled oscillating knife vibrates at 15,000–25,000 strokes per minute and follows a programmed cutting path with ±0.1mm accuracy.
Results:
Edge quality: Excellent — oscillating motion slices cells without sustained compression; vertical walls throughout cut depth
Dimensional accuracy: ±0.1mm — CNC-controlled, consistent across every part
Material waste: 8–15% — intelligent nesting software optimizes pattern layout
Tooling cost: $0 — no dies required; all shapes are digital files
Lead time for new shapes: Under 5 minutes — load DXF file and cut
Throughput: High — cuts multiple shapes simultaneously in a single automated sequence
Labor requirement: Low — one operator for loading/unloading
Verdict: The correct method for precision packaging inserts in EVA, EPE, and PU foam. Eliminates all compression, tearing, and dimensional drift problems. Economical from prototype quantities through mass production.
The physics of oscillating knife cutting explains why it produces compression-free foam cuts.
A conventional knife dragged through foam applies a sustained lateral force to the foam cells ahead of the blade. The cells compress, the blade advances through the compressed material, and the cells partially recover after the blade passes — leaving a compressed, bowed edge.
An oscillating knife moves differently. The blade vibrates at 15,000–25,000 strokes per minute with a stroke amplitude of 1–3mm. Each individual stroke is a discrete cutting action — the blade advances, cuts a small increment of foam, and retracts before the foam cells can respond with sustained compression. The next stroke advances slightly further and cuts the next increment.
The result is a cutting action that is more like slicing than pushing. The foam cells are cut, not compressed. The cut wall is vertical, the edge is clean, and there is no compression-recovery deformation.
Key parameters that determine cut quality:
Parameter | Effect on Cut Quality | Optimal Range |
Oscillation frequency | Higher frequency = less compression per stroke | 18,000–25,000 strokes/min |
Blade sharpness | Sharp blade cuts; dull blade compresses | Replace at first sign of edge drag |
Cutting speed | Too fast = compression; too slow = heating | Material-dependent, typically 300–800mm/min |
Vacuum hold-down pressure | Insufficient hold-down = material shift = dimensional error | Adjusted per foam density |
Blade angle | Must remain vertical through full cut depth | CNC-controlled |
For packaging inserts that require pockets, grooves, stepped profiles, or 3D recesses — rather than simple through-cuts — a milling tool is used in combination with the oscillating knife.
What milling adds to foam cutting:
Pockets and recesses: Cut a cavity into the foam surface without cutting through — for components that sit in a recessed pocket rather than a through-hole
Stepped profiles: Create multi-level foam inserts where different components sit at different depths
Beveled edges: Mill angled edges on foam profiles for aesthetic or functional purposes
Grooves and channels: Cut channels for cables, tubes, or other linear components
How it works in practice:
A CNC foam cutting machine with both oscillating knife and milling tool can complete a complex packaging insert in a single workflow:
The oscillating knife cuts the outer profile and any through-holes
The milling tool creates pockets, recesses, and grooves
The finished insert is removed — complete, with no secondary operations required
This single-workflow capability is particularly valuable for custom tool case inserts (Pelican-style cases, equipment cases, medical device packaging) where the insert must precisely match a complex 3D component geometry.
Foam sheet material — particularly EVA and EPE — is a significant cost component in packaging production. Material waste directly affects cost per insert.
CNC foam cutting machines include intelligent nesting software that automatically arranges cut patterns on the foam sheet to maximize material utilization.
How nesting reduces foam waste:
Manual cutting and die cutting typically achieve 70–80% material utilization — 20–30% of the foam sheet is wasted as offcuts between parts. The nesting software analyzes all required shapes and finds the most efficient arrangement, typically achieving 85–92% material utilization.
For a packaging manufacturer cutting 50 EVA sheets per day at $15 per sheet:
Manual cutting at 75% utilization: $750/day in material
CNC nesting at 90% utilization: $625/day in material
Daily material saving: $125
Annual material saving: ~$31,000
The nesting software also enables mixing different shapes on a single sheet — cutting inserts for multiple product types from one sheet, filling gaps between large shapes with smaller shapes. This is impossible with die cutting (which requires a dedicated die per shape) and impractical with manual cutting.
Shilai offers a complete range of CNC foam cutting machines for EVA, EPE, PU, EPS, XPS, EPDM, and sponge foam applications. The right model depends on your foam types, sheet sizes, shape complexity, and production volume.

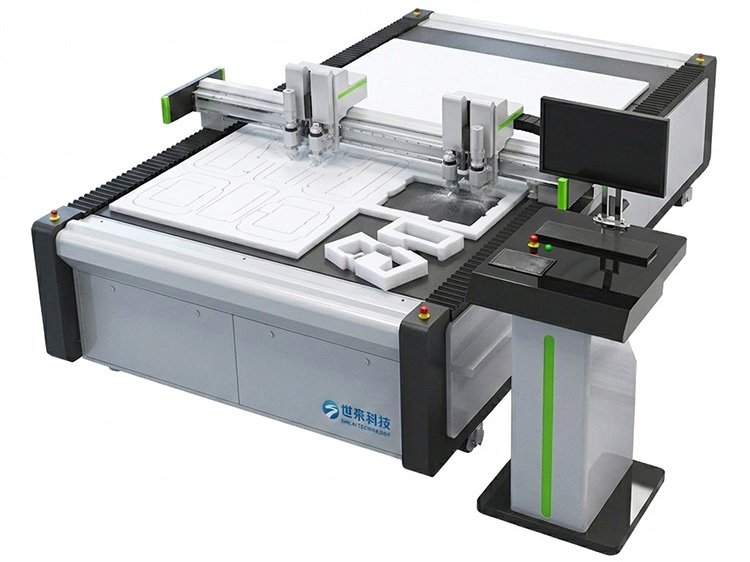

SL1625FF EPE Foam Cutting Machine
Main materials: EPE, EVA, XPE foam
Best for: Packaging inserts, case interiors, protective liners
Key features: Oscillating knife + milling tool, creates precise pockets and recesses without dies, intelligent nesting software
Working area: 1600×2500mm
Accuracy: ±0.1mm
Warranty: 3 years
SL1325FF EVA Foam Cutting Machine
Main materials: EVA foam sheets
Best for: Cosplay, marine decking, tool case inserts, custom EVA shapes
Key features: CNC knife cutter with milling tool, clean cuts without dies
Warranty: 3 years
SL1630FF Automatic PU Foam Cutting Machine
Main materials: PU foam, furniture foam, packaging foam
Best for: Furniture cushions, packaging inserts, automotive foam parts
Key features: Automatic cutting, clean compression-free cuts, intelligent nesting
Warranty: 3 years
SL1625SF Sponge Flatbed Digital Cutter
Main materials: Sponge, PU foam, EPE
Best for: Flat sheets for furniture, packaging, and acoustics
Key features: Flatbed oscillating knife, vertical cuts, ±0.1mm accuracy
Warranty: 3 years
SL1625FM Foam Cutting Machine with Milling Tool
Main materials: EVA, EPE, PU, sponge and other foams
Best for: Custom case inserts, prototypes, packaging with pockets and grooves
Key features: Combines oscillating knife + high-speed milling tool, complex 3D profiles in a single workflow, ±0.1mm accuracy
Warranty: 3 years
SL1610FF CNC XPS Foam Cutting Machine
Main materials: XPS, EPS and rigid foams
Best for: Insulation panels, architectural models, 3D signs
Key features: CNC knife cutter, dust-reduced cutting, no hot wires required
Warranty: 3 years
SL1390FF Digital EPS Foam Cutting Machine
Main materials: EPS foam (Styrofoam)
Best for: Protective packaging, lost-foam casting, signs
Key features: Digital knife cutter, eliminates dust and fumes of hot wire cutting
Warranty: 3 years
SL1625FC Dieless EPDM Foam Cutting Machine
Main materials: EPDM foam and similar gasket foams
Best for: Gaskets, seals, cushioning components
Key features: Auto-feed conveyor for continuous production, die-less cutting, ±0.1mm accuracy
Warranty: 3 years
For manufacturers who also cut non-foam sealing materials — rubber, PTFE, graphite, or non-asbestos gasket sheets — Shilai's CNC gasket cutting machines use the same oscillating knife technology with tooling optimized for denser, harder sealing materials.
Electronics packaging — inserts for smartphones, tablets, cameras, medical devices — requires the tightest dimensional tolerances of any foam packaging application. The insert must hold the component securely without pressure points that could damage screens or connectors.
Requirements:
Dimensional accuracy: ±0.2mm or better for tight-fit electronics inserts
Edge quality: Clean, vertical walls — no compression that would cause the component to sit off-center
Wall thickness: 5–10mm walls between cavities are common — requires precise cutting without deflection
Recommended machine: SL1625FF or SL1625FM (with milling for recessed pockets)
Key parameters: High oscillation frequency (22,000+ strokes/min), sharp fine-tipped blade, full vacuum hold-down
Custom tool case inserts — for Pelican cases, equipment cases, military cases — require precise pockets that match specific tool geometries. The insert must hold each tool securely in its designated position.
Requirements:
Complex pocket shapes matching tool profiles
Clean pocket walls — no compression that would cause tools to rattle
Consistent depth — tools should sit at the correct height in their pockets
Recommended machine: SL1625FM (oscillating knife + milling tool combination)
Key parameters: Milling tool for pocket depth control, oscillating knife for outer profile and through-cuts
Furniture foam cutting — seat cushions, back cushions, armrest padding — requires clean straight cuts through thick PU foam (typically 50–150mm) with consistent dimensions across production runs.
Requirements:
Consistent dimensions across production batches — cushions must fit furniture frames precisely
Clean cut faces — visible on assembled furniture
High throughput — furniture production volumes are high
Recommended machine: SL1630FF or SL1625SF
Key parameters: Long straight blade for thick sections, moderate cutting speed, nesting software for sheet optimization
Automotive foam applications — door panel padding, headliner inserts, trunk liners, seat foam components — require dimensional consistency for assembly fit and clean edges for visible surfaces.
Requirements:
±0.1mm accuracy for assembly-fit components
Multi-shape cutting — automotive foam kits contain many different shapes
Integration with CAD data from automotive design systems
Recommended machine: SL1630FF (for PU) or SL1625FF (for EVA/EPE)
If you are currently using die cutting for foam packaging inserts, the transition to CNC cutting follows a straightforward process.
Step 1: Digitize your shape library
Convert existing die shapes to DXF files. If you have original CAD data, this is immediate. If shapes exist only as physical dies, they can be measured and re-drawn in CAD software. Most shapes can be digitized in 15–30 minutes each.
Step 2: Sample test on your foam materials
Run sample cuts on your actual foam materials — the specific grades and densities you use for your customers. Verify cut quality, dimensional accuracy, and edge condition before committing to production.
Step 3: Nesting setup
Configure the nesting software with your standard sheet sizes and the shapes in your library. Run nesting simulations to verify material utilization improvement.
Step 4: Parallel production period
For the first 2–4 weeks, run CNC and die cutting in parallel for the same orders. This validates CNC output against your quality standards and gives operators time to become proficient.
Step 5: Full transition
Once CNC output is validated, transition fully to CNC cutting. Retire dies as they are confirmed no longer needed.
Typical transition timeline: 2–4 weeks from machine installation to full production.
Cutting EVA, EPE, and PU foam for packaging inserts without compression or deformation requires a cutting method that slices foam cells rather than compressing them. CNC oscillating knife cutting — with blade oscillation at 15,000–25,000 strokes per minute, CNC-controlled cutting paths, and vacuum hold-down — is the only method that consistently delivers compression-free, dimensionally accurate foam cuts across all three material types.
The operational advantages extend beyond cut quality: zero tooling cost, instant shape changes, intelligent nesting for material efficiency, and optional milling capability for complex pocket profiles — all in a single automated workflow.
Whether you are cutting simple EPE protective liners, complex EVA tool case inserts, or thick PU furniture cushions, Shilai's CNC foam cutting machines are configured for your specific foam type and production requirements.
Tell us your foam materials, sheet sizes, shape complexity, and daily production volume — and our team will recommend the right CNC foam cutting machine and arrange a free sample test on your materials.
Request a Free Foam Cutting Sample Test →
The best way to cut EVA foam without compression is with a high-frequency CNC oscillating knife cutting machine. The blade vibrates at 15,000–25,000 strokes per minute, slicing through EVA cells rather than compressing them. This produces vertical, clean-walled cuts with no edge compression, no tearing, and ±0.1mm dimensional accuracy — results that cannot be achieved with band saws, die presses, or manual knives.
Yes. CNC oscillating knife cutting cuts EPE foam cleanly without tearing. The key is high oscillation frequency (22,000–25,000 strokes/min) and a sharp fine-tipped blade — the rapid oscillation minimizes sustained lateral force on EPE's low-strength cell walls, preventing the tearing that occurs with band saws and manual knives. Full vacuum hold-down is also essential to prevent EPE's lightweight material from shifting during cutting.
Oscillating knife CNC cutting uses a computer-controlled vibrating blade to cut foam shapes from digital files — no physical dies required. Die cutting uses a custom steel rule die pressed into the foam under pressure. CNC cutting produces better edge quality (no compression), ±0.1mm accuracy, zero tooling cost, and instant shape changes. Die cutting has lower per-piece cycle time at very high volume on a single, unchanging shape, but requires $300–$1,500 per die and 1–3 weeks lead time for new shapes.
Yes. CNC foam cutting machines equipped with a milling tool — such as the SL1625FM — can cut pockets, recesses, stepped profiles, and grooves in foam in a single workflow. The oscillating knife cuts the outer profile and through-holes; the milling tool creates pockets at controlled depths. This capability is essential for tool case inserts and electronics packaging where components must sit in recessed pockets.
CNC oscillating knife foam cutting machines can cut foam from 3mm to 150mm thick, depending on the model and blade length. Thin foams (3–20mm) are cut with standard short blades; thick PU foam and EVA blocks (50–150mm) require long straight blades that maintain vertical angle through the full cut depth. Confirm the maximum cutting thickness with the machine specification for your specific foam type and thickness.
CNC foam cutting with intelligent nesting software typically achieves 85–92% material utilization, compared to 70–80% for manual cutting and die cutting. The nesting software automatically arranges all required shapes on the foam sheet to minimize waste and can mix different shapes on a single sheet — filling gaps between large shapes with smaller shapes. For a typical packaging manufacturer, this yield improvement saves $25,000–$50,000 per year in foam material cost.
What Is a Leather Vision Nesting System and How Does It Maximize Hide Yield?
How To Cut Genuine Leather Without Wasting Material: CNC Leather Cutting Guide
How to Import a CNC Cutting Machine from China: Step-by-Step Buyer's Guide
How To Cut Rubber And PTFE Gaskets Without Dies: CNC Die-Less Gasket Cutting Explained
What Is a CNC Oscillating Knife Cutting Machine? Complete Buyer's Guide
What Cutting Accuracy Can a Composite Cutting Machine Achieve?
How to Control Dust When Cutting Fiberglass and Insulation Panels
How to Cut Aramid and Kevlar Fabric Without Fuzzing or Fraying
How to Cut Sticky Prepreg Materials Accurately: A Complete Guide
Intelligent Nesting for Composite Cutting: How to Maximize Material Yield and Reduce Waste
Oscillating Knife vs Laser vs Water Jet for Composite Material Cutting
CNC Oscillating Knife vs Laser Cutting: Choosing the Best Technology for Your Production Needs
How to Choose a Composite Material Cutting Machine Manufacturer
CNC Fabric Cutting vs Laser Cutting: Which Is Right for Your Production?
Oscillating Knife Cutting Machine: Complete Guide for Industrial Applications
CNC Leather Cutting Machine: The Ultimate Guide for Footwear, Furniture & Automotive Industries
