How to Choose the Right Composite Cutting Technology

When it comes to processing composite materials, selecting the right cutting technology is crucial for achieving optimal performance, quality, and efficiency. With various options available, including oscillating knife cutting, laser cutting, and water jet cutting, understanding the strengths and weaknesses of each method can help you make an informed decision.

In this article, we will explore the different cutting technologies for composites, their applications, and how to choose the most suitable option for your specific needs.

Understanding the Different Cutting Technologies

1.1 Oscillating Knife Cutting

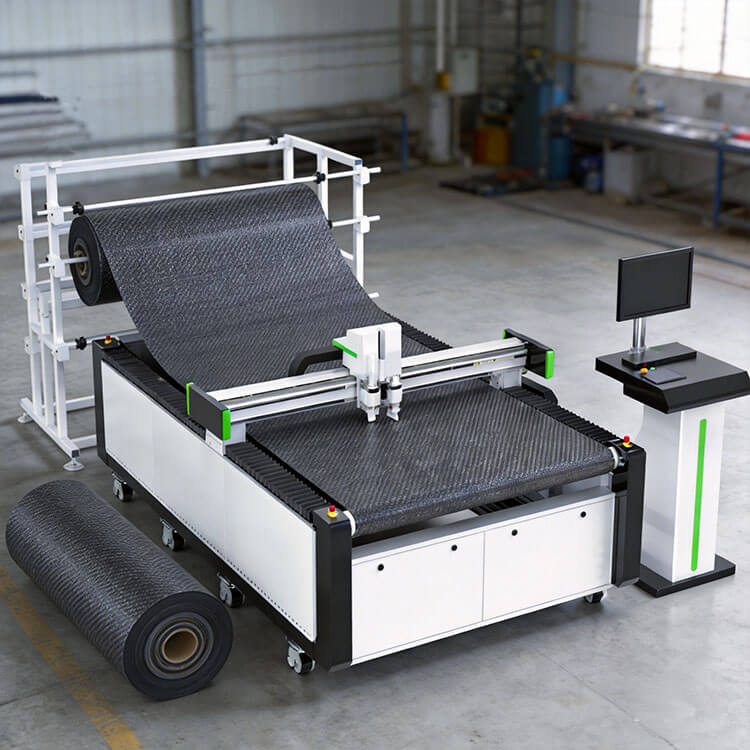

CNC oscillating knife cutting utilizes a rapidly vibrating blade controlled by computer numerical control (CNC) to cut through materials. The blade moves up and down while traveling along a programmed path, allowing for precise cutting without generating significant heat.

Advantages:

• Cold Cutting Process: Prevents thermal damage to sensitive composite materials.

• Excellent Edge Quality: Produces clean, fray-free edges, ideal for high-quality applications.

• Versatility: Suitable for a wide range of materials, including dry fabrics, sticky prepregs, and rigid panels.

Applications:

• Aerospace components

• Automotive parts

• Marine applications

• HVAC ducting

1.2 Laser Cutting

Laser cutting employs a focused beam of light energy to melt, burn, or vaporize materials. This method is effective for cutting thin materials but can cause thermal damage to composites.

Advantages:

• High Precision: Produces very narrow kerfs and intricate designs.

• Fast Cutting Speeds: Ideal for high-volume production of thin materials.

Disadvantages:

• Heat Affected Zone: Can damage resin matrices and lead to delamination in composite materials.

• Limited Material Compatibility: Best suited for thin, heat-resistant materials.

Applications:

• Decorative parts

• Thin thermoplastic composites

• Non-structural components

1.3 Water Jet Cutting

Water jet cutting utilizes a high-pressure stream of water, often mixed with abrasive particles, to erode material along the cutting path. This method is effective for cutting thick and hard materials.

Advantages:

• Cold Cutting: Minimizes thermal impact, preserving material integrity.

• Versatile: Can cut a wide range of materials, including metals and composites.

Disadvantages:

• Slower Cutting Speeds: Generally slower than oscillating knife or laser cutting.

• Moisture Issues: Water exposure can affect certain materials, especially prepregs.

Applications:

• Thick composite laminates

• Hybrid metal-composite stacks

• Technical textiles

Factors to Consider When Choosing Cutting Technology

2.1 Material Type and Thickness

The type of composite material and its thickness are critical factors in determining the appropriate cutting technology. For example:

• Thin Materials: Laser cutting may be suitable for thin thermoplastics but not for sensitive composites.

• Thick Materials: Oscillating knife or water jet cutting is often preferred for thicker composites to maintain edge quality.

2.2 Desired Edge Quality

The required edge quality can influence your choice of cutting technology. If you need clean, fray-free edges for applications like aerospace or automotive parts, oscillating knife cutting is typically the best choice.

2.3 Production Volume

Consider your production volume when selecting a cutting method:

• High-Volume Production: Laser cutting may offer speed advantages for thin materials.

• Low-Volume or Prototyping: Oscillating knife cutting provides flexibility for varied materials and designs.

2.4 Cost Considerations

Evaluate both the initial investment and the total cost of ownership, including operating costs (energy consumption, consumables, maintenance) and potential downtime. A more reliable machine may offer lower long-term costs, even if the upfront price is higher.

2.5 Future Needs

Consider your future production needs when selecting a cutting technology. Will you be expanding into new materials or increasing production volumes? Choose a technology that can adapt to your evolving requirements.

Making the Right Choice

To make an informed decision, follow these steps:

1. Assess Your Materials: Identify the types of composites you will be cutting and their thicknesses.

2. Determine Quality Requirements: Define the edge quality and precision needed for your applications.

3. Evaluate Production Needs: Consider your production volume and any future growth plans.

4. Research Available Technologies: Compare oscillating knife, laser, and water jet cutting based on your specific criteria.

5. Consult with Experts: Engage with manufacturers or industry experts to gain insights and recommendations tailored to your needs.

Conclusion

Choosing the right cutting technology for composite materials is essential for achieving optimal results in your manufacturing processes. By understanding the strengths and weaknesses of each method and considering your specific needs, you can select a solution that enhances your production efficiency, quality, and profitability.

If you’re ready to explore your options, contact Shilai for personalized recommendations tailored to your specific materials and production requirements.

Frequently Asked Questions (FAQ)

What is the best cutting technology for carbon fiber?

CNC oscillating knife cutting is typically the best choice for carbon fiber, as it produces clean, fray-free edges without thermal damage.

Can laser cutting be used for fiberglass?

Yes, but it can create a heat-affected zone that may damage the resin matrix. Oscillating knife cutting is often preferred for fiberglass to maintain edge quality.

How does water jet cutting compare to oscillating knife cutting?

Water jet cutting is effective for thick materials and does not generate heat, but it is generally slower than oscillating knife cutting and may introduce moisture issues.

What factors should I consider when choosing a cutting technology?

Consider material type and thickness, desired edge quality, production volume, cost considerations, and future needs when selecting a cutting technology.

How can I ensure I choose the right cutting technology for my application?

Assess your specific materials and requirements, research available technologies, and consult with experts to make an informed decision.
