Author: Win Zhang Publish Time: 2026-05-19 Origin: SLCNC
Prepreg materials — carbon fiber, fiberglass, and aramid fabrics pre-impregnated with uncured resin — are among the most demanding materials to cut in composite manufacturing. Their tacky surface sticks to blades and cutting tables. Their resin matrix is sensitive to heat, moisture, and mechanical stress. And because aerospace-grade prepregs can cost $80–$300 or more per meter, every cutting error carries a significant financial penalty.
Cutting prepreg accurately requires more than a sharp blade. It demands the right machine configuration, purpose-built blade geometry, controlled cutting environment, and intelligent nesting software — all working together to deliver clean, dimensionally accurate cuts without deforming the material or contaminating the resin.
In this guide, we cover everything composite manufacturers need to know about cutting sticky prepreg materials accurately: why prepreg is difficult to cut, what equipment and process parameters matter most, and how to configure a CNC prepreg cutting machine for consistent, high-quality results.
Prepreg (short for "pre-impregnated") is a composite reinforcement fabric — typically carbon fiber, fiberglass, or aramid — that has been saturated with a precisely measured quantity of uncured thermosetting resin (usually epoxy). The resin is partially cured (B-staged) to give the material a semi-solid, handleable form.
Prepregs are used extensively in:
Aerospace and defense: structural panels, fuselage components, wing skins, radomes
Motorsport: Formula 1 and GT car bodywork, chassis components, aerodynamic parts
Automotive: lightweight structural reinforcements, roof panels, door inlays
Marine: high-performance boat hulls and structural components
Industrial: pressure vessels, sporting goods, medical equipment
The controlled resin content and fiber orientation of prepreg materials deliver superior mechanical properties compared to wet layup composites — but these same characteristics make accurate cutting significantly more challenging.
The uncured resin gives prepreg a sticky, tacky surface that adheres to cutting blades, cutting table surfaces, backing paper, and handling equipment. As a blade passes through the material, resin builds up on the blade edge, increasing friction, reducing cutting sharpness, and eventually causing the blade to drag rather than cut — leading to distorted edges and inaccurate dimensions.
Prepreg resin begins to cure when exposed to elevated temperatures. Cutting methods that generate heat — laser cutting, high-speed routing — can initiate partial curing at the cut edge, changing the material's properties and potentially causing bonding problems in downstream layup processes.
Prepreg must be cut using cold cutting processes only. This is a fundamental requirement that eliminates laser cutting and most routing approaches from consideration.
Unlike rigid materials, prepreg is flexible and deformable. Excessive cutting force or inadequate fixation causes the material to shift, stretch, or deform during cutting — resulting in dimensional inaccuracy and fiber misalignment that can compromise the structural performance of the finished part.
Most prepreg materials have a defined out-time — the maximum time they can remain at room temperature before the resin begins to advance beyond its working window. This means cutting operations must be efficient and well-planned. Slow, manual cutting processes waste valuable out-time and increase the risk of material degradation before layup.
Given the constraints above — no heat, minimal cutting force, high accuracy, time efficiency — CNC oscillating knife cutting is the established standard for prepreg cutting in aerospace, motorsport, and advanced composite manufacturing worldwide.
The oscillating knife cuts by rapidly vibrating a sharp blade (typically 3,000–20,000 strokes per minute) along a CNC-programmed path. The blade slices through fibers and resin with minimal lateral force, generating no heat, and leaving a clean cut edge.
Key advantages for prepreg cutting:
Requirement | How Oscillating Knife Addresses It |
No heat generation | Cold mechanical cutting process — zero thermal input |
Minimal cutting force | High-frequency oscillation reduces required blade pressure |
High dimensional accuracy | CNC control maintains ±0.1mm or better repeatability |
Material fixation | Integrated vacuum hold-down prevents movement during cutting |
Time efficiency | Automated cutting is 5–10x faster than manual methods |
Fiber orientation compliance | Nesting software enforces orientation for every part |

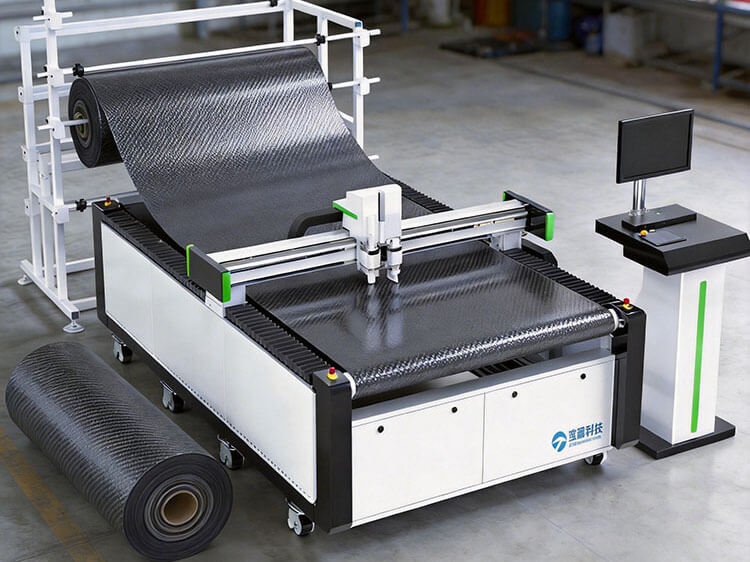

For dedicated prepreg processing, Shilai's SL1625PF Resin Prepreg Cutting Machine is specifically engineered for tacky prepreg materials, with blade systems, table surfaces, and software configurations optimized for aerospace and motorsport production environments.
Blade selection is the single most critical variable in prepreg cutting quality. The wrong blade causes resin buildup, dragging, and edge distortion. The right blade cuts cleanly through hundreds of meters of prepreg before requiring replacement.
Recommended blade types for prepreg:
Blade Type | Best For | Notes |
Straight oscillating blade | Unidirectional (UD) prepreg, woven prepreg | Standard choice for most prepreg applications |
Coated straight blade (PTFE/TiN) | Highly tacky prepregs, high-resin-content materials | Coating reduces resin adhesion to blade surface |
Drag knife | Very thin prepreg films | Used for light-tack materials where oscillation is unnecessary |
Blade coating matters significantly for prepreg. PTFE (polytetrafluoroethylene) coated blades dramatically reduce resin adhesion, extending blade life and maintaining cut quality over longer production runs. For high-resin-content aerospace prepregs, coated blades are strongly recommended.
Blade sharpness management:
Inspect blade edges regularly — dull blades are the most common cause of poor prepreg cut quality
Establish a blade replacement schedule based on material type and cutting volume
Never attempt to cut prepreg with a blade that shows any sign of resin buildup or edge rounding
Prepreg's flexibility and tendency to deform under cutting forces make a robust vacuum hold-down system essential. Without adequate fixation, even a well-configured blade will produce inaccurate cuts as the material shifts during the cutting process.
Vacuum hold-down requirements for prepreg:
Uniform vacuum distribution: The cutting table must maintain consistent suction across the entire cutting area, including edges and corners where prepreg tends to lift
Adequate vacuum pressure: Typically 15–25 mbar below atmospheric pressure for most prepreg materials; higher-tack materials may require stronger vacuum
Sealed table surface: Any gaps or worn areas in the cutting table surface reduce vacuum effectiveness — regular table inspection and maintenance is essential
Backing paper management: Most prepregs are supplied with a release liner (backing paper). The backing paper should remain in place during cutting to protect the table surface and maintain vacuum seal integrity
Tip: For very tacky prepregs that resist lying flat, pre-conditioning the material at room temperature for 15–30 minutes before cutting allows it to relax and conform to the table surface, improving vacuum hold-down effectiveness.
Cutting speed and blade oscillation frequency must be balanced for each specific prepreg material. Moving too fast reduces cut quality; moving too slowly increases resin buildup on the blade.
General guidelines:
Material Type | Recommended Cutting Speed | Oscillation Frequency |
Standard carbon fiber prepreg (1–3 ply) | 800–1,200 mm/min | Medium-high |
Thick carbon fiber prepreg (4–8 ply) | 400–800 mm/min | High |
Fiberglass prepreg | 1,000–1,500 mm/min | Medium |
Hybrid carbon/glass prepreg | 600–1,000 mm/min | Medium-high |
High-resin-content prepreg | 400–700 mm/min | High |
Note: These are starting-point guidelines. Optimal parameters should be established through sample testing on your specific material.
The relationship between speed and resin buildup:
Higher cutting speeds reduce the time each blade segment is in contact with the resin, which can reduce buildup. However, speeds that are too high for the material thickness cause the blade to drag rather than cut cleanly. Finding the optimal speed for each material requires systematic testing.
Prepreg resin viscosity — and therefore tackiness — changes significantly with temperature. Cold prepreg is stiffer and less tacky; warm prepreg is more flexible but stickier and more prone to blade adhesion.
Temperature management best practices:
Cutting room temperature: Maintain between 18–22°C (64–72°F) for most prepreg materials. This is the standard temperature range used in aerospace composite manufacturing facilities.
Material conditioning: Allow prepreg rolls removed from cold storage to reach room temperature before cutting. Cutting cold prepreg causes it to crack or delaminate at cut edges.
Avoid direct sunlight or heat sources: Localized heating of prepreg during cutting can cause uneven resin flow and dimensional instability.
Monitor seasonal variation: In facilities without climate control, summer temperatures can significantly increase prepreg tackiness and blade fouling rates.
For woven and multiaxial prepregs, the direction in which the blade travels relative to the fiber orientation affects cut quality. Cutting parallel to fiber bundles produces cleaner edges than cutting across them at acute angles.
Cutting path optimization for prepreg:
Avoid acute angles: Program cutting paths to approach corners and tight curves gradually rather than with sharp directional changes
Optimize entry and exit points: Blade entry and exit create the highest stress on the material — position these points away from critical part features
Minimize blade reversal: Frequent direction reversals increase resin buildup and can cause material distortion at reversal points
Use climb cutting where appropriate: For some prepreg types, cutting in the direction that pushes fibers into the material (rather than pulling them out) produces cleaner edges
Modern composite cutting machines include cutting path optimization tools that automatically apply these principles when generating CNC programs from nesting layouts.
For prepreg materials, intelligent nesting is not just about material savings — it is also about managing the out-time constraint effectively.
Why nesting matters more for prepreg than other composites:
Out-time management: Every minute a prepreg roll is open at room temperature consumes out-time. Efficient nesting minimizes the time between roll opening and cutting completion, preserving maximum out-time for the layup process.
Material cost: At $80–$300+ per meter, even a 5% improvement in material yield represents significant cost savings
Fiber orientation compliance: Structural prepreg parts have strict fiber orientation requirements that must be maintained in the nesting layout
Batch sequencing: Nesting software can sequence cuts to minimize material handling and reduce the number of times a roll must be opened and closed
The composite material cutting machines from Shilai include integrated nesting software that handles all of these prepreg-specific requirements — enforcing fiber orientation constraints, optimizing yield, and generating efficient cutting sequences that respect out-time limitations.
Symptoms: Increasing cutting resistance, dragged or torn edges, dimensional inaccuracy worsening over a cutting run
Causes:
Wrong blade type (uncoated blade on high-tack prepreg)
Cutting speed too slow
Room temperature too high
Blade past its service life
Solutions:
Switch to PTFE-coated blades
Increase cutting speed within quality limits
Lower room temperature to 18–20°C
Implement a regular blade replacement schedule
Clean blade periodically during long cutting runs using a soft cloth
Symptoms: Dimensional errors, fiber misalignment, cut lines drifting from programmed path
Causes:
Insufficient vacuum hold-down pressure
Worn or damaged cutting table surface
Backing paper removed before cutting
Material too cold (stiff, not conforming to table)
Solutions:
Check and restore vacuum system pressure
Inspect and repair cutting table surface
Keep backing paper in place during cutting
Allow material to reach room temperature before cutting
Symptoms: Resin-rich or resin-poor zones at cut edges, fiber separation visible at cut surface
Causes:
Blade too dull
Cutting force too high (wrong blade or speed setting)
Material not adequately supported at cut edge
Solutions:
Replace blade immediately
Reduce cutting speed and check blade type
Ensure vacuum hold-down is active across the full cutting area, including near edges
Symptoms: Parts within tolerance at start of run, drifting out of tolerance as run progresses
Causes:
Progressive blade wear
Thermal expansion of material as room temperature rises during the day
Resin buildup gradually increasing cutting force
Solutions:
Implement mid-run blade inspection and replacement protocol
Monitor and control room temperature throughout the cutting shift
Clean blade at regular intervals during long runs
Symptoms: High offcut percentage, frequent material shortfalls requiring new roll openings
Causes:
Manual or suboptimal nesting
Not accounting for fiber orientation in layout planning
Cutting single parts rather than batch nesting
Solutions:
Implement intelligent nesting software for all prepreg cutting jobs
Always nest full production batches rather than individual parts
Use remnant tracking to incorporate leftover material into future jobs
For manufacturers setting up or optimizing a prepreg cutting operation, the following workflow represents industry best practice:
Remove prepreg roll from cold storage
Allow to reach room temperature (typically 2–4 hours for a full roll)
Record roll ID, material lot number, and out-time start
Inspect roll for damage, delamination, or contamination
Select and install appropriate blade (coated straight blade for most prepregs)
Verify vacuum hold-down system pressure and table surface condition
Load cutting program from nesting software
Set cutting speed and oscillation frequency for the specific material
Unroll prepreg onto cutting table with backing paper facing down
Activate vacuum hold-down
Verify material is flat and fully adhered to table surface
Confirm fiber orientation alignment with machine reference direction
Execute cutting program
Monitor cut quality during the run — inspect first parts for edge quality and dimensions
Check blade condition at regular intervals
Record any deviations or quality issues
Remove cut parts carefully, maintaining backing paper until layup
Apply ply identification labels (ply number, orientation, material lot)
Kit parts in layup sequence order
Record actual material usage and remnant dimensions
Return unused prepreg to cold storage immediately
Update out-time record
Store remnants with dimensions recorded for future nesting
Not all composite material cutting machines are equally suited for prepreg. When evaluating equipment for prepreg cutting applications, look for these specific capabilities:
Feature | Why It Matters for Prepreg |
High-quality vacuum hold-down | Prevents material movement on tacky, flexible prepreg |
Coated blade compatibility | Enables use of PTFE or TiN coated blades for tacky materials |
Variable cutting speed control | Allows optimization for different prepreg types and thicknesses |
Integrated nesting software | Manages fiber orientation, yield, and out-time efficiency |
Conveyor or flatbed table | Flatbed preferred for prepreg to maintain vacuum integrity |
Marking capability | Enables ply ID and assembly mark printing during cutting |
Cold cutting process | Mandatory — no heat generation at cut zone |
Before purchasing a prepreg cutting machine, ask the following:
Can you demonstrate cutting on my specific prepreg material? Any reputable manufacturer should offer sample testing on your actual materials before purchase.
What blade types and coatings are available for high-tack prepregs?
How does the vacuum hold-down system perform at the edges of the cutting area?
Does the nesting software enforce fiber orientation constraints?
What is the recommended maintenance schedule for the vacuum system and cutting table?
What training and support do you provide for prepreg cutting setup and optimization?
Shilai's technical team works directly with customers to configure prepreg cutting solutions for their specific materials, production volumes, and quality requirements — including sample cutting tests before any purchase commitment.
Cutting sticky prepreg materials accurately is achievable — but it requires a systematic approach that addresses every variable in the process: blade selection, vacuum fixation, temperature control, cutting speed, path optimization, and nesting efficiency.
The fundamental requirements are clear:
Cold cutting only — oscillating knife is the correct technology; laser and routing are not suitable
Purpose-built blade geometry — coated blades for tacky materials, matched to the specific resin system
Robust vacuum hold-down — consistent fixation across the full cutting area
Controlled environment — 18–22°C room temperature, material conditioned to room temperature before cutting
Intelligent nesting — fiber orientation compliance, yield optimization, and out-time management
Systematic process discipline — blade inspection, temperature monitoring, and quality checks throughout each production run
When these elements are in place, a well-configured CNC composite cutting machine delivers consistent, accurate prepreg cuts at production speed — with the material yield, traceability, and part quality that aerospace, motorsport, and advanced composite manufacturing demand.
Tell us your prepreg material type, resin system, typical ply count, and production volume — and our technical team will recommend the right cutting configuration for your application.
Request a Free Prepreg Cutting Sample Test →
No. Laser cutting generates heat that initiates resin curing at the cut edge, alters material properties, and produces toxic fumes from the resin system. Prepreg must be cut using cold mechanical processes — CNC oscillating knife cutting is the industry-standard method for prepreg in aerospace and motorsport manufacturing.
Use PTFE-coated or TiN-coated blades, which significantly reduce resin adhesion to the blade surface. Maintain room temperature at 18–22°C to minimize resin tackiness. Set cutting speed at the optimal level for your material — too slow increases blade contact time and resin buildup. Replace blades on a regular schedule before buildup becomes a problem.
No. Keep the backing paper (release liner) in place during cutting. It protects the cutting table surface, helps maintain vacuum seal integrity, and prevents the prepreg from adhering directly to the table. Remove the backing paper only at the layup stage.
Most prepreg manufacturers recommend processing at 18–22°C (64–72°F). This temperature range balances handleability (the material is flexible enough to lie flat) with tackiness control (the resin is not so soft that it aggressively fouls the blade). Always check the specific temperature recommendations in your prepreg material data sheet.
For multi-ply cutting, ensure all plies are properly aligned and the vacuum hold-down is fully engaged before starting the cut. Reduce cutting speed for thicker stacks to maintain blade control. Use CNC-programmed cutting paths rather than manual guidance, and verify the first parts of each run against the design dimensions before proceeding with the full batch.
Out-time is the maximum time a prepreg material can remain at room temperature before the resin advances beyond its usable working window. Typical out-times range from 10 to 30 days depending on the resin system. Efficient cutting — using intelligent nesting to minimize the time a roll is open — preserves out-time for the layup process. Always record out-time start when removing material from cold storage.
Yes. Modern CNC composite cutting machines can process both prepreg and dry fabrics with a blade change and parameter adjustment. This flexibility is valuable for manufacturers who work with both material types. However, for high-volume dedicated prepreg production, a machine configured specifically for prepreg — with optimized vacuum hold-down, blade systems, and nesting software — will deliver better results than a general-purpose machine.
Intelligent nesting improves prepreg cutting in three ways: it maximizes material yield on expensive prepreg rolls (typically 8–16% better than manual layouts), it enforces fiber orientation requirements for every part automatically, and it generates efficient cutting sequences that minimize the time a roll is open at room temperature — preserving out-time for the layup process.
