How to Cut Aramid and Kevlar Fabric Without Fuzzing or Fraying

Aramid fiber — sold under brand names including Kevlar®, Twaron®, and Technora® — is one of the most mechanically demanding materials in industrial cutting. Engineered specifically to resist penetration, abrasion, and tearing, aramid fabric defeats the very tools designed to cut it. Smooth blades skate across the surface. Scissors dull within minutes. Laser cutting chars the edges and releases toxic fumes. The result, in manual or poorly configured cutting operations, is the same every time: severe edge fuzzing, pulled fibers, inaccurate dimensions, and rapid tool wear.

For manufacturers producing ballistic vests, helmets, cut-resistant gloves, aerospace structural plies, or industrial protective apparel, this is not a minor inconvenience — it is a direct threat to product safety, quality certification, and production economics.

The good news is that aramid and Kevlar can be cut cleanly, accurately, and at production speed — but only with the right cutting technology, purpose-built blade geometry, and correctly configured machine parameters. This guide covers everything you need to know: why aramid is so difficult to cut, which technology solves the problem, and how to configure a CNC composite cutting machine for consistent, fray-free results.

Why Aramid and Kevlar Are So Difficult to Cut

The Material Science Behind the Challenge

Aramid fibers derive their exceptional mechanical properties from a highly ordered molecular structure of para-phenylene terephthalamide polymer chains, aligned parallel to the fiber axis and cross-linked by hydrogen bonds. This structure gives aramid:

• Tensile strength 5× greater than steel at the same weight

• Elastic modulus comparable to glass fiber but with far greater toughness

• Excellent resistance to cut, abrasion, and impact

• Low density (approximately 1.44 g/cm³ for Kevlar 29)

These are exactly the properties that make aramid valuable in ballistic protection, aerospace, and industrial safety applications. They are also exactly the properties that make it resist cutting.

When a conventional smooth blade contacts aramid fabric, the fibers do not sever cleanly. Instead, they deflect, stretch, and spring back — the blade pushes fibers aside rather than cutting through them. The result is:

• Fuzzing and fraying: Fibers pulled from the weave at cut edges, creating loose fiber ends that compromise edge integrity

• Fiber pullout: Entire fiber bundles displaced from the weave structure, weakening the material near the cut line

• Dimensional inaccuracy: Fibers that deflect rather than cut cause the actual cut line to deviate from the programmed path

• Rapid blade wear: The extreme hardness and toughness of aramid fibers abrades cutting edges far faster than most other technical textiles

Why Standard Cutting Methods Fail on Aramid

The fundamental problem is that aramid fibers must be mechanically severed — not melted, not pushed aside, but individually cut — to achieve a clean, fray-free edge. This requires a blade geometry specifically designed for the task.

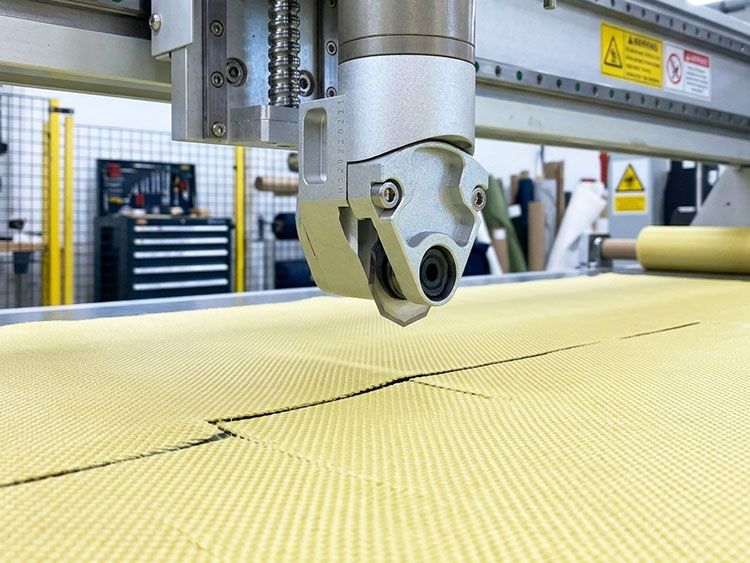

The Correct Cutting Technology: CNC Serrated Blade Cutting

Why a Serrated Blade Changes Everything

The breakthrough in aramid cutting comes from blade geometry. A specialized serrated (toothed) blade, operating under CNC control with precise speed and pressure parameters, uses a micro-sawing action that individually severs each high-tenacity fiber as the blade passes through the material.

Unlike a smooth blade that pushes fibers aside, each tooth of a serrated blade catches and cuts individual fiber bundles in sequence. The cumulative effect is a clean, fray-free cut edge — even on the most demanding ballistic-grade aramid fabrics.

This is the core technology behind Shilai's SL1625AF Aramid Fabric Kevlar Cutting Machine, which was developed specifically to address the challenges of cutting aramid and Kevlar in ballistic protection, defense, and protective apparel manufacturing.

Serrated Blade vs. Smooth Blade: Head-to-Head Comparison

CNC Automation: Why Manual Cutting Cannot Scale

Even with the correct serrated blade, manual cutting of aramid is impractical at production scale:

• Consistency: Manual cutting cannot maintain the consistent blade pressure, speed, and path required for repeatable fray-free edges across a production run

• Speed: Manual cutting of complex ballistic ply shapes is 5–10× slower than automated CNC cutting

• Accuracy: Multi-layer ballistic kits require every ply to be dimensionally identical — manual cutting cannot achieve this at production volume

• Traceability: Defense and aerospace customers require documented cutting records; manual processes cannot provide this

CNC automation solves all of these problems simultaneously, delivering consistent quality, production speed, and full process traceability.

6 Critical Factors for Fray-Free Aramid Cutting

Factor 1: Serrated Blade Specification and Maintenance

The serrated blade is the single most important variable in aramid cutting quality. Blade specification must be matched to the specific aramid material being cut.

Key blade parameters for aramid:

• Tooth pitch: Finer tooth pitch for tightly woven fabrics; coarser pitch for loosely woven or thick materials

• Tooth geometry: Asymmetric tooth profiles provide better fiber engagement on directional weaves

• Blade material: High-speed steel (HSS) or carbide-tipped blades for maximum wear resistance on aramid

• Blade coating: Titanium nitride (TiN) or diamond-like carbon (DLC) coatings extend blade life significantly on abrasive aramid fibers

Blade maintenance protocol:

Aramid's abrasive nature means blade wear is faster than on most other technical textiles. Establish a clear blade inspection and replacement schedule:

1. Inspect blade teeth under magnification at regular intervals — every 2–4 hours of cutting time on heavy ballistic aramid

2. Replace blades at the first sign of tooth rounding or chipping — a dull serrated blade frays rather than cuts

3. Never attempt to resharpen serrated blades in the field — replace with new blades

4. Track blade life per material type to establish a predictive replacement schedule

Factor 2: Vacuum Hold-Down — The Foundation of Dimensional Accuracy

Aramid fabric presents a specific fixation challenge: its smooth, slippery surface resists staying in position on a cutting table. Without robust vacuum hold-down, even a perfectly configured serrated blade will produce inaccurate cuts as the material shifts during cutting.

Vacuum hold-down requirements for aramid:

• High-power vacuum pump: Aramid's smooth surface has lower friction than woven carbon fiber or fiberglass — higher vacuum pressure compensates for this

• Full-area coverage: Vacuum must be active across the entire cutting area, including edges where aramid tends to lift

• Consistent table surface: Worn areas, holes, or contamination on the cutting table surface reduce vacuum effectiveness — regular inspection is essential

• Multi-layer fixation: For ballistic kits cut as multi-layer stacks, vacuum must penetrate through all layers to the table surface

The SL1625AF incorporates a high-power vacuum system specifically configured for the fixation challenges of slippery aramid fabrics, maintaining consistent hold-down pressure across the full 1600mm × 2500mm working area.

Practical tip — fabric tension management:
Aramid woven fabrics can carry significant internal tension from the weaving process. Before activating vacuum hold-down, allow the fabric to relax flat on the cutting table for 2–3 minutes. This prevents the fabric from contracting after cutting, which would cause cut parts to be undersized.

Factor 3: Cutting Speed Optimization

Cutting speed must be carefully matched to the aramid material type, weave structure, and layer count. The optimal speed balances cut quality, blade life, and production throughput.

General speed guidelines for aramid cutting:

Note: These are starting-point guidelines. Establish optimal parameters through sample testing on your specific material and weave specification.

The speed-quality trade-off:

• Too fast: The serrated blade cannot complete its micro-sawing action on each fiber bundle — fibers are pushed rather than cut, increasing fraying

• Too slow: Extended blade contact time increases friction-generated heat and reduces throughput without proportional quality improvement

The SL1625AF supports a maximum cutting speed of ≤1,500 mm/s, with full CNC-programmable speed control that allows speed variation within a single cutting path — for example, slowing automatically at tight curves and returning to full speed on straight sections.

Factor 4: Cutting Path Programming for Aramid Weaves

The direction in which the blade travels relative to the aramid weave structure significantly affects edge quality. This is particularly important for woven aramid fabrics where fiber bundles run in defined warp and weft directions.

Cutting path best practices for aramid:

• Avoid cutting at 45° to fiber orientation where possible: Cutting diagonally across fiber bundles increases the number of fibers the blade must sever simultaneously, increasing resistance and fraying risk

• Program smooth curves rather than sharp corners: Sharp directional changes cause the blade to momentarily stall and drag, creating fray points at corners

• Optimize entry and exit points: Position blade entry and exit away from critical part edges — the first and last millimeters of a cut are most prone to fraying

• Use reduced speed at corners: Program speed reduction (20–30%) when approaching tight curves, then return to full speed on straight sections

• Consistent blade orientation: Ensure the blade angle is correctly maintained relative to the cutting direction throughout the entire path

Factor 5: Multi-Layer Cutting Strategy

Many aramid applications — particularly ballistic protection — require cutting multiple identical plies simultaneously. Multi-layer cutting increases throughput but introduces additional challenges for edge quality.

Multi-layer cutting guidelines for aramid:

Layer count limits:

• Standard woven aramid: up to 8 layers is typically achievable with good edge quality using a correctly specified serrated blade

• Heavy ballistic aramid (> 400 g/m²): limit to 4–6 layers to maintain cut quality

• UD aramid: limit to 4 layers; UD materials are more sensitive to cutting force than woven fabrics

Stack preparation:

• Align all layers with consistent fiber orientation before loading

• Ensure all layers are flat and free of wrinkles before activating vacuum hold-down

• For very slippery fabrics, use a thin paper interleave between layers to improve stack stability

Speed adjustment for multi-layer stacks:

Reduce cutting speed by approximately 15–20% per additional layer beyond the first two. This maintains the micro-sawing action through the full stack depth.

Quality verification:

Always inspect the bottom layer of a multi-layer cut — this is where edge quality is most likely to degrade first. If the bottom layer shows fraying, reduce layer count or cutting speed before proceeding with the full production run.

Factor 6: Intelligent Nesting for Aramid — Yield and Orientation Management

Aramid fabrics are expensive materials — ballistic-grade Kevlar can cost $30–$120 per meter depending on areal weight and specification. Intelligent nesting directly impacts the economics of every production run.

Why nesting matters more for aramid than most materials:

• Material cost: Even a 5% improvement in material yield on high-cost ballistic aramid represents significant cost savings at production volume

• Fiber orientation compliance: Ballistic and structural aramid parts have strict fiber orientation requirements — nesting software enforces these automatically, eliminating the risk of incorrectly oriented plies

• Ballistic kit sequencing: For multi-ply ballistic kits, nesting software can sequence cuts to produce plies in layup order, reducing handling time and the risk of ply misidentification

• Remnant utilization: Intelligent nesting tracks remnant dimensions and incorporates leftover material into future jobs, reducing waste on expensive material

The SL1625AF includes integrated intelligent nesting software that handles all of these requirements — enforcing orientation constraints, optimizing yield, and generating efficient cutting sequences for ballistic kit production.

For a deeper look at how nesting software maximizes material yield across composite cutting operations, see our guide on intelligent nesting for composite cutting.

Common Aramid Cutting Problems and Solutions

Problem 1: Severe Edge Fuzzing

Symptoms: Loose fiber ends at cut edges, visible fraying, fibers pulled from the weave structure

Causes:

• Wrong blade type (smooth blade instead of serrated)

• Dull serrated blade with rounded or chipped teeth

• Cutting speed too high for material weight

• Insufficient vacuum hold-down allowing material movement

Solutions:

• Switch to a purpose-built serrated blade for aramid

• Replace blade — inspect teeth under magnification; replace at first sign of wear

• Reduce cutting speed by 20–30% and test edge quality

• Check and restore vacuum hold-down pressure; inspect table surface for damage

Problem 2: Dimensional Inaccuracy

Symptoms: Cut parts consistently undersized or oversized; dimensions drift across a production run

Causes:

• Material shifting during cutting (insufficient vacuum)

• Fabric tension not released before cutting

• Blade deflection from worn or incorrect blade

• Thermal expansion of material in warm cutting environment

Solutions:

• Verify vacuum system pressure and table surface integrity

• Allow fabric to relax flat for 2–3 minutes before activating vacuum and cutting

• Replace blade; verify correct blade specification for material

• Maintain cutting room temperature at 18–22°C

Problem 3: Rapid Blade Wear

Symptoms: Blade requires replacement far more frequently than expected; cut quality degrades rapidly within a single production run

Causes:

• Using uncoated blades on abrasive aramid

• Cutting speed too slow (extended contact time increases abrasive wear)

• Incorrect blade material specification for aramid

Solutions:

• Specify TiN or DLC coated blades for aramid applications

• Optimize cutting speed — avoid unnecessarily slow speeds

• Confirm blade material specification with your machine supplier; HSS or carbide-tipped blades are recommended for aramid

Problem 4: Inconsistent Quality Between Top and Bottom Layers in Multi-Layer Stacks

Symptoms: Top layers cut cleanly; bottom layers show fraying or dimensional deviation

Causes:

• Layer count exceeding blade capability for the material weight

• Vacuum not penetrating to bottom layers

• Blade deflection increasing through the stack depth

Solutions:

• Reduce layer count; test quality at each layer count to establish the reliable limit for your material

• Ensure vacuum is fully engaged before cutting; use a permeable interleave if needed

• Reduce cutting speed for deep stacks

Problem 5: Fiber Pullout at Corners and Curves

Symptoms: Fraying concentrated at corners, curves, and direction changes in the cutting path

Causes:

• Cutting speed not reduced at corners

• Sharp programmed corners rather than smooth curves

• Blade orientation not maintained through direction changes

Solutions:

• Program speed reduction (20–30%) at all corners and tight curves

• Replace sharp programmed corners with small radius curves where part geometry allows

• Verify blade orientation control is active in the CNC program

Aramid Cutting Workflow: Step-by-Step Best Practice

For manufacturers setting up or optimizing an aramid cutting operation, the following workflow represents industry best practice:

Step 1: Material Preparation

• Inspect aramid roll for damage, contamination, or weave distortion

• Record roll ID, material specification, and areal weight

• Allow roll to reach room temperature if stored in a cool environment

• Identify fiber orientation reference direction relative to roll edge

Step 2: Machine Setup

• Install correct serrated blade for the specific aramid material and layer count

• Verify vacuum hold-down system pressure and table surface condition

• Load cutting program from nesting software — confirm fiber orientation alignment

• Set cutting speed and oscillation frequency for the material specification

Step 3: Material Loading

• Unroll aramid onto cutting table

• Allow fabric to relax flat for 2–3 minutes before activating vacuum

• Activate vacuum hold-down

• Verify material is flat, fully adhered, and fiber orientation is correctly aligned

Step 4: First Article Inspection

• Cut a single test part before proceeding with the full production run

• Inspect cut edges under good lighting for fraying, fuzzing, and fiber pullout

• Verify dimensions against the design specification

• Adjust speed, blade pressure, or vacuum if required before full production

Step 5: Production Cutting

• Execute the full cutting program

• Monitor blade condition at regular intervals — inspect teeth every 2–4 hours on heavy aramid

• Inspect bottom-layer edge quality periodically in multi-layer stacks

• Record any deviations or quality issues

Step 6: Part Identification and Kitting

• Apply ply identification labels immediately after cutting (ply number, orientation, material lot)

• Kit parts in assembly sequence order for ballistic layup

• Inspect final parts for edge quality before releasing to assembly

Choosing the Right Aramid Cutting Machine

Not all composite material cutting machines are equally suited for aramid. When evaluating equipment for aramid and Kevlar cutting applications, look for these specific capabilities:

Essential Features for Aramid Cutting

SL1625AF Key Specifications at a Glance

Questions to Ask Your Machine Supplier

Before purchasing an aramid cutting machine, ask the following:

1. Can you demonstrate cutting on my specific aramid material and weave specification? Any reputable manufacturer should offer sample testing on your actual materials before purchase.

2. What serrated blade specifications are available for different aramid weights and weave structures?

3. How does the vacuum hold-down system perform on smooth aramid fabrics at the edges of the cutting area?

4. Does the nesting software enforce fiber orientation constraints for ballistic ply sequencing?

5. What is the recommended blade replacement interval for my specific material?

6. What training and application support do you provide for aramid cutting setup?

Shilai's technical team works directly with customers to configure aramid and Kevlar cutting solutions for their specific materials, production volumes, and quality requirements — including sample cutting tests before any purchase commitment.

Aramid vs. Carbon Fiber vs. Fiberglass: How Cutting Requirements Differ

Manufacturers who process multiple composite materials often ask how aramid cutting requirements compare to carbon fiber and fiberglass. The differences are significant:

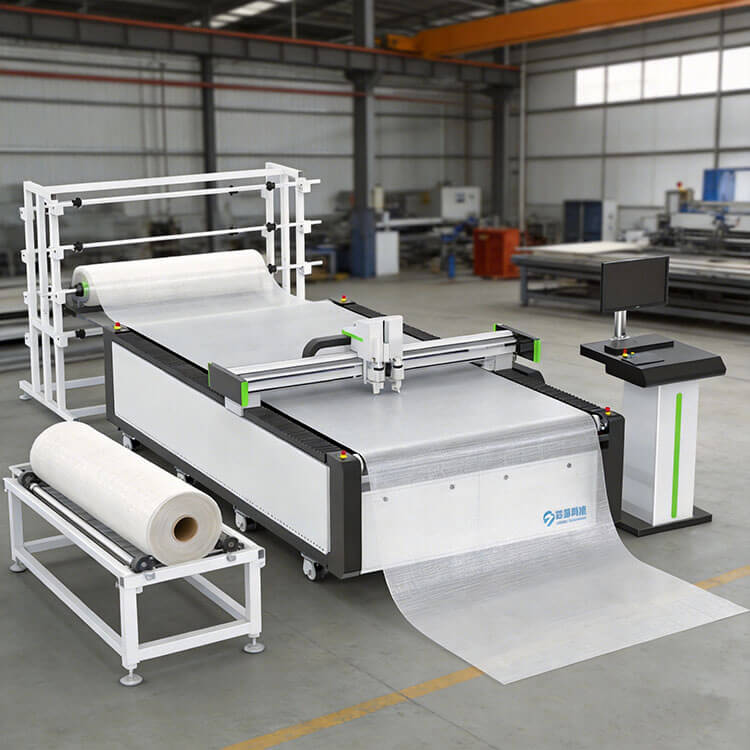

For manufacturers cutting both carbon fiber and aramid, a machine platform that supports multiple blade types — such as the composite material cutting machine range from Shilai — allows the same CNC platform to handle both materials with a blade change and parameter adjustment.

For a detailed comparison of cutting technologies across all composite material types, see our guide: Oscillating Knife vs. Laser vs. Water Jet for Composite Cutting.

Conclusion

Cutting aramid and Kevlar fabric without fuzzing or fraying is entirely achievable — but it requires a systematic approach that addresses every variable in the process: blade geometry, vacuum fixation, cutting speed, path programming, and nesting efficiency.

The fundamental requirements are clear:

• Specialized serrated blade — the only blade geometry that severs high-tenacity aramid fibers cleanly; smooth blades will always produce fraying

• High-power vacuum hold-down — compensates for aramid's smooth surface and prevents material movement during cutting

• CNC-programmable speed control — enables speed optimization for different material weights and path geometries

• Intelligent nesting — enforces fiber orientation compliance and maximizes yield on expensive ballistic-grade material

• Systematic process discipline — first article inspection, blade monitoring, and quality checks throughout each production run

When these elements are in place, a well-configured CNC aramid cutting machine delivers consistent, fray-free cuts at production speed — with the dimensional accuracy, traceability, and material yield that ballistic protection, defense, and aerospace manufacturing demand.

Tell us your aramid material specification, areal weight, layer count, and production volume — and our technical team will recommend the right cutting configuration for your application.

Request a Free Aramid Cutting Sample Test →

Frequently Asked Questions

Can you cut Kevlar with a laser?

No. Laser cutting is not suitable for Kevlar or any aramid fabric. Aramid does not melt cleanly — it chars, and the thermal degradation releases hydrogen cyanide gas, which is highly toxic. Additionally, the heat from laser cutting alters the mechanical properties of the aramid fibers at the cut edge, which can compromise ballistic performance. CNC serrated blade cutting is the correct technology for aramid.

Why does aramid fray so badly when cut with normal scissors or blades?

Aramid fibers have extremely high tensile strength and resist being severed by smooth cutting edges. When a smooth blade contacts aramid, the fibers deflect and spring back rather than being cut. This causes fibers to be pulled from the weave structure rather than cleanly severed, producing the characteristic fuzzing and fraying. A specialized serrated blade uses a micro-sawing action that individually severs each fiber bundle, eliminating this problem.

What is the difference between Kevlar, Twaron, and Technora?

All three are commercial brand names for para-aramid fibers. Kevlar® is manufactured by DuPont; Twaron® by Teijin; Technora® is a copolymer aramid also by Teijin with enhanced chemical resistance. All three share similar cutting challenges — high tensile strength, resistance to smooth blade cutting, and tendency to fray — and all are best cut using a specialized serrated blade on a CNC cutting machine.

How many layers of aramid can be cut at once?

For standard woven aramid, up to 8 layers can typically be cut simultaneously with good edge quality using a correctly specified serrated blade. For heavy ballistic-grade aramid (> 400 g/m²), limit to 4–6 layers. Always inspect the bottom layer of a multi-layer stack — this is where edge quality degrades first. Reduce layer count or cutting speed if the bottom layer shows fraying.

How often do blades need to be replaced when cutting aramid?

Aramid is highly abrasive and blade wear is faster than on most other technical textiles. Blade replacement frequency depends on the material weight, weave tightness, and layer count. As a starting guideline, inspect blade teeth under magnification every 2–4 hours of cutting time on heavy ballistic aramid, and replace at the first sign of tooth rounding or chipping. Coated blades (TiN or DLC) last significantly longer than uncoated blades on aramid.

Can the same machine cut both aramid and carbon fiber?

Yes. Modern CNC composite cutting machines support multiple blade types, allowing the same machine platform to cut aramid (with a serrated blade) and carbon fiber or fiberglass (with a straight oscillating blade) with a blade change and parameter adjustment. This flexibility is valuable for manufacturers who process multiple composite material types.

What cutting accuracy is achievable on aramid with a CNC machine?

The SL1625AF achieves a repeatable cutting tolerance of ±0.1mm across the full 1600mm × 2500mm working area, driven by Japanese servo motors and Taiwan guide rails. This level of accuracy is essential for ballistic protection applications where every ply in a multi-layer kit must be dimensionally identical to ensure proper fit and performance in the finished product.

Does fiber orientation matter when cutting aramid?

Yes, significantly. Ballistic and structural aramid parts have strict fiber orientation requirements that directly affect the mechanical performance of the finished product. CNC cutting with intelligent nesting software enforces fiber orientation constraints automatically — every part is cut at the correct orientation relative to the roll direction, eliminating the risk of incorrectly oriented plies that can compromise ballistic performance.
