Author: Win Zhang Publish Time: 2026-04-20 Origin: SLCNC
If you've ever struggled with burnt edges on leather, melted foam, or inconsistent gasket cuts, you understand why the oscillating knife cutting machine has become essential for modern manufacturing. Unlike laser or waterjet systems that rely on heat, this technology uses mechanical precision to deliver clean, accurate cuts without thermal damage.
As the industry shifts toward digital manufacturing, more factories are discovering that a CNC knife cutter offers the flexibility, speed, and quality their operations demand. Whether you're cutting gaskets, foam packaging, automotive interiors, or composite materials, understanding this technology could transform your production workflow.
In this comprehensive guide, we'll explore how oscillating knife cutting machines work, their key advantages over other cutting methods, the materials they handle best, and how to select the right system for your specific needs.

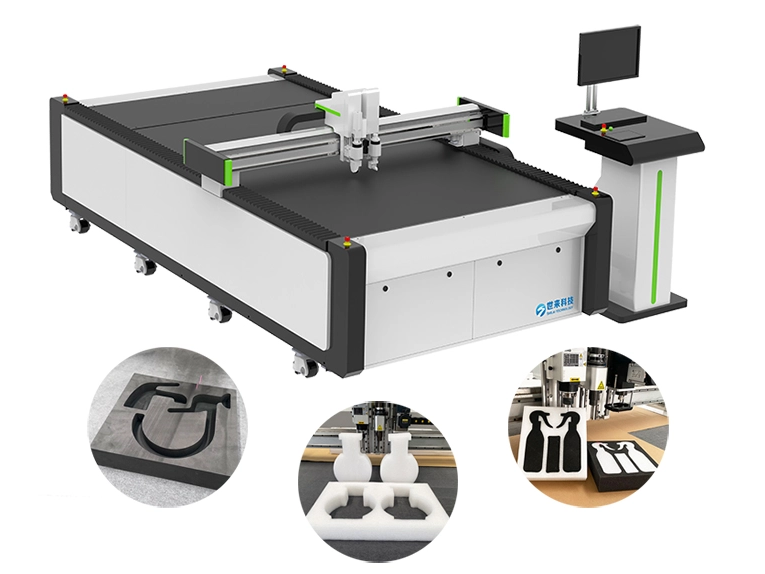

An oscillating knife cutting machine is a computer-controlled cutting system that uses a high-frequency vibrating blade to slice through flexible and semi-rigid materials. Unlike laser cutters that use focused light beams or waterjet systems that rely on high-pressure water, an oscillating knife cutter operates as a cold mechanical process—meaning no heat, no burning, and no material degradation during cutting.
The technology works through rapid blade oscillation. The blade moves up and down at frequencies typically ranging from 6,000 to 12,000 cycles per minute, allowing it to penetrate materials with minimal resistance. Combined with precision X-Y axis movement controlled by the CNC system, this creates clean, accurate cuts that follow even the most complex patterns.
Modern oscillating knife cutting machines from manufacturers like SLCNC feature advanced servo motors, intelligent nesting software, and multi-tool heads that can handle diverse cutting requirements in a single workflow. This versatility makes them ideal for industries requiring rapid prototyping, custom orders, and high-mix production environments.
A typical CNC oscillating knife cutting machine includes several essential components that work together to deliver precision results:

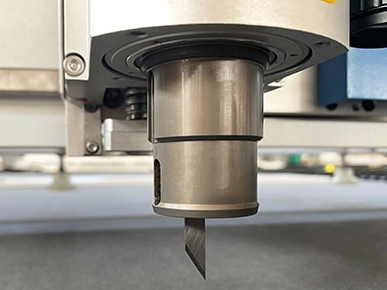

The Cutting Head: Houses the oscillating blade mechanism and supports multiple tool options including oscillating knives, drag knives, bevel tools, and marking pens. Advanced systems like those from SLCNC allow quick tool changes to adapt to different materials and cutting requirements.
Vacuum Table: Holds materials securely in place during cutting operations. Modern systems feature multi-zone vacuum adsorption that can concentrate suction on specific areas, improving efficiency when cutting small parts or narrow materials.
CNC Control System: Coordinates blade movement along X, Y, and Z axes with precision down to ±0.1mm. The system accepts digital files in standard formats like DXF, PLT, and AI, allowing seamless integration with existing design workflows.
Nesting Software: Optimizes material usage by automatically arranging multiple parts on sheet materials. This intelligent nesting can improve material utilization by up to 30%, significantly reducing waste and production costs.
Drive System: High-quality oscillating knife cutting machines use premium components such as Japanese Panasonic servo motors and Taiwanese guide rails to ensure long-term reliability and consistent accuracy.
Manufacturers across diverse industries choose oscillating knife technology for several compelling reasons that directly impact their bottom line and product quality.
The most significant advantage of the oscillating knife cutting machine over laser or plasma cutting is its cold cutting process. Since no heat is generated during cutting, materials remain intact without thermal damage. This is particularly critical for:
White foam and light-colored materials that would yellow or discolor under heat
Leather and synthetic leather where burn marks ruin appearance and reduce value
Heat-sensitive adhesives that would melt or lose bonding properties
Elastomers and rubber that can degrade or release toxic fumes when burned
Composite materials that may delaminate under thermal stress
For industries where product appearance directly affects pricing, such as premium leather goods or white foam packaging, the absence of heat damage can mean the difference between profitable and rejected parts.
The mechanical cutting action of an oscillating knife produces clean, sharp edges without the charring, melting, or hardened edges associated with thermal cutting methods. This superior edge quality reduces or eliminates the need for secondary finishing operations, saving both time and labor costs.
In gasket manufacturing, clean edges are essential for proper sealing performance. In leather and textile cutting, edge quality directly impacts sewing operations and final product appearance. The precision of a CNC knife cutter ensures consistent quality across thousands of parts, shift after shift.
While laser cutters often struggle with thicker materials, oscillating knife cutting machines handle substantial thickness ranges with ease. Depending on blade configuration and material density, these machines can cut:
Soft foams up to 100mm thick
Multi-layer gaskets and rubber sheets up to 20-50mm
Leather and textile stacks up to 20mm
Composite materials based on density and construction
This thickness capability makes the oscillating knife cutting machine the go-to solution for industries like packaging, automotive interiors, and industrial equipment where materials vary significantly in profile.
Traditional die cutting requires expensive physical tooling for each product design. Every design change means waiting for new dies, budget approval, and machine downtime. In contrast, a digital flatbed cutter controlled by nesting software allows instant changeovers.
Simply update your CAD file, adjust nesting parameters if needed, and start cutting. This flexibility is invaluable for:
Prototype development where designs evolve rapidly
Custom orders that require unique specifications
High-mix production environments with frequent job changes
Just-in-time manufacturing where quick response matters
SLCNC reports that many customers achieve ROI within 6-18 months primarily through reduced tooling costs and faster turnaround times enabled by digital cutting workflows.
The oscillating knife cutting machine excels across an impressive range of flexible and semi-rigid materials. Understanding which materials work best helps ensure you select the right machine and configuration for your production needs.
Oscillating knife cutting machines are extensively used in foam processing for:
EVA, EPE, and PU foams for packaging inserts
Polyethylene foam for protective packaging
Phenolic foam for thermal insulation
Sponge rubber for seals and gaskets
Sports foam for fitness equipment
The clean cuts achieved without melting or fusing foam edges make oscillating knife technology the preferred choice for manufacturers where appearance and precision matter.
Industrial rubber cutting applications include:
NBR, EPDM, and silicone rubber for seals and gaskets
PTFE and flexible graphite for chemical-resistant applications
Neoprene and CR rubber for industrial uses
Engineered elastomers for specialized applications
Rubber materials present unique cutting challenges due to their resilience and potential for compression. The oscillating knife's high-frequency blade motion handles these materials cleanly without crushing or distorting edges.
Leather cutting represents a major application area for oscillating knife technology:
Genuine leather for footwear, bags, and upholstery
PU leather and synthetic leather for automotive interiors
Suede and nubuck for premium applications
Multilayer leather stacks for efficient production
The absence of burn marks or discoloration preserves leather value, while the precision of CNC control maximizes yield from expensive hide materials. SLCNC's leather cutting machines feature intelligent nesting software that can improve material utilization by up to 30%. Discover our gasket cutting machines for leather processing.
Modern composite materials present unique cutting challenges:
Carbon fiber fabrics for aerospace and automotive
Glass fiber materials for insulation and panels
Aramid fiber (non-asbestos) for high-temperature applications
Laminated materials for specialized requirements
The cold cutting process prevents the delamination and fiber fraying often associated with thermal cutting of composite materials.
Packaging industry applications include:
Corrugated cardboard for boxes and protectors
Paperboard and grey board for templates
Kraft paper and honeycomb materials for eco-friendly packaging
Cushioning paper for cushioning systems
Die-less cutting with an oscillating knife eliminates the cost and lead time of traditional steel rule dies, making it ideal for short runs, prototypes, and customized packaging.
Fabric cutting applications span:
Industrial textiles for filtration and reinforcement
Non-woven fabrics for medical and hygiene products
Drapery fabrics including blackout and zebra blinds
Carpet and floor underlayment
The ability to cut multiple layers simultaneously improves efficiency while maintaining accuracy throughout the fabric stack.
The versatility of oscillating knife cutting machines enables adoption across numerous manufacturing sectors. Understanding real-world applications helps identify opportunities in your own operations.
Automotive manufacturers and suppliers use CNC knife cutter technology for:
Seat leather and upholstery cutting with minimal waste
Floor carpet and mats for custom and replacement markets
Acoustic insulation panels that reduce vehicle noise
Door panel materials and trim components
EV battery pack seals requiring precision and cleanliness
The automotive industry's shift toward electric vehicles has increased demand for precision-cut seals, gaskets, and insulation components, driving adoption of oscillating knife technology throughout the supply chain.
Gasket production represents one of the largest application areas for oscillating knife cutting machines. Modern gasket manufacturers benefit from:
Die-less production eliminating expensive tooling
Complex geometries achievable without specialized dies
Kiss-cutting capabilities for adhesive-backed products
Material versatility handling diverse sealing media
Quick prototyping for custom flange requirements
SLCNC's gasket cutting solutions support materials ranging from 0.2mm thin gasket paper to 30mm thick rubber composites, addressing requirements across automotive, HVAC, oil and gas, and industrial equipment sectors.
Packaging manufacturers utilize oscillating knife cutting machines for:
Prototype boxes and samples without die costs
Custom inserts for tools, electronics, and consumer products
Point-of-purchase displays requiring intricate designs
Signage and backing boards for retail environments
Template production for production die manufacturing
The ability to produce small quantities economically makes digital cutting essential for packaging converters serving fast-moving consumer goods companies.
Sound absorption and architectural applications include:
PET felt panels for acoustic wall treatments
Mineral wool and fiberglass for building insulation
Decorative ceiling tiles for commercial interiors
Wall panel systems for design applications
These materials benefit from clean cuts without the fiber flying and dust generation associated with saw cutting, improving both workplace conditions and final product quality.
Selecting the appropriate oscillating knife cutting machine requires evaluating several factors specific to your production requirements.
Machine table size determines the maximum part dimensions you can cut. Common configurations include:
1610 format (1600 x 1000mm) for standard production
1625 format (1600 x 2500mm) for larger parts
1630 format (1600 x 3000mm) for industrial applications
Custom sizes available for specific requirements
Consider not only your current part sizes but also anticipated future needs when selecting table dimensions.
Cutting speed directly impacts throughput and production costs. When evaluating speed specifications, consider:
Maximum traverse speeds indicate machine capability
Effective cutting speed during actual cutting operations
Acceleration rates affect overall cycle time
Multi-head options can double throughput for identical parts
SLCNC's oscillating knife cutting machines feature Japanese servo motors that deliver industry-leading speed and stability for continuous production operations.
Different applications have varying precision requirements:
Standard precision (±0.2-0.5mm) suitable for packaging and display
High precision (±0.1mm) for gaskets, seals, and automotive parts
Ultra-precision (±0.05mm) for specialized technical applications
Consider not only initial accuracy but also long-term repeatability over thousands of parts and years of operation.
Modern multi-tool cutting heads offer versatility through:
Pneumatic oscillating tools for general purpose cutting
Electric oscillating tools for thicker materials
Drag knives for vinyl and thin materials
Bevel cutting tools for V-grooves and chamfers
Kiss-cut tools for adhesive-backed materials
Marking pens for part identification
Select a system that supports the tools your current and future products require.
Nesting software capabilities affect both material utilization and operational efficiency:
Automatic nesting optimizes sheet utilization
Grain rules ensure proper orientation for anisotropic materials
Tab and bridges hold small parts in place
ERP/MES integration streamlines production workflows
Evaluate software compatibility with your existing design tools and production management systems.
Understanding the true cost of ownership helps justify investment and ensure sustainable operation.
The oscillating knife cutting machine uses straightforward consumables:
Cutting blades in various configurations for different materials
Felt underlay protecting the cutting table
Vacuum filters maintaining suction performance
Lubricants for mechanical components
Unlike laser systems requiring expensive tube replacements or waterjet systems consuming abrasive materials, blade replacement represents the primary ongoing cost for oscillating knife machines.
Daily and weekly maintenance typically includes:
Blade inspection and replacement as needed
Table surface cleaning to maintain vacuum efficiency
Guide rail lubrication for smooth operation
Software updates for optimal performance
Most operators can perform routine maintenance in under 15 minutes daily, minimizing impact on production schedules.
When comparing cutting technologies, consider total cost of ownership:
Lower equipment cost compared to laser or waterjet
Reduced consumables expense versus die tooling or laser tubes
Minimal energy consumption relative to thermal systems
Minimal floor space requirements versus alternative technologies
SLCNC reports that most customers achieve ROI within 6-18 months through combined savings on tooling, consumables, labor, and material waste.
Jinan Shilai Technology Equipment Co., Ltd. stands as a leading CNC oscillating knife cutting machine manufacturer with over a decade of experience serving global markets. Our commitment to quality and customer success drives every machine we produce.
Factory Direct Advantage: As a manufacturer rather than a trader, SLCNC provides direct access to engineering expertise without middleman markups. You work directly with the people who build your equipment.
Premium Components: Every SLCNC oscillating knife cutting machine features Japanese Panasonic servo motors and Taiwanese guide rails, ensuring reliable performance year after year.
Global Support Network: Our English-speaking technical team provides lifetime support for your CNC knife cutter, whether you need troubleshooting assistance or process optimization guidance.
Complete Solutions: Beyond equipment, SLCNC offers comprehensive support including:
Material testing and process development
Custom machine configuration for specific applications
Operator training and documentation
Spare parts supply and preventive maintenance programs
Proven Track Record: With machines delivered to over 100 countries and an annual production capacity exceeding 1,000 units, SLCNC has the experience to support your manufacturing success.
Oscillating knife technology is designed for flexible and semi-rigid materials. Hard materials like metals, stone, glass, and ceramics require alternative cutting methods such as laser, waterjet, or mechanical sawing. Additionally, some extremely hard or abrasive materials may cause rapid blade wear.
While laser cutters may offer faster traverse speeds on thin materials, the effective production speed of oscillating knife cutting machines often matches or exceeds laser for most flexible material applications. More importantly, oscillating knife technology eliminates post-processing for burned edges, resulting in faster total part completion.
Modern nesting software accepts standard vector formats including DXF, DWG, PLT, AI, and PDF. This compatibility allows integration with virtually any CAD or design software without file conversion complications.
Yes. Advanced systems feature vision cameras that recognize printed registration marks, allowing precise cutting of pre-printed materials. This is essential for cutting pre-marked leather hides, printed packaging materials, and products requiring alignment with existing graphics.
SLCNC typically delivers standard configurations within 4-6 weeks of order confirmation. Custom configurations or larger orders may require additional time. We also offer expedited shipping for urgent requirements.
Modern oscillating knife cutting machines feature user-friendly interfaces designed for operators without extensive CNC experience. SLCNC provides comprehensive training including on-site installation, operator instruction, and remote support for ongoing education.
Written by Win Zhang , CEO
With over 6 years of dedicated focus on CNC oscillating knife cutting technology, Win Zhang has established SLCNC as a leading manufacturer of digital cutting solutions for flexible materials. His vision has helped thousands of manufacturers worldwide transition from traditional die-based cutting to efficient, cost-effective digital workflows. Under his leadership, SLCNC has grown to produce over 1,000 machines annually, serving customers in 100+ countries. Explore SLCNC's complete product line or connect on Youtube.
The oscillating knife cutting machine represents a fundamental shift from traditional die-based manufacturing toward flexible, efficient digital production. By eliminating expensive tooling, reducing material waste, and enabling rapid changeovers, this technology addresses the core challenges facing modern manufacturers.
Whether you're producing precision gaskets, cutting premium leather, manufacturing foam packaging, or processing composite materials, the advantages of cold mechanical cutting with intelligent nesting software can transform your operations. The combination of superior edge quality, material versatility, and cost efficiency makes oscillating knife technology the clear choice for most flexible material applications.
Ready to explore how an oscillating knife cutting machine can improve your production? Contact SLCNC today for a free consultation, material testing, or detailed quotation tailored to your specific requirements.
