How to Control Dust When Cutting Fiberglass and Insulation Panels

Every time a worker cuts fiberglass wool, mineral wool, rock wool, or rigid insulation board with a manual saw or angle grinder, the air fills with fine respirable fibers and particulates. These particles — many below 5 microns in diameter — are invisible to the naked eye, stay airborne for hours, and penetrate deep into the lungs. Prolonged exposure is linked to respiratory disease, skin and eye irritation, and in some fiber types, longer-term health risks.

For HVAC duct fabricators, building insulation manufacturers, and industrial panel processors, dust control is not optional. It is a legal obligation under occupational health regulations, a direct factor in worker retention, and increasingly a prerequisite for customer and contractor qualification.

The challenge is that fiberglass and insulation materials must be cut — and cut accurately — to produce duct panels, wall boards, pipe insulation, and acoustic panels to precise dimensions. The question is not whether to cut, but how to cut in a way that minimizes dust generation at source, contains what is generated, and protects workers throughout the process.

This guide covers the full picture: why fiberglass cutting generates so much dust, which cutting methods are worst and best for dust generation, how a CNC insulation panel cutting machine controls dust at source, and what additional measures complete a comprehensive dust management strategy.

Why Fiberglass and Insulation Cutting Generates Hazardous Dust

The Nature of Fiberglass and Mineral Wool Fibers

Fiberglass (glass wool) and mineral wool (rock wool, slag wool) are manufactured by spinning or drawing molten glass or mineral material into fine fibers, typically 3–15 microns in diameter. These fibers are then bonded with resin binders into mats, batts, or rigid boards.

When these materials are cut, the mechanical action of the cutting tool breaks individual fibers into shorter fragments. The resulting dust contains:

• Respirable fiber fragments: Pieces below 5 microns in diameter that bypass the upper respiratory tract and deposit in the lung alveoli

• Resin binder particles: Fine particulates from the phenolic or acrylic resin systems used to bond the fibers

• Silica particulates: In some mineral wool types, crystalline silica content creates additional respiratory hazard

• Fine glass particles: In fiberglass cutting, broken glass fiber tips are sharp enough to cause skin, eye, and respiratory irritation on contact

The quantity of dust generated depends critically on the cutting method. High-energy cutting methods — angle grinders, circular saws, reciprocating saws — fracture fibers violently and generate large volumes of fine dust. Low-energy cutting methods — sharp blades, oscillating knives — sever fibers cleanly with minimal fracture and dramatically lower dust generation.

Regulatory Context: What the Rules Require

Occupational health regulations in most major markets set binding exposure limits for fiberglass and mineral wool dust:

f/cc = fibers per cubic centimeter; f/ml = fibers per milliliter

Compliance requires a combination of engineering controls (dust suppression at source, ventilation), administrative controls (work procedures, exposure monitoring), and PPE (respirators, protective clothing). Engineering controls — including the choice of cutting method — are always the first and most effective line of defense.

Cutting Methods Ranked by Dust Generation

Not all cutting methods generate equal amounts of dust. Understanding the relationship between cutting method and dust output is the foundation of any effective dust control strategy.

High Dust Generation: Methods to Avoid or Minimize

Angle grinder / abrasive disc cutting

The worst option for fiberglass and insulation. Abrasive cutting fractures fibers at high energy, generating enormous volumes of fine dust. The rotating disc also creates a strong air current that disperses dust widely. Never use for production cutting of fiberglass or mineral wool.

Circular saw

Generates significant dust through high-speed blade-fiber contact. The saw blade creates turbulence that lifts and disperses fine particles. Some improvement is possible with dust extraction attachments, but dust generation remains high compared to blade-based methods.

Reciprocating saw / jigsaw

Moderate to high dust generation. The aggressive back-and-forth action fractures fibers and creates significant airborne particulate. Acceptable for occasional site work with PPE; not suitable for production environments.

Hand knife (repeated scoring)

Lower dust than power tools but still generates significant fiber release through repeated mechanical contact. Slow, inaccurate, and physically demanding — not viable at production scale.

Low Dust Generation: The Preferred Approach

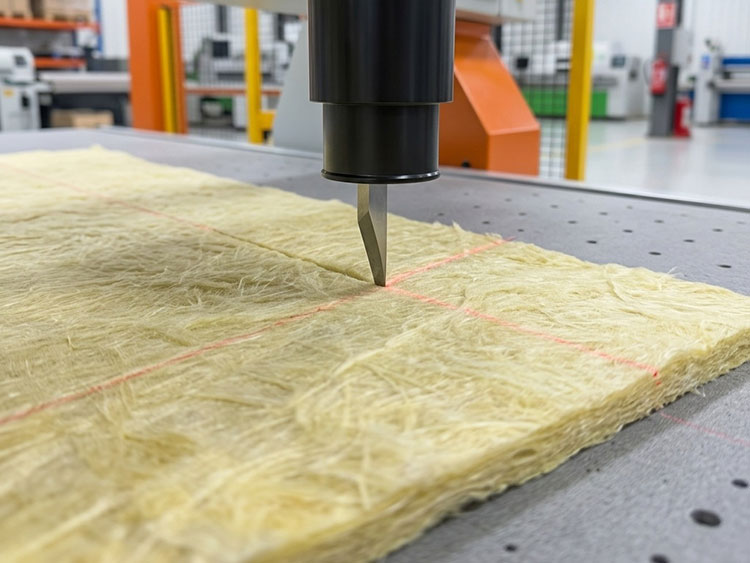

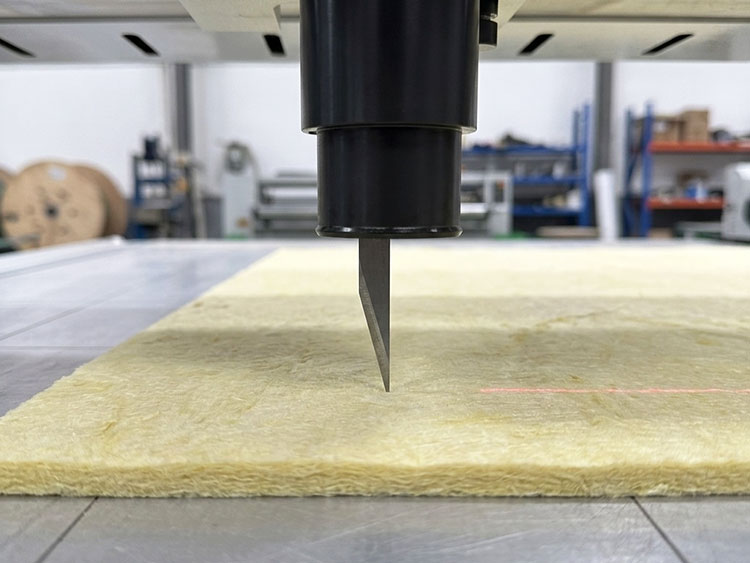

CNC oscillating knife cutting

The lowest dust-generating cutting method for fiberglass and insulation panels in production environments. The oscillating blade severs fibers cleanly with a controlled, low-energy cutting action — fibers are cut rather than fractured. Combined with an integrated vacuum hold-down system that draws air downward through the cutting table, fine particles are captured at the point of generation rather than becoming airborne.

This is the core principle behind Shilai's SL1331FL Fiberglass Mat Insulation Panel Cutting Machine and the broader composite material cutting machine range — engineering dust control directly into the cutting process, rather than relying solely on downstream extraction and PPE.

How CNC Oscillating Knife Cutting Controls Dust at Source

Mechanism 1: Clean Fiber Severance — Less Fracture, Less Dust

The fundamental reason CNC oscillating knife cutting generates less dust than power tools is the cutting mechanism itself.

A sharp oscillating blade severs fibers cleanly at the cut line. The high-frequency vibration (tens of thousands of strokes per minute) reduces cutting resistance, allowing the blade to slice through fibers rather than tearing or fracturing them. The result is:

• Fewer broken fiber fragments per unit length of cut

• Larger average fragment size (less respirable fine fraction)

• Less mechanical energy transferred to the material — less fiber disruption away from the cut line

In contrast, abrasive and high-speed rotary tools fracture fibers through impact and abrasion, generating a much higher proportion of fine respirable fragments.

Mechanism 2: Vacuum Hold-Down — Dust Captured at Source

The vacuum hold-down system in a CNC insulation cutting machine serves two purposes simultaneously: it fixes the material to the cutting table during cutting, and it draws air — and any generated dust — downward through the table surface and into the extraction system.

This downward airflow is the key to effective dust control at source. When dust is generated at the cut line, the vacuum draws it away from the worker's breathing zone before it can become airborne in the room environment. This is fundamentally more effective than trying to capture dust after it has already dispersed into the air.

Vacuum system requirements for effective dust control:

• Sufficient airflow volume: The vacuum must maintain adequate downward airflow across the full cutting area, not just directly under the cutting head

• Filtration specification: The vacuum extraction system must include appropriate filtration — at minimum HEPA-grade filtration for respirable fiberglass fibers — to prevent captured dust from being re-released through the exhaust

• Regular filter maintenance: Clogged filters reduce airflow and dust capture efficiency; establish a regular filter inspection and replacement schedule

• Sealed table surface: Gaps or damage in the cutting table surface reduce vacuum effectiveness and allow dust to escape upward

Mechanism 3: Enclosed Cutting Environment

Unlike manual cutting with open power tools, a CNC cutting machine confines the cutting action to a defined work area. The machine structure limits the dispersal radius of any dust generated, making it easier to design effective local exhaust ventilation (LEV) systems around the machine.

For high-volume insulation cutting operations, a fully enclosed machine hood with dedicated LEV extraction provides the highest level of dust containment — capturing virtually all generated dust before it can enter the room environment.

5 Practical Dust Control Measures for Insulation Cutting Operations

Measure 1: Select the Right Cutting Machine for Your Material

Different insulation materials have different cutting characteristics and dust generation profiles. Matching the machine to the material is the first step in effective dust control.

Measure 2: Maintain the Vacuum System — It Is Your Primary Dust Control

The vacuum hold-down system is the most important dust control component in a CNC insulation cutting machine. A poorly maintained vacuum system dramatically reduces dust capture efficiency.

Vacuum system maintenance checklist:

• Daily: Check vacuum pressure gauge reading before starting production; investigate any pressure drop

• Weekly: Inspect cutting table surface for damage, holes, or contamination that reduce vacuum seal

• Monthly: Inspect pre-filter and main filter; replace when pressure drop across filter reaches manufacturer's limit

• Quarterly: Inspect vacuum pump, seals, and ducting for wear or leaks

• Annually: Full system service including pump overhaul and filter housing inspection

Filter specification for fiberglass dust:

Standard dust bag filters are not adequate for respirable fiberglass fibers. Specify:

• Pre-filter: G4 or M5 class to capture coarse particles and protect the main filter

• Main filter: H13 or H14 HEPA class to capture respirable fiber fragments (≥99.95% efficiency at 0.3 microns)

• Exhaust: Direct machine exhaust outside the building or through a secondary HEPA filter

Measure 3: Optimize Blade Sharpness and Replacement Schedule

A dull blade generates significantly more dust than a sharp one. As a blade wears, it tears rather than cuts fibers — increasing the proportion of fine respirable fragments in the generated dust.

Blade management for insulation cutting:

• Establish a blade replacement schedule based on material type and cutting volume

• Inspect blade edges regularly — replace at the first sign of edge rounding or chipping

• For fiberglass wool and mineral wool, blade wear is faster than for rigid foam — inspect more frequently

• Never continue production with a dull blade to "save" blade cost — the dust generation and cut quality penalties far outweigh the blade cost

Blade types for insulation materials:

Measure 4: Workplace Ventilation Design

Even with the best CNC cutting machine and vacuum system, some residual dust will enter the room environment. Workplace ventilation design is the second line of defense.

Ventilation principles for insulation cutting areas:

Local exhaust ventilation (LEV):

Position LEV extraction hoods as close to the cutting zone as possible — ideally integrated with the machine enclosure. LEV is far more effective than general dilution ventilation for controlling dust at source.

General ventilation:

Maintain positive or neutral pressure in the cutting area relative to adjacent spaces to prevent dust migration. Air supply should be introduced at ceiling level and extracted at low level to create a downward airflow pattern that carries settled dust toward floor-level extraction points.

Air change rate:

For active insulation cutting operations, a minimum of 10–15 air changes per hour is recommended for the cutting area. Higher rates may be required for high-volume production.

Airflow direction:

Never position workers downwind of the cutting zone. The cutting machine and LEV system should be positioned so that any residual airborne dust moves away from the worker's breathing zone.

Measure 5: PPE as the Last Line of Defense

PPE is essential but should be treated as the last line of defense — not the primary dust control measure. When engineering controls (machine selection, vacuum, ventilation) are correctly implemented, PPE requirements are significantly reduced.

Minimum PPE for insulation cutting operations:

Important: PPE must be correctly fitted, inspected before each use, and replaced at the manufacturer's recommended interval. A poorly fitted respirator provides little protection regardless of its filter rating.

Dust Control for Specific Insulation Materials

Fiberglass Wool (Glass Wool)

Fiberglass wool is one of the most common insulation materials and one of the most significant dust hazards in cutting operations. The fine glass fibers (typically 3–10 microns diameter) break easily during cutting, generating large numbers of respirable fragments.

Key control measures:

• CNC oscillating knife cutting is strongly preferred over any power tool method

• Maintain vacuum hold-down at full pressure throughout the cutting run

• HEPA filtration is mandatory — standard filters do not capture fine glass fibers

• Avoid compressing fiberglass wool during cutting — compression increases fiber fracture

Typical applications: HVAC duct lining, building wall and roof insulation, pipe insulation, acoustic panels

Mineral Wool (Rock Wool / Stone Wool)

Mineral wool fibers are generally coarser than fiberglass (typically 5–15 microns diameter) but still generate significant respirable dust during cutting. Modern bio-soluble mineral wool formulations are designed to dissolve in body fluids, reducing long-term health risk — but short-term respiratory irritation from cutting dust remains a concern.

Key control measures:

• Same machine and vacuum requirements as fiberglass wool

• Mineral wool is denser than fiberglass — blade wear may be faster; inspect more frequently

• The higher density also means the vacuum hold-down must work harder to fix the material — check vacuum pressure regularly

Typical applications: Industrial furnace insulation, fire protection panels, acoustic insulation, HVAC duct boards

Rigid Phenolic Duct Board

Phenolic duct board is a rigid composite insulation panel used extensively in HVAC systems. It consists of a phenolic foam core faced with aluminum foil or glass fiber reinforcement. Cutting generates both foam particulates and glass fiber fragments from the facing layers.

Key control measures:

• The SL1331PF Phenolic Board Duct Cutting Machine is specifically designed for phenolic duct board, with V-groove cutting capability for duct fold lines

• V-groove cutting generates more dust than straight cutting — ensure vacuum and LEV are fully operational during V-groove operations

• The aluminum foil facing produces metal particulates in addition to foam and glass fiber dust — ensure filtration system handles mixed dust types

Typical applications: HVAC air handling units, supply and return duct systems, pre-insulated duct panels

PIR / PUR Rigid Foam Board

Polyisocyanurate (PIR) and polyurethane (PUR) rigid foam boards generate less fiber dust than glass or mineral wool but produce fine foam particulates during cutting. The isocyanate-based chemistry of these materials means that fine dust from cutting may carry residual chemical irritants.

Key control measures:

• Lower dust hazard than fiber-based insulation, but respiratory protection is still recommended

• Oscillating knife cutting produces significantly less dust than saw cutting for rigid foam

• Ensure adequate general ventilation in addition to vacuum hold-down

Typical applications: Flat roof insulation, wall cavity insulation, cold store panels, composite sandwich panels

Comparing Dust Control Performance: CNC Cutting vs. Manual Methods

For manufacturers evaluating the business case for CNC insulation cutting equipment, the dust control benefits translate directly into measurable operational and financial outcomes:

The dust control case for CNC cutting is inseparable from the productivity and quality case. A well-configured fiberglass insulation panel cutting machine does not just protect workers — it simultaneously improves cut accuracy, reduces material waste, and increases throughput.

Setting Up a Dust-Controlled Insulation Cutting Operation: Checklist

Use this checklist when setting up a new insulation cutting operation or auditing an existing one:

Machine and Process

• CNC oscillating knife cutting machine selected (not power tools) for production cutting

• Machine matched to primary material type (fiberglass wool, mineral wool, phenolic board, etc.)

• Correct blade type and specification confirmed for material

• Blade replacement schedule established and documented

• Vacuum hold-down system pressure verified before each production run

Dust Extraction and Filtration

• Vacuum system includes HEPA-grade filtration (H13 or H14)

• Pre-filter installed and on regular replacement schedule

• Machine exhaust directed outside building or through secondary HEPA filter

• LEV extraction hood positioned at or integrated with machine cutting zone

• General ventilation provides minimum 10–15 air changes per hour in cutting area

Workplace Design

• Worker position is not downwind of cutting zone

• Cutting area is separated from clean areas (offices, break rooms) by physical barriers or pressure differential

• Floor surfaces are smooth and cleanable (not carpet or open-grid flooring that traps fiber)

• Regular cleaning schedule uses HEPA vacuum (not dry sweeping or compressed air)

PPE and Training

• FFP2/N95 respirators available and correctly fitted for all cutting area workers

• Eye protection available and worn during cutting operations

• Workers trained on dust hazards, correct PPE use, and reporting procedures

• Health surveillance program in place for workers with regular exposure

Conclusion

Dust control in fiberglass and insulation panel cutting is not a single measure — it is a layered system of engineering controls, process design, maintenance discipline, and PPE. But the foundation of that system is the cutting method itself.

CNC oscillating knife cutting is the most effective engineering control available for insulation cutting dust management. By severing fibers cleanly rather than fracturing them, and by capturing generated dust at source through integrated vacuum hold-down, it reduces dust generation and worker exposure at the point where control is most effective — before dust enters the air.

The additional measures — HEPA filtration, LEV ventilation, blade maintenance, workplace design, and PPE — build on this foundation to create a comprehensive dust management system that protects workers, meets regulatory requirements, and supports the quality and productivity goals of the production operation.

For manufacturers cutting fiberglass wool, mineral wool, phenolic duct board, or rigid foam insulation at production scale, the SL1331FL Fiberglass Mat Insulation Panel Cutting Machine and the full composite material cutting machine range from Shilai provide the engineered solution — combining low-dust cutting technology, vacuum hold-down, intelligent nesting, and CNC precision in a single production platform.

Tell us your insulation material type, panel dimensions, production volume, and current cutting method — and our technical team will recommend the right dust-controlled cutting solution for your operation.

Request a Free Insulation Cutting Sample Test →

Frequently Asked Questions

Is fiberglass dust dangerous?

Yes. Fiberglass cutting generates fine respirable fiber fragments that can penetrate deep into the lungs. Short-term exposure causes respiratory, skin, and eye irritation. Prolonged occupational exposure is regulated in most countries, with binding exposure limits typically set at 1 fiber per cubic centimeter of air. Engineering controls — including CNC oscillating knife cutting with vacuum hold-down — are the most effective way to reduce exposure.

What is the best way to cut fiberglass insulation with minimal dust?

CNC oscillating knife cutting generates significantly less dust than any power tool method. The oscillating blade severs fibers cleanly with low mechanical energy, producing fewer fine respirable fragments than saws or grinders. The integrated vacuum hold-down system captures generated dust at the cut line before it becomes airborne. This combination makes CNC oscillating knife cutting the preferred method for production fiberglass cutting from both a dust control and a cut quality perspective.

Do I still need a respirator if I use a CNC cutting machine?

Yes. Engineering controls reduce dust exposure significantly but do not eliminate it entirely. FFP2/N95 respirators (or higher) should be worn by all workers in the cutting area during production. When engineering controls are correctly implemented and maintained, the residual exposure level is much lower, reducing the health burden on workers — but respiratory protection remains a required last line of defense.

What filtration is needed for fiberglass dust extraction?

Standard dust bag filters are not adequate for respirable fiberglass fibers. The vacuum extraction system must include HEPA-grade filtration — H13 or H14 class — to capture fine glass fiber fragments (≥99.95% efficiency at 0.3 microns). A pre-filter (G4 or M5 class) should be installed upstream of the HEPA filter to capture coarser particles and extend HEPA filter life. Machine exhaust should be directed outside the building or through a secondary HEPA filter.

Can the same CNC machine cut both fiberglass wool and rigid insulation board?

Yes. CNC oscillating knife cutting machines can process both soft fiberglass/mineral wool and rigid foam or phenolic board with blade and parameter changes. However, for operations that primarily cut phenolic duct board with V-groove fold lines, a machine specifically configured for duct board — such as the SL1331PF — provides better results than a general-purpose insulation cutter.

How does CNC cutting compare to manual cutting for material waste?

CNC cutting with intelligent nesting software typically achieves 8–16% better material yield than manual cutting. For expensive insulation materials, this yield improvement alone can justify the machine investment within 12–18 months. Additionally, CNC cutting eliminates the measurement and marking errors that cause rework and material waste in manual operations.

What maintenance does the vacuum system require for dust control?

The vacuum system requires regular maintenance to maintain dust capture effectiveness: daily pressure checks, weekly table surface inspection, monthly filter inspection and replacement when pressure drop reaches the limit, quarterly pump and ducting inspection, and annual full system service. A poorly maintained vacuum system dramatically reduces dust capture efficiency — treat vacuum maintenance as a safety-critical task, not a routine housekeeping item.
