A CNC oscillating knife cutting machine is a computer-controlled flatbed cutting system that uses a rapidly vibrating blade — oscillating at thousands of strokes per minute — to cut flexible and semi-rigid materials cleanly, accurately, and without the heat, fumes, or tooling costs associated with laser cutting or die cutting. It is the standard cutting technology for leather, foam, composite fabrics, gaskets, textiles, and technical materials in industries from automotive to aerospace.
If you are evaluating whether an oscillating knife cutter is right for your production, this guide covers everything you need to know: how the technology works, what it can and cannot cut, how it compares to alternatives, what specifications matter, and how to choose the right machine and supplier.
The core mechanism is straightforward. An electric motor drives a blade holder in a rapid up-and-down (oscillating) motion — typically between 1,000 and 20,000 strokes per minute, depending on the material and application. This oscillating action allows the blade to sever material fibers cleanly rather than pushing through them, which is the key reason oscillating knife cutting produces cleaner edges than drag knife cutting, particularly on fibrous or layered materials.
The cutting head is mounted on a gantry that moves in the X and Y axes across a flat cutting table. A CNC controller reads the cutting path from a digital design file (DXF, AI, SVG, or similar format) and drives the gantry to follow that path with high precision. The result: any shape programmed in the design software is cut accurately and repeatably, without manual marking, templates, or dies.
The complete cutting system has five main components:
Cutting table — a flat work surface, either static (flatbed) or moving (conveyor belt), with a vacuum hold-down system that keeps material flat and stationary during cutting
Gantry and drive system — the mechanical structure that moves the cutting head across the table; driven by servo motors and guided by precision linear rails
Cutting head — holds the oscillating blade (or other tools) and controls blade angle, depth, and oscillation frequency
CNC controller — the computer system that reads design files and converts them into precise motor commands
Nesting software — optimizes the layout of cut patterns on the material sheet or roll to minimize waste
The vacuum hold-down is particularly important for cutting accuracy. When the vacuum system draws air through the table surface, it holds the material flat and prevents any movement during cutting — movement that would translate directly into dimensional errors in the cut parts.
The oscillating knife cutting principle is effective across a wide range of flexible, semi-rigid, and fibrous materials. The key requirement is that the material can be severed by a blade — materials that are too hard (metal, glass, stone) or too brittle require different cutting technologies.
Leather and synthetic leather:
Genuine leather: cowhide, sheepskin, pigskin, fur
Synthetic leather: PU leather, PVC leather, microfiber leather
Applications: automotive interiors, furniture upholstery, footwear, bags, fashion accessories
Shilai's CNC leather cutting machines add a vision system that scans the irregular contour of each hide and automatically nests patterns within the usable area, avoiding defects such as scars, holes, and thin spots.
Composite materials:
Dry fabrics: carbon fiber, fiberglass, aramid (Kevlar), basalt, hybrid fabrics
Prepregs: resin-impregnated carbon fiber, glass fiber, and aramid materials
Insulation panels: phenolic duct board, PIR/PUR foam, fiberglass wool, mineral wool
Applications: aerospace structures, automotive composites, wind turbine blades, HVAC ducting
Shilai's composite material cutting machines use specialized blade geometries for each material type — including serrated blades for aramid and PTFE-coated blades for sticky prepregs — to achieve clean, fray-free edges on technically demanding materials.
Foam:
Soft foams: PU foam, sponge, EPE, EVA, XPE
Rigid foams: EPS (Styrofoam), XPS insulation board
Technical foams: EPDM foam, silicone foam, acoustic foam
Applications: packaging inserts, furniture cushions, automotive parts, insulation, gaskets and seals
Shilai's CNC foam cutting machines cut foam without compression or deformation — a critical advantage over band saws and hot wire cutters, which either compress the foam during cutting or melt the cut surface.
Gaskets and sealing materials:
Rubber (natural, EPDM, silicone, neoprene)
Graphite sheet gaskets
PTFE (Teflon) gaskets
Non-asbestos fiber gaskets
Applications: industrial sealing, oil and gas, chemical processing, power generation, automotive
Shilai's CNC gasket cutting machines cut directly from CAD drawings without dies, reducing tooling cost to zero and cutting lead time from weeks to hours.
Textiles and technical fabrics:
Woven and non-woven fabrics for apparel, upholstery, and technical applications
Curtain and blind fabrics
Carpet and floor mats
Acoustic panels and wall coverings
Other materials:
Cardboard and corrugated board (packaging and display)
Rubber sheet and gasket rubber
Thin plastics and films
Advertising materials (PVC, PP, foam board)
Material | Why Not Suitable | Better Alternative |
Metal sheet | Too hard for blade cutting | Laser cutting, plasma cutting, waterjet |
Glass and ceramics | Brittle — blade pressure causes cracking | Waterjet, diamond wheel |
Hard cured composites (CFRP plate) | Blade cannot penetrate cured resin matrix | CNC routing, waterjet |
Stone and concrete | Too hard | Waterjet, diamond blade saw |
Very thick rigid materials (>50mm hard board) | Blade deflection at depth | CNC routing, band saw |
This is the most common question manufacturers ask when evaluating cutting technology. The answer depends on your material, required accuracy, production volume, and budget.
Factor | Oscillating Knife | Laser Cutting |
Edge quality on textiles/leather | ✅ Clean, no heat damage | ❌ Burned edges, discoloration |
Edge quality on composites | ✅ No delamination, no fumes | ❌ Delamination risk, toxic fumes from carbon fiber |
Edge quality on foam | ✅ Clean cut, no melting | ❌ Melts and fuses foam surface |
Accuracy | ✅ ±0.1mm | ✅ ±0.05–0.1mm |
Speed on straight cuts | ✅ Fast | ✅ Very fast |
Speed on complex shapes | ✅ Fast | ✅ Fast |
Material thickness | ✅ Up to 50mm+ (foam/rubber) | ❌ Limited on thick materials |
Operating cost | ✅ Low (blade replacement only) | ❌ High (laser source maintenance, gas) |
Safety | ✅ No fumes, no radiation | ❌ Fumes, laser safety enclosure required |
Material compatibility | ✅ Very broad | ❌ Not suitable for many composites, foam, leather |
Conclusion: For leather, foam, composite fabrics, and gasket materials, oscillating knife cutting is the correct technology. Laser cutting is appropriate for thin, non-heat-sensitive materials where maximum speed is the priority and edge quality is not affected by heat.
Factor | Oscillating Knife | Die Cutting |
Tooling cost | ✅ Zero — no dies required | ❌ $500–$3,000+ per die set |
Setup time for new pattern | ✅ Minutes — load new CAD file | ❌ 2–4 weeks die manufacturing lead time |
Accuracy | ✅ ±0.1mm | ✅ ±0.1–0.3mm |
Speed at high volume | ✅ Good | ✅ Excellent (faster per stroke) |
Pattern change flexibility | ✅ Instant — any shape, any time | ❌ New die required for each new shape |
Small batch economics | ✅ Economical from 1 piece | ❌ Die cost makes small batches expensive |
Large batch economics | ✅ Good | ✅ Better per-piece cost at very high volume |
Material waste | ✅ Low — intelligent nesting | ❌ Higher — fixed die layout |
Conclusion: CNC oscillating knife cutting is more economical than die cutting for any production with frequent pattern changes, small-to-medium batch sizes, or multiple product variants. Die cutting remains competitive only for very high-volume, single-pattern production with no design changes.
Factor | Oscillating Knife | Waterjet |
Material compatibility | Flexible/semi-rigid materials | Very broad including metals, stone |
Edge quality on soft materials | ✅ Dry, clean edge | ❌ Wet edge — drying required |
Operating cost | ✅ Low | ❌ High (water, abrasive, pump maintenance) |
Speed | ✅ Fast on soft materials | ❌ Slow on soft materials |
Accuracy | ✅ ±0.1mm | ✅ ±0.1mm |
Suitable for composites | ✅ Yes (dry fabrics, prepregs) | ❌ Water damages prepregs; delamination risk on dry fabrics |
Conclusion: For the materials that oscillating knife cutters handle (leather, foam, composites, gaskets, textiles), waterjet cutting is slower, more expensive to operate, and produces wet edges that require drying. Waterjet is the correct choice for hard materials that blades cannot cut.
When evaluating CNC oscillating knife cutting machines, these are the specifications that actually matter for production performance:
The maximum dimensions of material that can be cut in a single setup. Common sizes range from 600×900mm (compact sample room machines) to 1600×3000mm and larger (production machines). Choose based on your largest typical part or sheet size — a machine that is too small forces you to cut in sections, introducing seam errors.
Measured in mm/s, typically 100–1,500mm/s depending on material. Higher speed is not always better — cutting speed must be matched to material type and part complexity. Curves and corners require lower speed to maintain geometric accuracy. Look for machines with automatic speed adaptation (faster on straight sections, slower on curves).
The maximum deviation of the cut edge from the programmed path. ±0.1mm is the standard specification for production-grade CNC oscillating knife cutters and is sufficient for the vast majority of industrial applications including aerospace composite ply cutting and automotive leather components.
Japanese servo motors + Taiwan precision guide rails is the industry benchmark for production-grade machines. Servo motors provide closed-loop position feedback — the control system continuously monitors and corrects the cutting head's actual position. This is what makes ±0.1mm accuracy achievable and maintainable over the machine's service life.
The vacuum system holds material flat during cutting. Vacuum power must be matched to the material — slippery materials like aramid fabric and sticky prepregs require high-power vacuum systems. Insufficient vacuum hold-down is the most common cause of cutting accuracy problems in production.

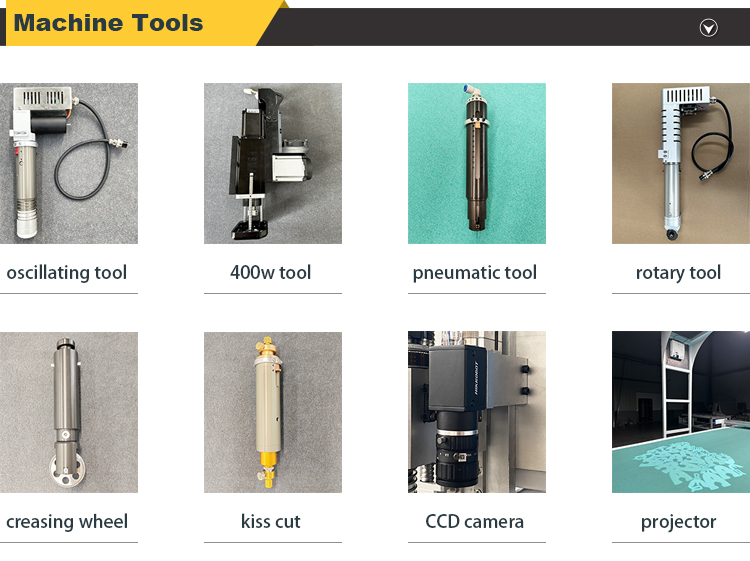

Production machines should support multiple tool types in a single cutting head: oscillating knife, drag knife, rotary knife, milling spindle, punching tool, and marking tool. Multi-tool capability allows complex parts (cut + punch + mark in one pass) without repositioning.
The machine should accept standard design file formats: DXF, AI (Adobe Illustrator), SVG, CorelDRAW, and optionally SolidWorks and Pro/E for engineering applications. Proprietary file formats that require conversion add workflow friction and introduce error risk.
Intelligent nesting software automatically optimizes the layout of cut patterns on the material to minimize waste. For expensive materials — genuine leather, carbon fiber prepreg, PTFE — nesting efficiency directly determines material cost per part. Look for nesting software that handles irregular material shapes (leather hides), defect avoidance, and fiber orientation constraints (composites).
Flatbed (Static Table)
The material is placed on a fixed table and held by vacuum. Best for: sheet materials, rigid boards, samples, and short production runs. Simpler, lower cost, easier to maintain.
Conveyor (Auto-Feed)
The cutting table is a moving conveyor belt that automatically advances roll material through the cutting zone. Best for: roll materials (leather, fabric, foam rolls), long production runs, 24/7 automated production. Higher throughput, lower labor requirement.
Single-Head
One cutting head traverses the full working area. Standard configuration for most applications. Lower cost, simpler maintenance.
Dual-Head
Two independent cutting heads work simultaneously on the same table. Increases throughput by approximately 60–80% (not exactly 2× because the heads must avoid collision). Best for: high-volume production where throughput is the primary constraint.
Oscillating Knife — the primary tool for most flexible materials. High-frequency vibration severs fibers cleanly.
Drag Knife — a non-vibrating blade that is dragged through the material. Lower cutting force, suitable for thin films and light materials.
Rotary Knife — a spinning circular blade. Best for long straight cuts on fabrics and leather.
Milling Spindle — a high-speed rotating router bit. Used for cutting rigid boards (phenolic duct board, cured composite panels) and for creating pockets and grooves in foam.
Punching Tool — creates holes and perforations without a separate operation.
Marking Tool — draws reference lines, fold lines, or labels on the material surface.
Price varies significantly based on working area, drive system quality, tool configuration, and software capability. As a general guide for factory-direct pricing from a Chinese manufacturer:
Machine Type | Typical Price Range (FOB) |
Compact flatbed (600×900mm), single tool | $8,000 – $15,000 |
Mid-size flatbed (1600×2500mm), single tool | $9,000 – $15,000 |
Large-format flatbed (1600×3000mm+), multi-tool | $10,000 – $20,000 |
Conveyor auto-feed, single head | $10,000 – $30,000 |
Leather machine with vision nesting system | $20,000 – $40,000 |
Dual-ganty production machine | $20,000 – $50,000 |
These are indicative ranges. The actual price depends on your specific configuration requirements. Buying directly from the manufacturer (as opposed to through a distributor) typically saves 20–40% compared to local dealer pricing.
Different materials require different blade types, vacuum hold-down power, and cutting parameters. A machine optimized for leather will not necessarily perform well on carbon fiber prepreg, and vice versa. Be specific about:
Material type (genuine leather, PU leather, carbon fiber, PTFE, PU foam, etc.)
Material thickness range
Whether the material comes in sheets or rolls
Measure your largest typical part or sheet. Add 10–15% margin for nesting efficiency. This gives you the minimum working area you need. Choosing a machine that is too small forces you to cut in sections; choosing one that is too large wastes floor space and budget.
Daily output target determines whether you need a flatbed (lower volume, flexible) or conveyor (higher volume, continuous) configuration, and whether a single-head or dual-head machine is appropriate.
For most industrial applications, ±0.1mm is sufficient. For aerospace composite ply cutting, verify that the machine achieves ±0.1mm across the full working area — not just at the table center. Request a sample test on your actual material before purchasing.
Any reputable manufacturer should offer a sample cutting test on your materials before purchase. Prepare your design files (DXF or AI format), send your material samples, and evaluate the results against your tolerance and edge quality requirements.
Shilai (Jinan Shilai Technology Equipment Co., Ltd.) is a China-based manufacturer specializing in CNC oscillating knife cutting machines for industrial applications worldwide. Key reasons manufacturers choose Shilai:
Full product range: dedicated machines for leather, composites, foam, gaskets, fabrics, cardboard, and advertising materials — not a one-size-fits-all solution
Production-grade drive systems: Japanese servo motors and Taiwan precision guide rails on all models, delivering ±0.1mm cutting tolerance
3-year warranty: the longest standard warranty in the industry for Chinese-manufactured CNC cutting machines
Direct factory pricing: no distributor markup — you buy directly from the manufacturer
Global support: remote technical support, spare parts supply, and installation guidance for customers worldwide
Free sample testing: send your materials and we will cut test samples before you commit to a purchase
Shilai's product range covers:
Leather cutting machines with vision nesting for genuine and synthetic leather
Composite material cutting machines for carbon fiber, fiberglass, aramid, and prepregs
Foam cutting machines for EVA, EPE, PU, EPS, XPS, and EPDM
Gasket cutting machines for rubber, graphite, PTFE, and non-asbestos materials
A CNC oscillating knife cutting machine is a computer-controlled flatbed cutter that uses a rapidly vibrating blade to cut flexible and semi-rigid materials — including leather, foam, composites, gaskets, and textiles — with ±0.1mm accuracy, without heat, fumes, or tooling dies.
Oscillating knife cutters can cut leather (genuine and synthetic), foam (PU, EVA, EPE, EPS, XPS, EPDM), composite fabrics (carbon fiber, fiberglass, aramid, prepreg), gasket materials (rubber, graphite, PTFE, non-asbestos), textiles, cardboard, and most flexible or semi-rigid non-metallic materials up to approximately 50mm thick.
A production-grade CNC oscillating knife cutting machine achieves a cutting tolerance of ±0.1mm with Japanese servo motors and precision guide rails. This is sufficient for aerospace composite ply cutting, automotive leather components, and industrial gasket manufacturing.
Oscillating knife cutting produces no heat, no fumes, and no burned edges — making it suitable for leather, foam, composites, and materials that laser cutting would damage. Laser cutting is faster on thin, non-heat-sensitive materials but cannot be used on most composite fabrics, foam, or genuine leather without edge damage.
No. CNC oscillating knife cutting is completely die-free. Cutting patterns are loaded as digital files (DXF, AI, SVG) and can be changed in minutes at zero tooling cost. This is the primary economic advantage over die cutting for production with multiple patterns or frequent design changes.
Factory-direct prices from Chinese manufacturers range from approximately $8,000 for compact flatbed machines to $80,000+ for large-format dual-head production systems with vision nesting. The exact price depends on working area, tool configuration, and software requirements.
Cutting speed ranges from 100mm/s to 1,500mm/s depending on material type and part complexity. Straight cuts on foam or leather can be made at maximum speed; complex curves and tight corners require reduced speed to maintain geometric accuracy. Production machines automatically adjust speed based on path geometry.
Regular maintenance includes: blade replacement (frequency depends on material and volume — typically every few hours to days of cutting), vacuum system filter cleaning (weekly), guide rail lubrication (monthly), and periodic machine calibration (annually or as needed). Total maintenance cost is low compared to laser cutting systems.
