Buy Premium CNC Gasket Cutting Machines from China Manufacturer

Get high-precision, die-less gasket cutting machines directly from a China-based CNC manufacturer. Cut rubber, graphite, PTFE, non-asbestos and more with ±0.1mm accuracy and stable industrial performance.

● CNC gasket cutting machines for rubber, silicone, graphite, PTFE, non-asbestos and other non-metallic gasket materials.
● Die-less digital cutting based on CAD drawings to save tooling cost and shorten lead time.
● ±0.1mm cutting accuracy with stable repeatability for demanding industrial sealing applications.
● Multiple models for sheet and roll materials, from prototyping to mass production.
● Direct factory price, 3-year warranty and global online support from Shilai CNC

CNC Gasket Cutting Machines for Sale

Shilai offers a full range of CNC gasket cutting machines for different materials, formats and production volumes. Choose the right model based on your sheet or roll size, daily output and gasket materials.

● For sheet materials (graphite, PTFE, asbestos, non-asbestos): choose flatbed CNC gasket cutting machines.
● For roll materials (rubber, silicone, soft sealing materials): choose auto-feeding gasket cutting machines with conveyor belt.
● For high-volume orders: choose dual-head CNC gasket cutters to double productivity

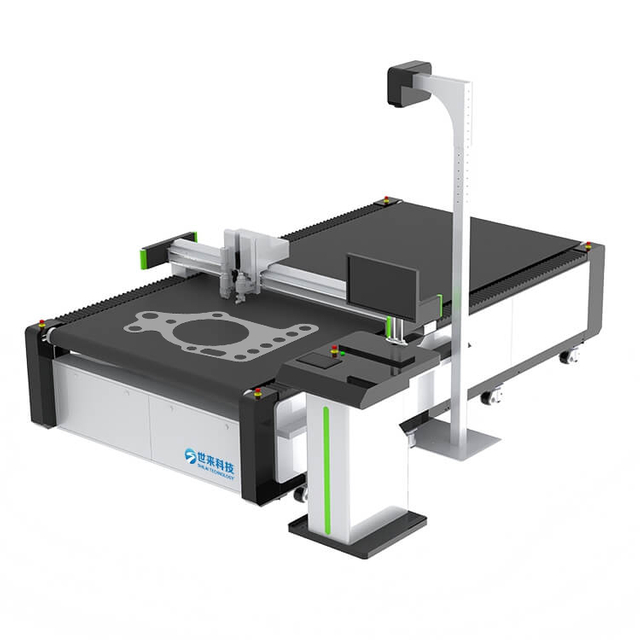

SL6090FG Graphite Gasket Cutting Machine

Compact CNC gasket cutting machine for small sheets and custom gaskets. Ideal for graphite, PTFE and rubber gaskets with ±0.1mm precision and die-less cutting.

Cutting method: oscillating knife digital cutting
Best for: graphite and PTFE gaskets, small-batch production, sampling and custom orders
Highlight: maximized material utilization with professional nesting software

SL1610FG PTFE Gasket Cutting Machine

Flatbed CNC gasket cutting machine for PTFE and other non-metallic gaskets. Provides high accuracy without deformation or tooling cost, ideal for high-performance sealing applications.

Cutting area: for medium-size sheets such as PTFE and rubber boards
Best for: PTFE, rubber and non-asbestos gasket sheets
Highlight: die-less cutting according to CAD drawings, suitable for prototyping and stable production

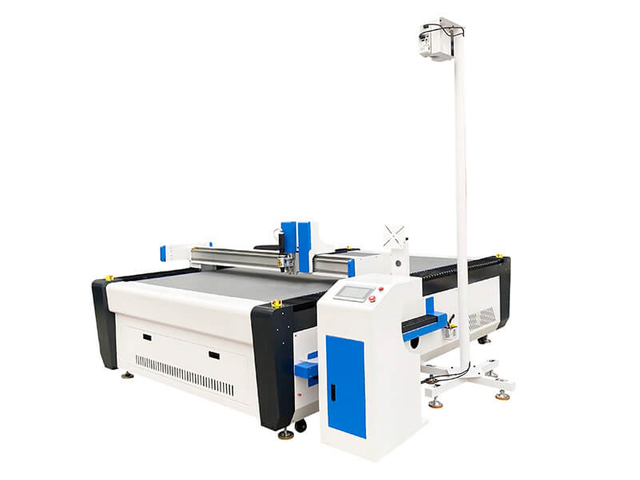

SL1625FG Large-Format Asbestos Gasket Cutter

Large-format CNC gasket cutting machine for full-size asbestos and non-asbestos sheets up to 1600×2500mm.

Best for: high-pressure industrial sealing gaskets in oil & gas, chemical and power industries
Highlight: clean, dust-free cutting with oscillating knife and ±0.1mm precision

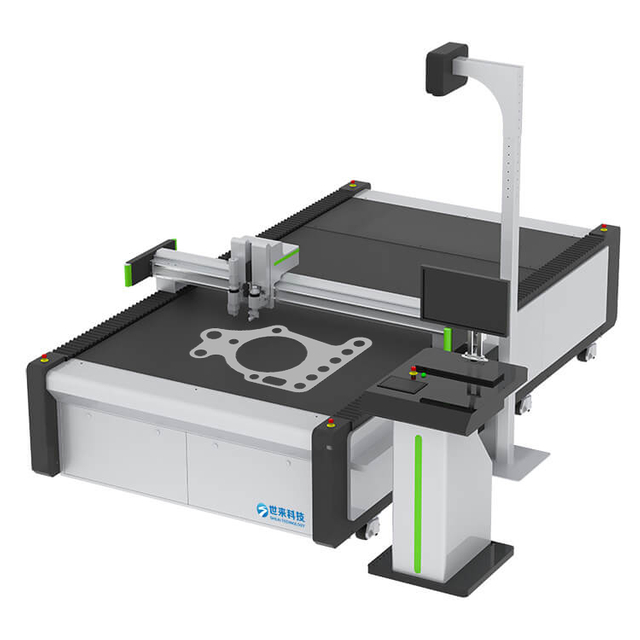

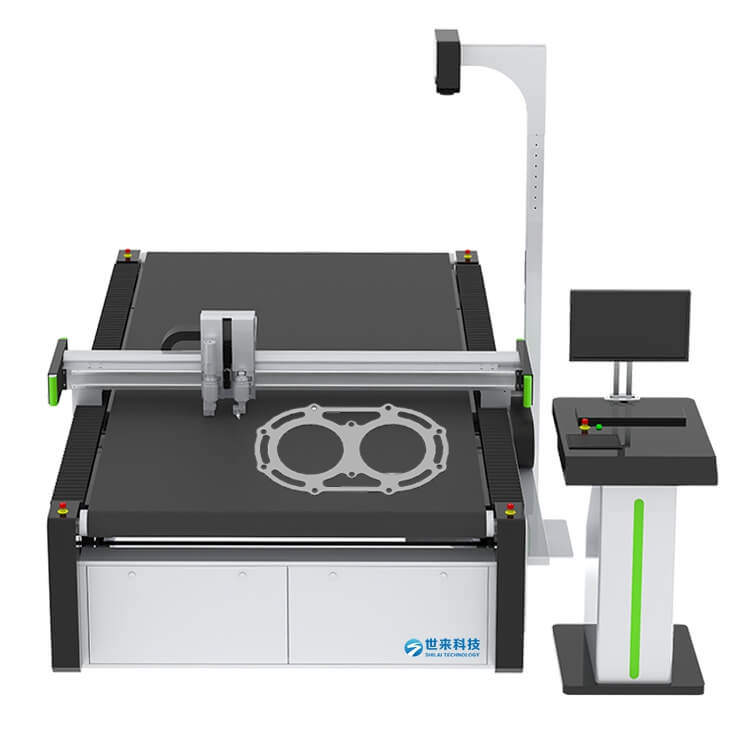

SL1610CG Auto-Feeding Gasket Cutter

Auto-feeding CNC gasket cutting machine with conveyor belt for roll materials. Designed for continuous, unattended cutting of rubber, silicone and other flexible gasket materials.

Best for: rubber and silicone gasket rolls, long-run and repeat orders
Highlight: automatic feeding, labor-saving production with high efficiency and precision

SL1625FGD Dual-Head Gasket Cutting Machine

Dual-head CNC gasket cutting machine to double your gasket output. Two independent oscillating knives work at the same time for mass production.

Best for: high-volume graphite, PTFE and rubber gasket manufacturing
Highlight: higher productivity with the same machine footprint, die-less digital cutting for flexible production

If you are not sure which gasket cutting machine for sale is right for you, send your material details and drawings to get a free selection proposal.

Gasket Cutting Solutions for Industrial Sealing

Shilai CNC gasket cutting machines are designed for a wide range of non-metallic gasket materials and industrial sealing applications.

By material：

● Rubber and silicone gaskets for general industrial sealing and automotive parts.

● Graphite and PTFE gaskets for high-temperature, chemical and high-pressure environments.

● Asbestos and non-asbestos compressed sheets for flanges and heavy-duty pipelines.

●Fiber, paper and other soft sealing materials for low-pressure equipment and auxiliary sealing.

By application：

● Flange gaskets for pipelines, valves and pressure vessels.

● Heat exchanger gaskets and plate gaskets for process equipment.

● Pump and valve gaskets in chemical, petrochemical and water treatment industries.

● Automotive and machinery gaskets for engines, compressors and hydraulic systems.

With CNC control and professional nesting software, every gasket is cut to size for a reliable seal and repeatable performance in your application.

CNC Gasket Cutting Machine Manufacturer in China

Jinan Shilai Technology Equipment Co., Ltd. is a professional manufacturer of CNC oscillating knife cutting machines, providing digital cutting solutions for gaskets and other non-metallic materials.
Shilai CNC gasket cutting machines are widely used in packaging, automotive, textile and industrial sealing industries worldwide.

Technological and Product Advantages

● Focus on CNC knife cutting technology with independent motion control and software development.
● ±0.1mm cutting accuracy and stable repeatability for continuous industrial production.
● Flexible configuration: oscillating knife, drag knife, crease wheel, camera, conveyor and other tools for different gasket materials and thicknesses.
● Professional nesting and CAD/CAM workflow to improve material utilization and reduce production costs.

Procurement and Service Advantages

● Direct factory price from a China-based CNC gasket cutting machine manufacturer.
● 3-year warranty with online technical support and spare parts service.
● Customization options for table size, tool configuration and automation level.
● Experience in overseas delivery and remote installation guidance for international customers.

Three-step cooperation

● Step 1 – Share your project: send gasket material, thickness, sheet or roll size, and output requirements.

● Step 2 – Get your solution: receive recommended CNC gasket cutting machine model, technical solution and quotation.

● Step 3 – Start production: machine manufacturing, testing, delivery and online training for your operators.

Gasket Cutting Machine Specifications

Below are typical specification ranges of Shilai CNC gasket cutting machines for gaskets. Detailed specs are available in individual product pages and customized solutions.

Parameter bullets：

Cutting area: from compact 600×900mm models to large-format 1600×2500mm machines for full sheets.

Cutting accuracy: up to ±0.1mm for non-metallic gasket materials.

Suitable materials: rubber, silicone, graphite, PTFE, asbestos and non-asbestos compressed sheets, fiber, paper and other soft sealing materials.

Suitable thickness: configurable according to material and model, from thin sheets to thicker gasket boards.

Cutting tools: oscillating knife, drag knife and other tools for different hardness and thickness; optional camera and conveyor system.

Control & software: CNC control system with professional nesting and CAD/CAM software for die-less cutting according to CAD/DXF drawings.

Compared with traditional die cutting, a CNC gasket cutting machine does not require die making, which is ideal for small batches, custom gaskets and frequent design changes. It improves material utilization, shortens delivery time and provides cleaner cutting edges for high-quality sealing.

FAQ: Buy a CNC Gasket Cutting Machine from Shilai

Q How much does a CNC gasket cutting machine cost?

A The price of a CNC gasket cutting machine depends on the cutting area, configuration, tools and automation level you choose. Entry-level models are suitable for small sheets and lower output, while large-format or dual-head machines are designed for mass production. Share your gasket material and production requirements to get an accurate factory price.
Q Which materials can your gasket cutting machines process?

A Shilai CNC gasket cutters can process a wide range of non-metallic gasket materials, including rubber, silicone, PTFE, graphite, asbestos, non-asbestos compressed sheets, fiber and sealing paper. Tell us your specific materials and thickness so we can recommend the most suitable configuration.
Q What file formats do you accept for gasket cutting?

A Our CNC gasket cutting machines work with CAD-based drawings. You can provide DXF, AI or other common CAD/vector formats. If needed, our team can help optimize your drawings and nesting layout for better material utilization.
Q Do you offer sample cutting or testing with our materials?

A Yes, sample cutting is available. You can send us your gasket materials and drawings, and we will arrange test cutting on the recommended CNC gasket cutting machine. Cutting photos or videos can be provided to help you evaluate the result before purchase.
Q What is the warranty period and after-sales support?

A Shilai provides a 3-year warranty for CNC gasket cutting machines, together with lifelong online technical support. Our engineers can assist you with installation, training, parameter adjustment and troubleshooting remotely, and we keep key spare parts in stock for quick replacement.
Q What is the typical lead time and shipping solution for overseas buyers?

A Standard CNC gasket cutting machines usually have a certain production lead time depending on the configuration and order quantity. After factory testing, the machine is packed for international shipment by sea or other agreed methods. Our team will help you with transportation options and shipping documents.

Request a Quote for Your Gasket Cutting Machine

Ready to upgrade your gasket production with a CNC gasket cutting machine for sale from a professional manufacturer in China? Fill in the form below to receive a tailored solution and direct factory quotation.

To help our engineers recommend the right CNC gasket cutting machine model, please include:

●Gasket material type and thickness
●Maximum gasket size and sheet or roll size
●Daily or monthly output you plan to achieve
●Your current cutting method and main problems (accuracy, efficiency, labor cost, tooling cost, etc.)

Our team will review your information and get back to you with a machine recommendation, technical proposal, price and estimated lead time as soon as possible.
