When engineers and procurement managers evaluate a CNC composite cutting machine, cutting accuracy is almost always the first technical question. And rightly so. In aerospace, the difference between a ply cut to ±0.5mm and one cut to ±1.0mm is the difference between a part that passes first-article inspection and one that fails. In automotive, dimensional variation in composite reinforcement panels translates directly into assembly fit problems and rework costs. In ballistic protection, every ply in a multi-layer kit must be identical — dimensional inconsistency compromises both product safety and certification compliance.
The short answer is that a well-configured CNC composite cutting machine achieves a repeatable cutting tolerance of ±0.5mm. But that number alone does not tell the full story. Cutting accuracy is not a fixed property of a machine — it is the outcome of a system: the drive mechanism, the blade type, the material fixation method, the cutting parameters, and the maintenance discipline applied to the machine over time.
This guide explains what ±0.5mm means in practice, what factors determine whether a machine consistently achieves it, how accuracy requirements differ across composite materials and industries, and what questions to ask when evaluating a CNC composite cutting machine for your specific application.
Before evaluating any machine's accuracy claim, it is important to understand what the specification actually measures.
Cutting tolerance (±0.5mm) means that any point on a cut edge will deviate from the programmed cutting path by no more than 0.5mm in either direction. For a part with a programmed dimension of 500.0mm, the actual cut dimension will fall between 499.5mm and 500.5mm — a total variation band of 0.2mm.
For most composite manufacturing applications, cutting tolerance and repeatability are the most operationally relevant specifications — they determine whether parts are within drawing tolerance and whether every part in a production run is dimensionally identical.
To put the CNC accuracy figure in context:
Cutting Method | Typical Dimensional Accuracy | Repeatability |
Manual knife / scissors | ±2–5mm | Poor — varies by operator |
Manual rotary cutter with template | ±1–2mm | Moderate — template-dependent |
Die cutting | ±0.5–1mm | Good — but tool wear degrades over time |
CNC oscillating knife | ±0.5mm | Excellent — consistent across full production run |
CNC laser cutting | ±0.5 | Excellent — but not suitable for most composites |
The accuracy advantage of CNC cutting over manual methods is not marginal — it is an order of magnitude improvement. For manufacturers currently cutting composite materials manually, switching to CNC cutting eliminates the single largest source of dimensional variation in their production process.
Achieving ±0.5mm consistently requires every element of the cutting system to perform correctly. There are six primary factors:
The drive system — the combination of motors, guide rails, and rack-and-pinion or ball-screw transmission — determines how accurately the cutting head moves to its programmed position.
High-precision servo motors are essential for composite cutting accuracy. Servo motors provide closed-loop position feedback, meaning the control system continuously monitors and corrects the actual position of the cutting head against the programmed path. This is fundamentally different from stepper motors, which operate open-loop and can lose position under load without the control system detecting the error.
Shilai's composite material cutting machines are driven by Japanese servo motors paired with Taiwan-manufactured guide rails and rack-and-pinion transmission — a combination that delivers the positioning accuracy and long-term mechanical stability required for ±0.5mm cutting tolerance in production environments.
Guide rail quality directly affects accuracy over the machine's service life. High-quality linear guide rails maintain their geometric accuracy over millions of cutting cycles. Lower-quality rails develop play and wear patterns that progressively degrade cutting accuracy — a machine that achieves ±0.5mm when new may drift to ±0.3mm or worse after 12–18 months of production use if the guide rail quality is insufficient.
Key questions to ask any machine supplier:
What servo motor brand and model is used?
What is the guide rail specification and manufacturer?
What is the machine's positioning accuracy (not just cutting tolerance)?
How does accuracy change over the machine's service life?
A cutting machine can have perfect drive system accuracy and still produce inaccurate cuts if the material moves during cutting. Material fixation is the second critical factor in cutting accuracy.
Vacuum hold-down is the standard fixation method for composite cutting. The vacuum system draws air downward through the cutting table surface, creating suction that holds the material flat and stationary throughout the cutting process.
Fixation requirements vary significantly by material:
Material | Fixation Challenge | Vacuum Requirement |
Carbon fiber dry fabric | Moderate — fabric is stable but can shift | Standard vacuum |
Fiberglass dry fabric | Moderate | Standard vacuum |
Prepreg (carbon/glass) | High — tacky surface, flexible material | High-power vacuum |
Aramid / Kevlar fabric | Very high — smooth, slippery surface | High-power vacuum |
Rigid insulation board | Low — self-supporting | Standard vacuum |
Thin prepreg film | Very high — lightweight, tends to lift | High-power vacuum + edge sealing |
When vacuum hold-down is insufficient for the material being cut, the material shifts or lifts during cutting — and no amount of drive system precision can compensate for a moving workpiece. This is why the SL1625AF Aramid Fabric Kevlar Cutting Machine and the SL1625PF Resin Prepreg Cutting Machine are specified with high-power vacuum systems — the materials they process present the most demanding fixation challenges.
Practical accuracy impact of inadequate fixation:
Material shift of just 0.5mm during a long cutting run translates directly to 0.5mm dimensional error on every subsequent cut
Edge lifting causes the blade to cut at an angle rather than perpendicular, producing beveled edges and dimensional errors
Multi-layer stacks that are not uniformly fixed produce inter-layer dimensional variation — top layers cut accurately, lower layers deviate
The blade is the physical interface between the machine's programmed path and the material. Even with perfect drive system accuracy and perfect fixation, a worn or incorrectly specified blade will produce inaccurate cuts.
How blade condition affects accuracy:
Sharp blade: Severs fibers cleanly at the programmed cut line — actual cut edge matches programmed path
Dull blade: Pushes and deflects fibers before severing them — actual cut edge deviates from programmed path by the deflection distance
Wrong blade geometry: Blade designed for a different material type may deflect rather than cut, or cut at an angle, producing dimensional errors
Blade-to-material matching for accuracy:
Material | Correct Blade | Accuracy Risk with Wrong Blade |
Carbon fiber / fiberglass dry fabric | Straight oscillating blade | Smooth blade on tight weave causes fiber deflection |
Prepreg (carbon/glass) | Straight oscillating blade (PTFE coated) | Resin buildup on uncoated blade causes drag and deviation |
Aramid / Kevlar | Specialized serrated blade | Smooth blade causes fiber deflection — severe accuracy loss |
Rigid insulation board | Straight oscillating blade | Dull blade causes compression and dimensional error |
Blade replacement discipline is a direct accuracy control. Establish blade replacement schedules based on material type and cutting volume, and treat blade condition as a precision maintenance item — not just a consumable cost.
Cutting speed affects accuracy in two ways: directly, through the dynamic response of the drive system at different speeds, and indirectly, through the quality of the cut edge (which affects where the effective cut line falls).
Speed and accuracy trade-offs:
Too fast on curves and corners: The cutting head's inertia causes it to cut a slightly larger radius than programmed — the actual path overshoots the programmed path at direction changes. This is particularly significant for tight curves and sharp corners.
Too slow: Increases blade contact time, which can increase heat generation and blade wear — both of which degrade edge quality and effective accuracy.
Optimal speed: Balances cut quality, throughput, and dynamic accuracy — varies by material, thickness, and geometry complexity.
CNC path programming for accuracy:
Modern composite cutting machines include path optimization tools that automatically adjust cutting speed at corners and curves — slowing down to maintain geometric accuracy and accelerating on straight sections to maximize throughput. This is not optional for high-accuracy applications: a machine running at constant speed through complex geometry will always sacrifice accuracy at direction changes.
Kerf width compensation:
Every blade has a finite width — the kerf. For high-accuracy cutting, the CNC program must compensate for kerf width by offsetting the programmed cutting path by half the kerf width toward the waste side of the cut. Without kerf compensation, all cut parts will be undersized by the kerf width. On a 0.5mm blade, this means every part is 0.5mm smaller than programmed — a systematic error that affects every part in every production run.
The machine frame must maintain its geometric accuracy under the dynamic loads of the cutting process and across the temperature range of the production environment.
Frame rigidity:
A rigid, well-damped machine frame minimizes vibration during cutting — vibration that would otherwise translate into micro-scale positional errors at the cut edge. Heavy-duty welded steel frames, properly stress-relieved and machined, provide the rigidity required for ±0.5mm accuracy at production cutting speeds.
Thermal stability:
All mechanical structures expand with temperature. A machine operating in an environment with significant temperature variation — for example, an unheated factory that ranges from 5°C in winter to 35°C in summer — will experience dimensional changes in its frame and guide rails that affect cutting accuracy. For the highest accuracy applications, maintain the cutting environment at a stable temperature (18–22°C is standard for aerospace composite manufacturing).
The CNC control software translates the design file into machine motion commands. The accuracy of this translation — and the calibration of the machine's coordinate system — directly affects cutting accuracy.
Software accuracy factors:
Interpolation quality: How accurately the software converts curved design geometry into the series of small linear movements that the machine executes. Higher-quality interpolation produces smoother curves with less deviation from the true programmed path.
Coordinate system calibration: The machine's physical coordinate system must be accurately calibrated to match the software's coordinate system. Miscalibration produces systematic errors — parts that are consistently offset or scaled incorrectly.
Nesting software accuracy: The nesting software must accurately represent part geometry and fiber orientation. Errors in the nesting layout translate directly into cutting errors.
Shilai's machines are compatible with industry-standard design software including AutoCAD, Adobe Illustrator, CorelDRAW, Inkscape, Pro/E, and SolidWorks — ensuring that design geometry is accurately transferred to the cutting program without translation errors.
Different composite manufacturing industries have different accuracy requirements. Understanding where your application falls on this spectrum helps define the machine specification you actually need.
Typical tolerance requirement: ±0.5mm or better
Why accuracy matters: Structural composite parts in aerospace are designed to precise fiber orientation and ply boundary specifications. Dimensional errors in cut plies translate into fiber misalignment in the cured laminate, which reduces structural performance. For primary structure, even small deviations from design geometry can affect certification compliance.
Critical accuracy factors for aerospace:
Fiber orientation accuracy (typically ±1° or better)
Ply boundary accuracy (±0.5mm)
Repeatability across large production runs (every ply in a multi-layer kit must be identical)
Traceability (documented cutting records for quality assurance)

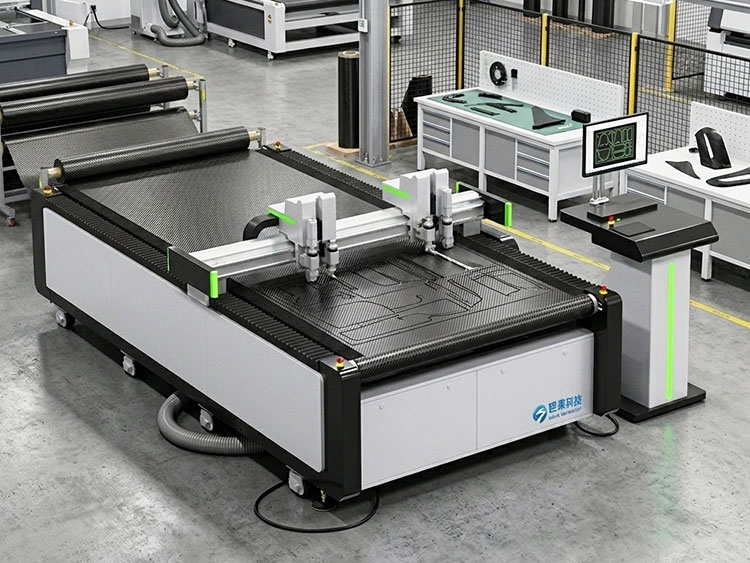

The SL1625PF Resin Prepreg Cutting Machine and SL1625AF Aramid Fabric Kevlar Cutting Machine are both specified to ±0.5mm cutting tolerance, with Japanese servo motors and Taiwan guide rails providing the drive system accuracy required for aerospace and defense applications.
Typical tolerance requirement: ±0.5mm
Why accuracy matters: Composite reinforcement panels, structural inserts, and visible carbon fiber components must fit precisely within the vehicle assembly. Dimensional variation causes fit problems at assembly, requiring rework or rejection. For high-volume automotive production, even small per-part accuracy improvements translate into significant cumulative cost savings.
Critical accuracy factors for automotive:
Consistent accuracy across high-volume production runs
Repeatability between shifts and operators (CNC eliminates operator-to-operator variation)
Nesting efficiency (high material cost at volume makes yield critical)
Typical tolerance requirement: ±0.5mm
Why accuracy matters: In soft body armor and ballistic helmets, every ply in a multi-layer ballistic pack must be dimensionally identical and correctly oriented. Dimensional variation between plies creates gaps in the ballistic protection coverage. For certified ballistic products, dimensional accuracy is a direct safety and compliance requirement — not just a quality preference.
Critical accuracy factors for ballistic protection:
Ply-to-ply repeatability in multi-layer kits
Fiber orientation accuracy
Consistent accuracy across the full working area (edge accuracy as well as center)
Typical tolerance requirement: ±0.5mm
Why accuracy matters: Wind turbine blade skins and structural components are large-format parts where absolute dimensional accuracy is somewhat less critical than in aerospace — but fiber orientation accuracy and ply boundary consistency still directly affect blade structural performance and fatigue life.
Critical accuracy factors for wind energy:
Large working area with consistent accuracy across the full table
Fiber orientation accuracy for structural plies
Throughput (large blade components require fast cutting of large material areas)
Typical tolerance requirement: ±0.5–1.0mm
Why accuracy matters: Insulation panels and duct components must fit within defined installation spaces. Oversized panels cannot be installed; undersized panels leave gaps that reduce thermal and acoustic performance. CNC cutting eliminates the measurement and marking errors that cause fit problems with manually cut insulation.
Critical accuracy factors for HVAC/insulation:
Consistent dimensional accuracy for installation fit
Complex shape cutting (duct transitions, penetration cutouts)
Throughput and nesting efficiency
Accuracy specifications on a machine datasheet are a starting point — not a guarantee. Before committing to a purchase, verify the machine's accuracy on your specific materials through a structured sample test.
Before requesting a sample test, define exactly what you will measure:
Test part geometry: Include both straight cuts and curves; include the tightest radii and most complex geometry in your actual production parts
Test material: Use your actual production material — accuracy on easy-to-cut materials does not guarantee accuracy on your specific composite
Measurement method: Specify how you will measure the cut parts (CMM, digital calipers, optical comparator)
Sample size: Cut at least 10 identical parts to assess repeatability, not just single-part accuracy
Table position variation: Cut test parts at different positions across the table — accuracy at the center does not guarantee accuracy at the edges
Any reputable composite cutting machine manufacturer should offer a factory sample test on your materials before purchase. This test should:
Use your actual design files (or representative test geometry)
Be performed on the specific machine model you are considering
Include parts cut at different table positions
Be witnessed by your technical representative if possible
After the sample test, measure the cut parts against your design dimensions:
Accuracy evaluation checklist:
Measure all critical dimensions on each test part
Calculate mean deviation and standard deviation for each dimension
Check accuracy at table edges versus table center
Inspect cut edge quality (fraying, delamination, edge straightness)
Verify fiber orientation accuracy on woven materials
Check repeatability between identical parts
Red flags in sample test results:
Accuracy at table center significantly better than at edges — indicates guide rail or frame geometry issues
Accuracy degrades on curves compared to straight cuts — indicates speed control or interpolation problems
Variation between identical parts greater than the stated tolerance — indicates repeatability problems
Edge quality problems (fraying, delamination) — indicates blade specification or parameter issues
A machine that achieves ±0.5mm when new but degrades to ±0.5mm after 18 months of production is not a ±0.5mm machine for your purposes. Ask the supplier:
What is the expected accuracy degradation over the machine's service life?
What maintenance procedures maintain accuracy over time?
What is the recalibration procedure and how often is it required?
What is the guide rail replacement interval and cost?
All Shilai composite cutting machines are built to the same core accuracy specification, with drive system and fixation configurations matched to the specific challenges of each material type:
Model | Primary Material | Cutting Tolerance | Drive System | Fixation |
Carbon fiber, fiberglass dry fabric, aramid, prepreg | ±0.5mm | Japan Servo + Taiwan Rail | High-power vacuum | |
Aramid / Kevlar fabric | ±0.5mm | Japan Servo + Taiwan Rail | High-power vacuum | |
Sticky prepreg (carbon/glass) | ±0.5mm | Japan Servo + Taiwan Rail | High-power vacuum | |
Large-format fiberglass fabric | ±0.5mm | Japan Servo + Taiwan Rail | Conveyor + vacuum | |
Fiberglass wool, mineral wool, insulation | ±0.5mm | Japan Servo + Taiwan Rail | Vacuum hold-down | |
Phenolic duct board | ±0.5mm | Japan Servo + Taiwan Rail | Vacuum hold-down |
All models are backed by a 3-year warranty and supported by Shilai's technical team for setup, calibration, and ongoing accuracy maintenance.
Even a well-specified machine can develop accuracy problems in production. Here is how to diagnose the most common issues:
Most likely cause: Kerf width compensation not set correctly in the cutting program, or blade width has changed with a blade change and compensation has not been updated.
Diagnosis: Measure the kerf width of the current blade with calipers. Verify that the cutting program's kerf compensation setting matches the measured kerf width.
Solution: Update kerf compensation in the cutting program. Establish a procedure to verify kerf compensation whenever blades are changed.
Most likely cause: Guide rail wear or geometric error — the machine's coordinate system is not perfectly square and flat across the full working area.
Diagnosis: Cut identical test parts at multiple positions across the table (center, four corners, four edge midpoints). Map the dimensional deviation at each position.
Solution: Machine recalibration — the control system's coordinate mapping must be updated to compensate for the measured geometric errors. If guide rail wear is severe, rail replacement may be required.
Most likely cause: Cutting speed too high for the curve radius — the cutting head's inertia causes it to overshoot programmed direction changes.
Diagnosis: Reduce cutting speed on curved sections by 20–30% and recut the same test geometry. If accuracy improves, speed was the cause.
Solution: Implement speed-adaptive cutting path programming — automatically reduce speed at curves and corners, return to full speed on straight sections. Most modern CNC composite cutting machines support this natively.
Most likely cause: Blade wear causing increasing fiber deflection, or material movement due to vacuum hold-down degradation (filter clogging reducing vacuum pressure).
Diagnosis: Check vacuum pressure at the start and end of the production run. Inspect blade condition at the point where accuracy degradation was first observed.
Solution: Replace blade and restore vacuum pressure. Implement mid-run blade inspection and vacuum pressure checks for long production runs.
Most likely cause: Material movement between cuts (vacuum hold-down inconsistency), or servo drive system issues (encoder feedback errors).
Diagnosis: Verify vacuum pressure is consistent between cuts. Check servo drive system error logs for position feedback errors.
Solution: If vacuum-related, inspect table surface and vacuum system for leaks. If servo-related, contact machine supplier for drive system diagnostics.
A well-configured, properly maintained CNC composite cutting machine consistently achieves ±0.5mm cutting tolerance across the full working area — for carbon fiber, fiberglass, aramid, prepreg, and insulation panel materials.
This level of accuracy is not automatic. It requires:
High-quality drive system: Japanese servo motors and precision guide rails that maintain positioning accuracy over the machine's service life
Robust material fixation: Vacuum hold-down matched to the specific material's fixation requirements
Correct blade specification: Blade geometry and condition matched to the material being cut
Optimized cutting parameters: Speed control that maintains geometric accuracy on curves and complex shapes
Maintenance discipline: Regular blade replacement, vacuum system maintenance, and periodic machine calibration
When these elements are in place, ±0.5mm is not a best-case specification — it is the consistent, production-run result that aerospace, automotive, ballistic, and industrial composite manufacturers rely on every day.
If you are evaluating a composite cutting machine for your application, the most important step is a sample test on your actual materials with your actual part geometry — measured against your actual tolerance requirements. That test, more than any datasheet specification, will tell you whether the machine delivers the accuracy your production demands.
Share your material type, part geometry, tolerance requirement, and production volume — and our technical team will configure the right cutting solution and arrange a sample test for your application.
Request a Free Cutting Accuracy Sample Test →
A well-configured CNC composite cutting machine achieves a repeatable cutting tolerance of ±0.5mm. This applies to carbon fiber, fiberglass, aramid, prepreg, and insulation panel materials when the machine is correctly set up with the right blade, vacuum hold-down, and cutting parameters for the specific material.
Yes. ±0.5mm meets the dimensional accuracy requirements for most aerospace composite ply cutting applications. Aerospace programs typically require ply boundary accuracy of ±0.5mm and fiber orientation accuracy of ±1°. A CNC composite cutting machine with Japanese servo motors and precision guide rails consistently achieves these specifications in production.
Manual cutting of composite materials typically achieves ±2–5mm accuracy, depending on the operator and method. CNC oscillating knife cutting achieves ±0.5mm — an improvement of 20–50× in dimensional accuracy. More importantly, CNC cutting maintains this accuracy consistently across every part in a production run, eliminating the operator-to-operator and part-to-part variation that is inherent in manual cutting.
The main causes of accuracy degradation over time are: guide rail wear (which causes the cutting head's actual position to deviate from its commanded position), blade wear (which causes fiber deflection rather than clean severance), vacuum hold-down degradation (which allows material movement during cutting), and thermal effects (temperature changes that cause dimensional changes in the machine frame). Regular maintenance — blade replacement, vacuum system servicing, and periodic machine calibration — maintains accuracy over the machine's service life.
On a well-maintained machine with high-quality guide rails, accuracy should be consistent across the full working area. However, guide rail wear and geometric errors can cause accuracy to be better at the table center than at the edges. When evaluating a machine, always request sample cuts at multiple table positions — not just at the center — to verify full-area accuracy.
Request a factory sample test using your actual production materials and part geometry. Cut at least 10 identical parts at multiple positions across the table. Measure all critical dimensions with calibrated instruments (digital calipers, CMM, or optical comparator). Calculate mean deviation and standard deviation for each dimension. Verify that the results meet your tolerance requirements before committing to purchase.
Yes, in most cases. If accuracy is not meeting requirements, the first steps are: verify blade condition and replace if worn; check vacuum hold-down pressure and restore if degraded; verify kerf compensation settings in the cutting program; reduce cutting speed on curves and complex geometry. If these measures do not resolve the problem, machine recalibration by the supplier's technical team is the next step.
Cutting tolerance (±0.5mm) is the maximum deviation of any cut edge from the programmed path. Repeatability is the variation between identical cuts made at different times — how consistently the machine produces the same result. A machine can have good cutting tolerance (each individual cut is close to the programmed path) but poor repeatability (the cuts are not consistently in the same position). For production manufacturing, both specifications matter: you need cuts that are accurate and consistent.
