Cutting genuine leather without wasting material requires a CNC leather cutting machine equipped with a vision nesting system. The vision system scans each hide's irregular contour, identifies defect areas (scars, holes, thin spots), and automatically arranges cut patterns within the usable area — typically improving material yield by 8–15% compared to manual layout and cutting. For genuine cowhide priced at $30–$200 per hide, this yield improvement directly reduces material cost per finished part.
This guide explains how CNC leather cutting works, why material yield is the central economic issue, and how to evaluate whether a CNC leather cutting machine is the right investment for your production.
Genuine leather is among the most expensive flexible materials in industrial manufacturing. A full cowhide ranges from 3.5 to 6 square meters, with significant variation in thickness, texture, and usable area across the hide. The belly and leg areas are typically thinner and less consistent than the back and shoulder; scars, insect bites, and brand marks create unusable zones that must be identified and avoided.
In manual cutting operations, the operator visually assesses each hide and marks cut patterns by hand or with cardboard templates. This process has three fundamental limitations:
1. Inaccurate contour assessment. The human eye cannot precisely map the boundary between usable and unusable leather across an entire hide. Operators typically add a conservative margin around defect areas, excluding more usable leather than necessary.
2. Inefficient pattern arrangement. Manual nesting — arranging patterns on the hide to minimize waste — is a complex spatial optimization problem. Even experienced operators cannot approach the mathematical optimum, particularly when cutting multiple small patterns from a single hide.
3. Operator-to-operator variation. Different operators make different nesting decisions, producing inconsistent material yield across shifts and production runs. This makes material cost per part difficult to predict and control.
The result: manual leather cutting operations typically achieve 55–70% material utilization. The remaining 30–45% of the hide is wasted.
A CNC leather cutting machine with vision nesting consistently achieves 70–85% material utilization — a yield improvement of 8–15 percentage points that directly reduces material cost per finished part.
The operator places the hide on the cutting table, hair side down. The machine's vision system — a camera array mounted above the table — captures a high-resolution image of the entire hide.
The vision software processes this image to:
Map the hide contour: identify the precise boundary of the usable leather area, including irregular edges
Detect defect zones: identify scars, holes, thin spots, and brand marks that should be avoided
Create a digital hide map: a precise representation of the usable area that the nesting software will work within
This scanning process takes 30–60 seconds for a full cowhide. The result is a digital map that captures the unique geometry of each individual hide.
The nesting software receives the digital hide map and the cut pattern library (the shapes that need to be cut from this hide). It then solves the spatial optimization problem: how to arrange the required patterns within the usable area of this specific hide to maximize yield.
The nesting algorithm considers:
Pattern geometry: the exact shape of each cut piece
Grain direction constraints: for leather goods where grain direction affects appearance or performance, patterns must be oriented correctly
Defect exclusion zones: patterns cannot be placed over identified defect areas
Minimum spacing: patterns must maintain a minimum distance from each other and from the hide edge
The software generates a nesting layout in seconds — a task that would take an experienced operator 10–20 minutes per hide, and that the software performs more accurately.
With the nesting layout confirmed, the CNC cutting head follows the programmed paths to cut all patterns from the hide. The oscillating knife severs the leather cleanly without heat, burning, or edge discoloration.
Key cutting parameters for genuine leather:
Cutting speed: 300–800mm/s depending on leather thickness and type
Blade type: straight oscillating blade for most leather types; specialized blade for thick or very hard leather
Vacuum hold-down: essential for keeping the hide flat and preventing movement during cutting — any movement translates directly into dimensional error
The cutting head can also punch holes, mark fold lines, and add reference marks in the same pass, eliminating separate operations.
After cutting, the operator lifts the cut parts from the hide. The waste leather (the material between and around the cut patterns) remains on the table and is removed separately.

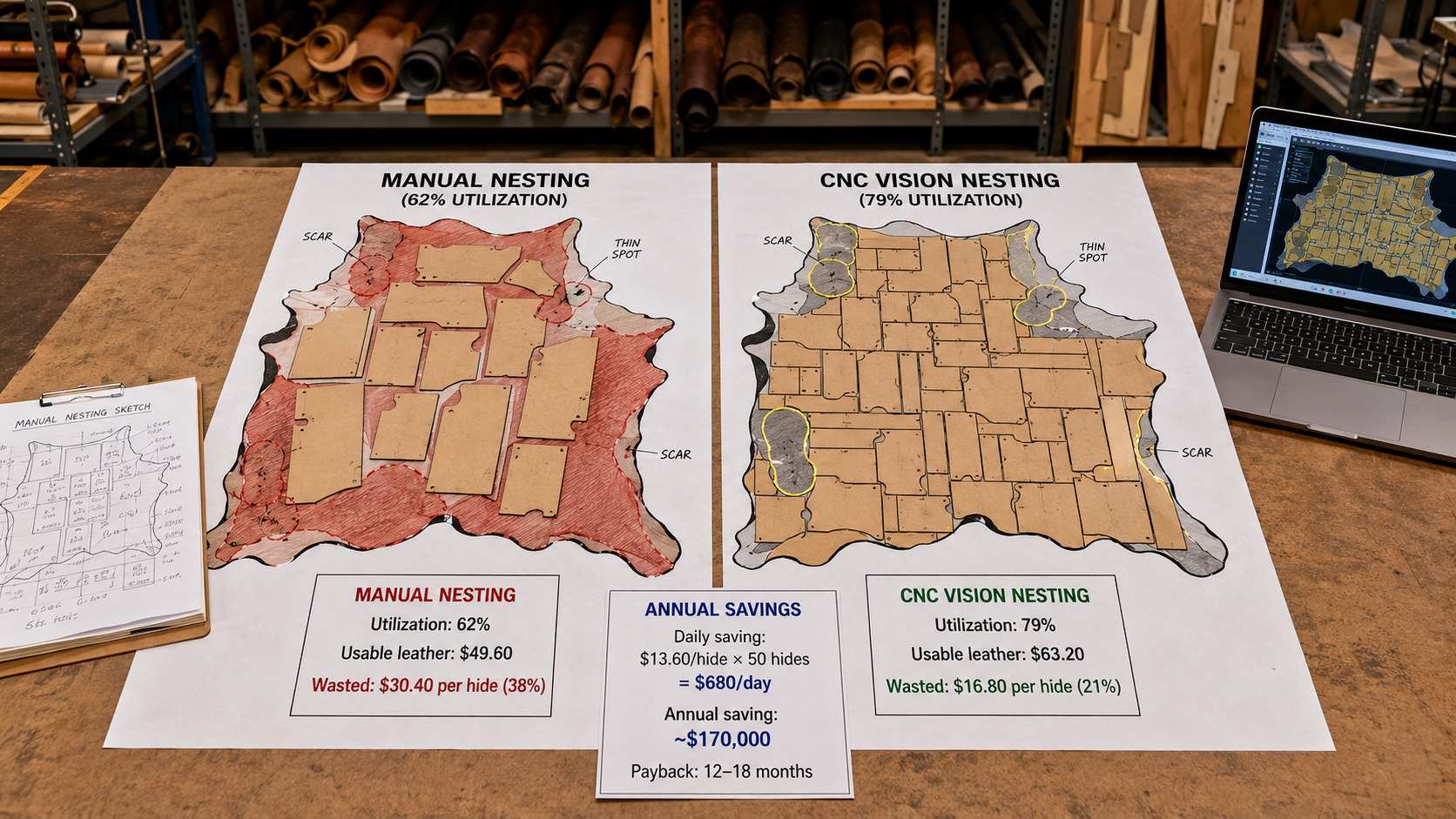

The yield improvement from CNC vision nesting is the primary economic justification for the investment. Here is a realistic comparison:
Parameter | Manual Cutting | CNC with Vision Nesting |
Material utilization | 55–70% | 70–85% |
Yield improvement | Baseline | +8–15 percentage points |
Operator skill dependency | High | Low |
Consistency across shifts | Variable | Consistent |
Time per hide (nesting + cutting) | 20–45 minutes | 5–12 minutes |
Defect avoidance accuracy | Operator-dependent | Systematic |
Pattern accuracy | ±2–5mm | ±0.1mm |
Financial impact example:
Assume a sofa manufacturer uses 50 cowhides per day, each costing $80:
Daily material cost: $4,000
At 62% manual yield: $2,480 of usable leather per day
At 78% CNC yield: $3,120 of usable leather per day
Daily material saving: $640
Annual material saving: ~$160,000
At this scale, a CNC leather cutting machine typically pays back its investment in 12–24 months from material savings alone — before accounting for labor savings and quality improvements.
Different leather types present different cutting challenges. A well-configured CNC leather cutting machine handles all of them, but the blade selection and cutting parameters must be matched to the material.
The most common leather for automotive interiors, furniture, and bags. Full-grain cowhide is the thickest and most variable — thickness can range from 0.8mm to 4mm+ across a single hide. The vision system's ability to map thickness variation and identify thin zones is particularly valuable for cowhide.
Cutting parameters: Medium oscillation frequency, straight blade, vacuum hold-down essential.
Thinner and softer than cowhide, with a more uniform thickness but more delicate surface. Used in fashion leather goods, gloves, and premium upholstery.
Cutting parameters: Lower cutting force, sharp blade critical to avoid surface marking.
Distinctive pore pattern, used in gloves, linings, and some upholstery. More uniform in thickness than cowhide.
Requires a specialized rotary cutting tool rather than an oscillating blade — the oscillating motion can tangle long fibers. Shilai's SL1830FL Fur Cutting Machine uses a rotary tool specifically designed for long-hair leather and fur.
More uniform than genuine leather — no irregular contours, no defect zones. Does not require the vision system for contour mapping, but benefits from intelligent nesting for pattern optimization. Cuts faster than genuine leather due to uniform thickness and no defect avoidance requirements.
Shilai offers a complete range of CNC leather cutting machines for different production scales and applications:
Model | Working Area | Best For | Key Feature |
Genuine Leather CNC Cutting Machine | Customizable | Cowhide, sheepskin, pigskin | Vision system, defect avoidance |
SL2530CL Digital Leather Cutting Machine | 2500×3000mm | Automotive, footwear, bags | Large format, intelligent nesting, CE certified |
SL1825AL Auto-Feed Leather Cutting Machine | 1800×2500mm | Automotive, furniture rolls | Auto-feed conveyor, 24/7 production |
SL1625CL Leather Cutting Machine | 1600×2500mm | Sofas, car seats | Conveyor feed, intelligent nesting |
SL1840CL Cowhide Cutting Machine | 1800×4000mm | Footwear, bags | Large format, multi-tool head |
SL1830FL Fur Cutting Machine | 1800×3000mm | Fur, long-hair leather | Rotary tool, auto-feed conveyor |
All models are driven by Japanese servo motors and Taiwan precision guide rails, achieving ±0.1mm cutting tolerance and backed by a 3-year warranty.
Automotive leather cutting is one of the highest-precision and highest-volume applications for CNC leather cutting machines. Car seat covers, door panels, steering wheel covers, and dashboard trim require:
Consistent pattern dimensions across large production runs (every seat cover must be identical)
Accurate grain direction alignment (visible grain lines must be consistent across assembled panels)
High throughput (automotive production schedules are demanding)
CNC cutting eliminates the operator-to-operator variation that causes fit problems in automotive leather assembly.
Sofa and chair manufacturers cut large volumes of leather for cushion covers, back panels, and arm covers. The primary economic driver is material yield — genuine leather for furniture is expensive, and even a 5% improvement in yield across a high-volume production line generates significant cost savings.
Shoe uppers, insoles, and linings require precise cutting of multiple small patterns from each hide. The combination of pattern accuracy (±0.1mm ensures consistent shoe sizing) and nesting efficiency (maximizing the number of pieces cut from each hide) makes CNC cutting essential for quality footwear production.
Handbags, wallets, belts, and accessories require cutting of complex shapes with precise dimensions. CNC cutting ensures that every piece is identical — critical for products where multiple components must align and assemble correctly.
Ask the supplier to demonstrate the vision system on your actual leather — not a demonstration hide. The system should accurately map the hide contour and identify defect zones. Compare the software's defect map against your own visual assessment of the hide.
Cut the same hide twice: once with your current manual method, once with the CNC machine. Measure the usable area cut from each method. The yield improvement should be 8–15 percentage points for genuine leather with typical defect levels.

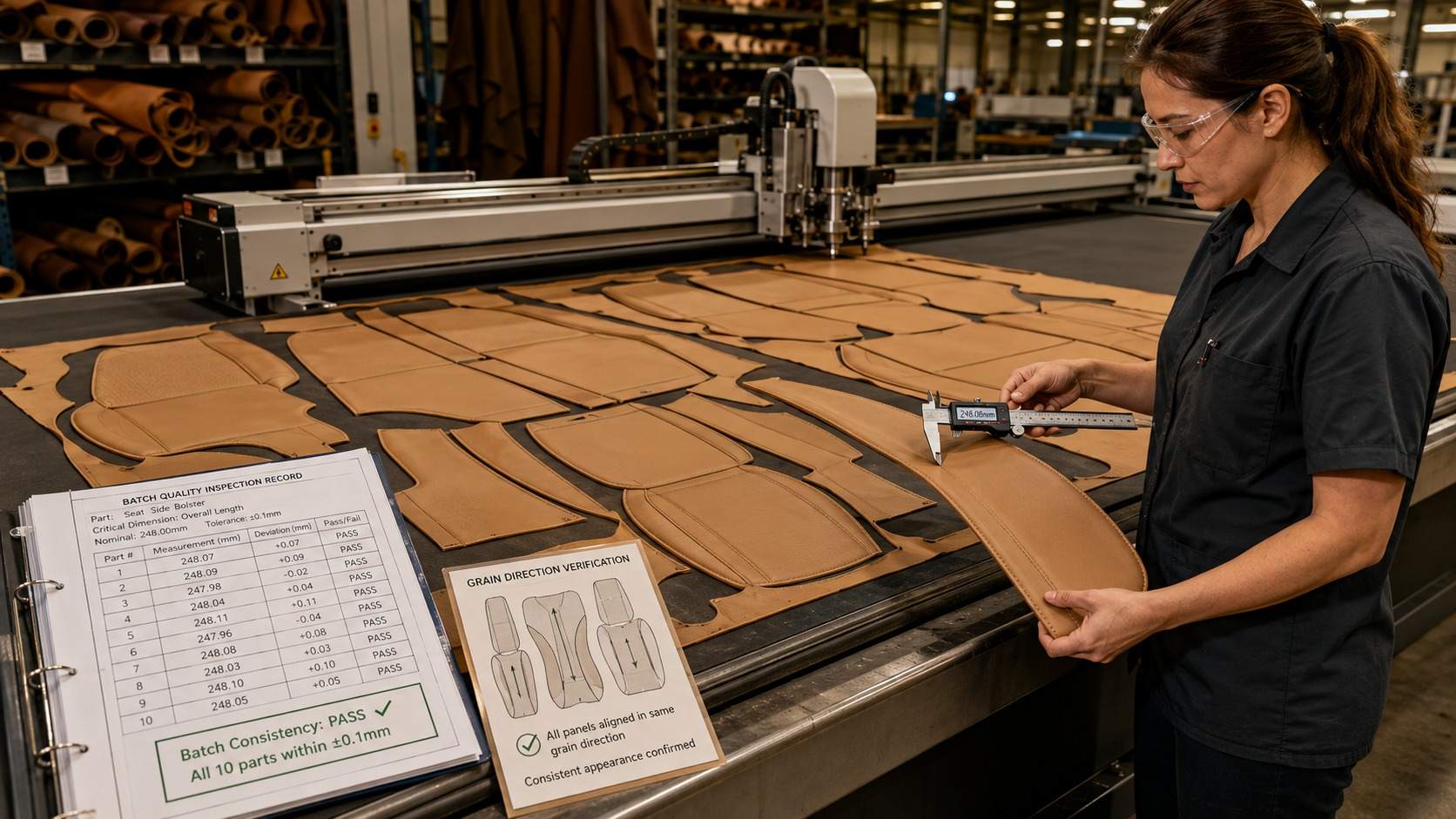

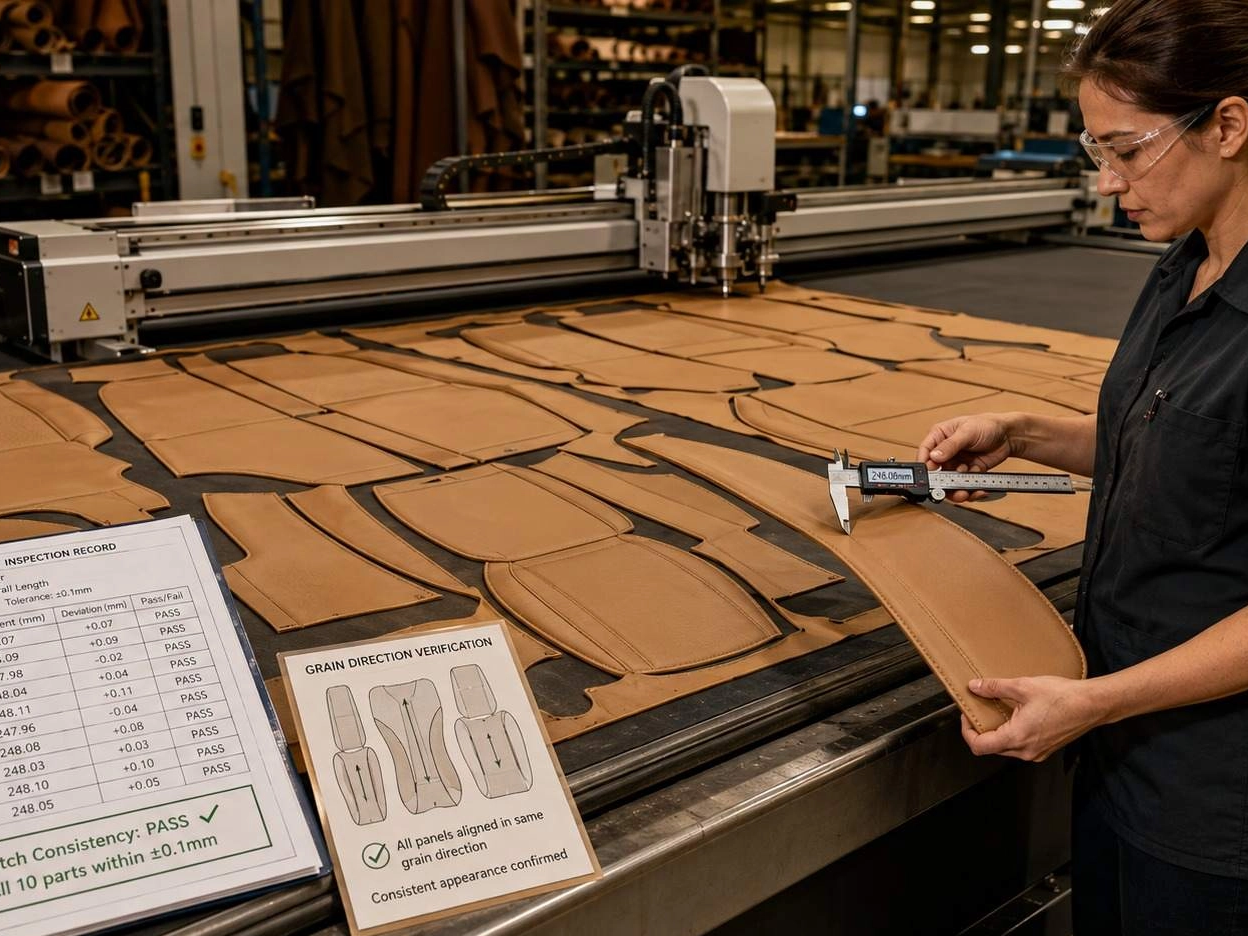

Cut 10 identical test patterns and measure all critical dimensions. Verify that all parts are within ±0.1mm of the design dimensions and that all 10 parts are dimensionally identical (repeatability).
Inspect the cut edges under magnification. The edge should be clean and smooth with no fraying, tearing, or compression marks. The edge quality should be consistent across the full hide, including near the edges where vacuum hold-down may be less effective.
The nesting software should be intuitive for your operators. Ask for a hands-on demonstration of the workflow: loading a hide scan, importing patterns, running the nesting algorithm, and approving the layout before cutting.
For manufacturers cutting genuine leather at any significant volume, a CNC leather cutting machine with vision nesting is not a luxury — it is the most direct path to reducing material cost, improving product quality, and eliminating operator-dependent variation.
The 8–15% yield improvement on genuine leather alone typically justifies the investment within 12–24 months. The additional benefits — labor savings, quality consistency, faster pattern changes, and the ability to handle complex shapes accurately — make the ROI case even stronger.
Share your leather type, product range, and daily production volume with our team, and we will recommend the right CNC leather cutting machine configuration and arrange a free sample cutting test.
Request a Free Leather Cutting Sample Test →
A CNC leather cutting machine with vision nesting typically improves genuine leather material yield by 8–15 percentage points compared to manual cutting — from approximately 55–70% utilization to 70–85%. For expensive genuine leather, this yield improvement is the primary economic justification for the investment.
Yes. Shilai CNC leather cutting machines include a vision system that scans each hide and identifies defect areas including scars, holes, thin spots, and brand marks. The nesting software automatically avoids placing cut patterns over identified defect zones, ensuring that finished parts are free from defects.
CNC leather cutting machines can handle cowhide, sheepskin, pigskin, synthetic leather (PU, PVC, microfiber), and most other leather types. Fur and long-hair leather requires a specialized rotary cutting tool rather than an oscillating blade.
Shilai CNC leather cutting machines achieve ±0.1mm cutting tolerance, driven by Japanese servo motors and Taiwan precision guide rails. This accuracy is consistent across the full working area and maintained across production runs, ensuring that every cut part is dimensionally identical.
Including scanning and nesting (30–60 seconds) and cutting (3–10 minutes depending on the number and complexity of patterns), a full cowhide can be processed in 5–12 minutes with a CNC leather cutting machine — compared to 20–45 minutes for manual layout and cutting.
