A leather vision nesting system is a camera-based scanning and software optimization system integrated into a CNC leather cutting machine. It scans each hide to map its usable boundary and identify defect areas, then automatically arranges cut patterns within the usable area to maximize material yield. In production, this system consistently delivers 8–15 percentage points more usable leather per hide compared to manual layout — a yield improvement that directly reduces material cost per finished part.
For manufacturers cutting genuine leather for automotive interiors, furniture upholstery, footwear, or leather goods, the vision nesting system is the single most impactful technology for controlling material cost. This guide explains how the system works, what each component does, how it handles different defect types, and what yield improvements are realistic in production.
Genuine leather is fundamentally different from synthetic materials as a cutting substrate. A roll of PU leather or a sheet of rubber gasket material has uniform dimensions, consistent thickness, and no defects — the nesting software simply needs to arrange patterns efficiently within a rectangular area.
A genuine leather hide is none of these things.
Irregular shape. Every cowhide, sheepskin, or pigskin has a unique, irregular outline. The belly edges are curved and uneven; the leg areas create concave indentations; the overall shape varies significantly between individual animals. There is no standard "sheet size" to nest within — each hide defines its own unique usable boundary.
Variable thickness. Thickness varies across a single hide, typically from 1.5–2.5mm on the back and shoulder to 0.8–1.2mm on the belly and legs. For applications where minimum thickness is specified (automotive seat covers, premium footwear), patterns must be placed in areas that meet the thickness requirement.
Natural defects. Every genuine hide contains defects — areas that are unusable or undesirable for finished products. Common defect types include:
Scars and healed wounds from barbed wire, insect bites, or branding
Grain irregularities — areas where the surface grain is disrupted or inconsistent
Vein marks — visible vein patterns on thin belly leather
Holes and tears — from processing damage or natural causes
Thin spots — areas where the hide is below minimum thickness specification
In manual cutting, an operator visually assesses each hide and attempts to avoid these defects when positioning cut patterns. The accuracy of this assessment — and the efficiency of the resulting pattern layout — depends entirely on the operator's experience and attention. The result is inconsistent yield and inconsistent quality.
The vision nesting system replaces this manual assessment with a systematic, repeatable, software-driven process.
The vision system uses one or more high-resolution cameras mounted above the cutting table. When the hide is placed on the table, the cameras capture a complete image of the entire hide surface.
Camera specifications that matter:
Resolution: Higher resolution enables more accurate defect detection and contour mapping. Production-grade systems use cameras with sufficient resolution to detect defects as small as 5–10mm across a full hide.
Coverage area: The camera array must cover the entire working area of the cutting table without blind spots. For large-format machines with working areas of 1600×2500mm or larger, multiple cameras are typically used and their images are stitched together by software.
Lighting: Consistent, even illumination is critical for accurate image analysis. The vision system includes controlled lighting — typically LED arrays — that eliminate shadows and reflections that would interfere with defect detection.
The scanning process takes 30–60 seconds for a full cowhide. During this time, the operator can be preparing the next hide or collecting cut pieces from the previous cycle.
The contour recognition software processes the camera image to identify the precise boundary of the usable leather area.
How contour recognition works:
The software analyzes the contrast between the hide surface and the cutting table surface
It traces the hide boundary at high resolution, capturing the irregular curves of the hide edge
It generates a digital contour map — a precise vector representation of the hide's outer boundary
This contour map defines the area within which patterns can be placed
Accuracy of contour recognition: Production-grade systems achieve contour mapping accuracy of ±2–5mm, which is sufficient for the nesting optimization purpose. The contour map is used to prevent patterns from being placed with any part outside the hide boundary — a placement error that would produce a defective part.
Defect detection is the most technically demanding component of the vision nesting system. The software must distinguish between normal leather surface variation (grain texture, natural color variation) and actual defects (scars, holes, thin spots) that should be avoided.
How defect detection works:
The software uses image analysis algorithms to identify anomalies in the hide surface. Different defect types have different visual signatures:
Defect Type | Visual Signature | Detection Method |
Scars and healed wounds | Smooth, hairless patches with different texture | Texture analysis |
Holes and tears | Dark areas with sharp boundaries | Contrast analysis |
Grain irregularities | Areas with disrupted surface pattern | Pattern analysis |
Vein marks | Linear patterns on belly leather | Line detection |
Brand marks | Geometric patterns with altered texture | Shape and texture analysis |
The software marks each identified defect as an exclusion zone — an area where cut patterns cannot be placed. The size of the exclusion zone is typically set slightly larger than the detected defect to provide a safety margin.
Defect detection sensitivity is adjustable. For premium leather goods where any surface irregularity is unacceptable, the sensitivity can be set high — identifying and excluding even minor grain variations. For industrial applications where only structural defects matter, sensitivity can be set lower to maximize yield by allowing minor cosmetic variations.
Operator review and override. After automated defect detection, the operator reviews the defect map on screen and can manually add or remove exclusion zones. This human review step catches defects that the automated system may miss (particularly subtle grain variations) and removes false positives (areas the system flagged as defects but that are actually acceptable).
With the contour map and defect exclusion zones defined, the nesting software solves the optimization problem: how to arrange the required cut patterns within the usable area to maximize material yield.
The nesting optimization problem:
Given:
A usable area defined by the hide contour minus defect exclusion zones
A set of patterns to be cut (with defined shapes, sizes, and constraints)
Constraints on each pattern (grain direction, minimum spacing, etc.)
Find:
The arrangement of patterns that maximizes the number of patterns cut from this hide (or minimizes the waste area)
This is a computationally complex optimization problem — mathematically related to the "bin packing" problem, which is NP-hard. The nesting software uses heuristic algorithms (genetic algorithms, simulated annealing, or proprietary optimization methods) to find near-optimal solutions in seconds.
Constraints the nesting software handles:
Grain direction: Patterns that must be cut with the grain running in a specific direction (e.g., seat back panels must have grain running vertically) are constrained to the correct orientation. The software respects this constraint while still optimizing placement.
Minimum spacing: Patterns must maintain a minimum distance from each other and from the hide edge to ensure clean cuts and structural integrity of the leather between pieces.
Pattern priority: If the hide cannot accommodate all required patterns, the software prioritizes higher-value or more critical patterns.
Defect exclusion: No part of any pattern can overlap with a defect exclusion zone.
Thickness zones: For applications with minimum thickness requirements, patterns can be constrained to areas of the hide that meet the thickness specification (requires integration with thickness mapping, an advanced feature).

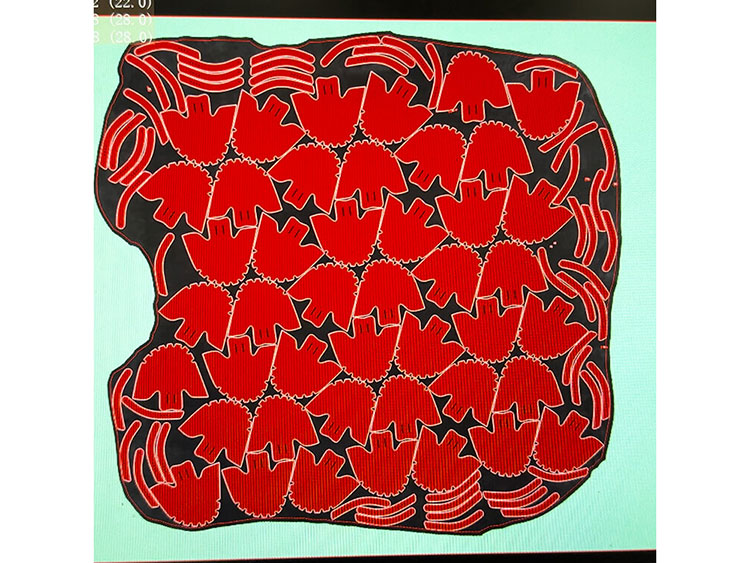

Nesting result: The software generates a visual layout showing all patterns positioned on the hide, with color-coded indicators for each pattern. The operator reviews the layout, can make manual adjustments if needed, and approves it for cutting. The approved layout is then sent to the CNC cutting machine as a cutting program.
The yield improvement from vision nesting comes from two sources: more accurate contour mapping (using more of the hide's actual usable area) and more efficient pattern arrangement (fitting more patterns into the available area).
In manual cutting, operators typically add a conservative safety margin around the hide edge — avoiding the last 20–40mm of the hide perimeter to ensure patterns do not extend beyond the usable area. This conservative approach wastes a significant strip of usable leather around the entire hide perimeter.
For a typical cowhide with a perimeter of approximately 5,000mm, a 25mm average safety margin wastes approximately 0.125 m² of usable leather — roughly 3–5% of the hide's total area.
The vision system maps the hide contour to ±2–5mm accuracy, allowing patterns to be placed within 5–8mm of the actual hide edge. This alone recovers 2–4% of usable leather compared to manual conservative margins.
The nesting software's optimization algorithm consistently outperforms manual pattern arrangement. The improvement is most significant when:
Many small patterns are being cut from a single hide (footwear components, small leather goods parts) — the software can find arrangements that a human would not consider
Irregular pattern shapes create complex fitting challenges — the software evaluates thousands of possible arrangements to find the best fit
Multiple pattern types are being cut simultaneously — the software can mix different pattern types to fill gaps that would be wasted with single-pattern cutting
Typical improvement from software nesting vs. manual arrangement: 5–12 percentage points, depending on pattern complexity and mix.
Yield Component | Manual Cutting | Vision Nesting CNC |
Contour utilization | Conservative — 20–40mm margin | Precise — 5–8mm margin |
Defect avoidance accuracy | Operator-dependent | Systematic |
Pattern arrangement efficiency | Human optimization | Algorithm optimization |
Typical total yield | 55–70% | 70–85% |
Yield improvement | Baseline | +8–15 percentage points |
Typical hide usage: 60–150 hides per day for a mid-size automotive leather supplier
Typical hide cost: $80–$150 per hide (automotive-grade cowhide)
Yield improvement: 10–13 percentage points
At 100 hides/day × $120/hide × 11% yield improvement × 250 working days:
Annual material saving: ~$330,000
For automotive suppliers, this yield improvement is the primary financial justification for CNC leather cutting machine investment. The payback period is typically 3–8 months from material savings alone.
Typical hide usage: 20–80 hides per day for a sofa manufacturer
Typical hide cost: $60–$120 per hide
Yield improvement: 8–12 percentage points
Furniture leather cutting often involves large panels (seat cushion covers, back panels) where the nesting challenge is fitting large patterns efficiently around the hide's irregular edges and defect zones.
Typical hide usage: 30–100 hides per day for a shoe manufacturer
Typical hide cost: $50–$100 per hide
Yield improvement: 10–15 percentage points
Footwear cutting involves many small patterns (uppers, linings, tongue pieces, heel counters) from each hide. The large number of small pieces makes the nesting optimization problem particularly complex — and the software's advantage over manual arrangement is greatest in this scenario.
Typical hide usage: 10–40 hides per day
Typical hide cost: $80–$200 per hide (premium leather for luxury goods)
Yield improvement: 8–13 percentage points
For luxury leather goods where hide cost is highest, even a modest yield improvement generates significant cost savings. The defect avoidance capability is particularly valuable — a scar or grain irregularity on a luxury handbag is a quality rejection, and systematic defect avoidance reduces rework and rejection rates.
Not all CNC leather cutting machines include a vision system. Some machines use standard nesting software — which optimizes pattern arrangement on a rectangular area — without the camera-based hide scanning.
Feature | Standard Nesting | Vision Nesting |
Pattern arrangement optimization | ✅ Yes | ✅ Yes |
Hide contour mapping | ❌ No — assumes rectangular area | ✅ Yes — maps actual hide shape |
Defect detection and avoidance | ❌ No | ✅ Yes |
Suitable for genuine leather | ❌ Limited — wastes irregular edges | ✅ Yes — full hide utilization |
Suitable for synthetic leather | ✅ Yes — uniform rectangular material | ✅ Yes |
Suitable for composite fabrics | ✅ Yes | ✅ Yes (without defect detection) |
Standard nesting is appropriate for: Synthetic leather (PU, PVC, microfiber), composite fabrics, foam sheets, gasket sheets — any material that comes in uniform rectangular format without defects.
Vision nesting is required for: Genuine leather (cowhide, sheepskin, pigskin) — any material with irregular shape and natural defects.
This is why Shilai's CNC leather cutting machines for genuine leather include the vision system as a core component, while machines for composite materials, foam, and gaskets use standard nesting software optimized for their respective materials.
For comparison, the intelligent nesting software used in Shilai's composite material cutting machines optimizes pattern layout on rectangular fabric rolls and sheets — achieving material savings of up to 15% through efficient arrangement, but without the hide contour and defect detection capabilities that genuine leather requires.
The vision nesting system is designed to integrate into existing production workflows with minimal disruption.
Design file compatibility:
The nesting software accepts standard design file formats used in leather goods and automotive design:
DXF (AutoCAD)
AI (Adobe Illustrator)
SVG
CorelDRAW (CDR)
PLT
Pattern libraries can be built up over time — once a pattern is imported and configured (with grain direction constraints, priority settings, etc.), it is stored in the software library and available for all future cutting jobs.
Workflow for a typical production run:
Select patterns from the library for the current production order
Place hide on cutting table
Scan — camera captures hide image (30–60 seconds)
Review — operator checks defect map, makes adjustments if needed (1–2 minutes)
Nest — software generates optimized layout (10–30 seconds)
Approve — operator confirms layout
Cut — CNC machine cuts all patterns (3–10 minutes per hide)
Collect — operator removes cut pieces and waste
Total time per hide: 5–15 minutes, compared to 20–45 minutes for manual layout and cutting.
Not all vision nesting systems perform equally. When evaluating a CNC leather cutting machine with vision nesting, assess these specific capabilities:
Ask the supplier to demonstrate defect detection on a hide with known defects. The system should:
Identify all significant defects (scars, holes, grain irregularities)
Produce minimal false positives (flagging acceptable leather as defective)
Allow operator review and manual correction
A system with poor defect detection — either missing real defects or generating excessive false positives — will either produce defective parts or waste usable leather.
Request a yield comparison test: cut the same hide twice, once with manual nesting and once with the vision nesting system, using the same pattern set. Measure the number of patterns cut from each method. The vision nesting system should consistently produce 8–15% more patterns from the same hide.
Scan time directly affects production throughput. A system that takes 3–5 minutes to scan a hide creates a bottleneck that limits the machine's effective cutting capacity. Production-grade systems complete hide scanning in 30–60 seconds.
The operator interface should be intuitive. Operators should be able to review the defect map, make adjustments, and approve the nesting layout in 1–3 minutes without specialized training. Complex or unintuitive software increases the risk of operator errors and slows production.
The vision system and cutting machine should be fully integrated — the nesting layout should transfer directly to the cutting program without manual file conversion or re-entry. Any manual step in this transfer introduces error risk and adds time.
Shilai's genuine leather cutting machines integrate the vision nesting system as a standard feature, with camera arrays, defect detection software, and nesting optimization all configured for production use.
The full range of Shilai leather cutting machines includes models for every production scale and application:
Model | Working Area | Vision System | Best For |
Natural Genuine Leather CNC Cutting Machine | Customizable | ✅ Full vision nesting | Cowhide, sheepskin, pigskin — all genuine leather |
Genuine Leather Digital CNC Cutting Machine | Customizable | ✅ Full vision nesting | Genuine + synthetic leather, defect avoidance |
SL2530CL Digital Leather Cutting Machine | 2500×3000mm | ✅ Intelligent nesting | Automotive, footwear, bags — CE certified |
SL1825AL Auto-Feed Leather Cutting Machine | 1800×2500mm | ✅ Nesting software | High-volume automotive and furniture rolls |
SL1625CL Leather Cutting Machine | 1600×2500mm | ✅ Nesting software | Sofas, car seats, conveyor production |
SL1840CL Cowhide Cutting Machine | 1800×4000mm | ✅ Nesting software | Footwear, bags, large-format hide cutting |
SL1630AL Saddle Leather Cutting Machine | 1600×3000mm | ✅ Nesting software | Thick saddle leather, furniture, luxury goods |
All models are driven by Japanese servo motors and Taiwan precision guide rails, achieving ±0.1mm cutting tolerance with a 3-year warranty.
A leather vision nesting system is not an optional add-on for genuine leather cutting — it is the core technology that makes CNC leather cutting economically compelling. Without it, a CNC machine cuts leather more accurately than manual methods but does not address the fundamental yield problem. With it, the combination of accurate contour mapping, systematic defect avoidance, and algorithm-driven pattern optimization consistently delivers 8–15% more usable leather from every hide.
For manufacturers cutting genuine leather at any meaningful volume — whether for automotive interiors, furniture, footwear, or leather goods — the vision nesting system transforms material cost from a variable, operator-dependent expense into a controlled, optimized production parameter.
If you are evaluating CNC leather cutting machines and want to understand how the vision nesting system would perform on your specific hides and patterns, the most direct path is a sample test. Send us your leather samples and pattern files, and we will demonstrate the yield improvement on your actual production materials.
Request a Free Leather Vision Nesting Sample Test →
A leather vision nesting system is a camera-based scanning and software optimization system integrated into a CNC leather cutting machine. It scans each hide to map its usable boundary and identify defect areas (scars, holes, grain irregularities), then automatically arranges cut patterns within the usable area to maximize material yield — typically improving yield by 8–15 percentage points compared to manual layout.
The vision system uses image analysis algorithms to identify anomalies in the hide surface. Different defect types have different visual signatures: scars appear as smooth, hairless patches; holes create dark areas with sharp boundaries; grain irregularities show as disrupted surface patterns. The software marks each detected defect as an exclusion zone that the nesting algorithm avoids when placing cut patterns.
In production, a leather vision nesting system typically improves genuine leather material yield by 8–15 percentage points — from approximately 55–70% with manual cutting to 70–85% with CNC vision nesting. The improvement comes from two sources: more accurate hide contour utilization (using more of the hide's actual usable area) and more efficient pattern arrangement by the optimization algorithm.
The hide contour mapping and defect detection components of the vision system are specific to genuine leather — synthetic leather comes in uniform rectangular format without irregular contours or natural defects. However, the nesting optimization software is fully applicable to synthetic leather, PU leather, and PVC leather, optimizing pattern arrangement on rectangular rolls or sheets to minimize waste.
Production-grade leather vision systems complete hide scanning in 30–60 seconds. After scanning, the operator reviews the defect map (1–2 minutes), the nesting software generates the optimized layout (10–30 seconds), and the operator approves it. Total time from placing the hide to beginning cutting is typically 2–4 minutes.
Yes. After automated defect detection, the operator reviews the defect map on screen and can manually add exclusion zones (for defects the system missed) or remove them (for areas the system flagged as defective but that are actually acceptable). This human review step is an important quality control layer that combines the consistency of automated detection with the judgment of an experienced operator.
Shilai's leather nesting software accepts DXF (AutoCAD), AI (Adobe Illustrator), SVG, CorelDRAW, and PLT formats — the standard design file formats used in automotive, footwear, and leather goods production.
