Author: Win Zhang Publish Time: 2026-07-28 Origin: SLCNC
Gustin runs a company in Argentina that manufactures engine gaskets, with a particular focus on racing engine gaskets. His main production line relies on hydraulic die-cutting machines, which make excellent sense at volume. But when I looked closely at what he was actually dealing with, the real problem wasn't his high-volume production at all — it was everything that happens before it: samples, qualification runs, and orders so small that some were literally a single piece.
I want to walk through why that gap matters so much for a gasket cutting machine decision, what the actual cost and time difference looks like between hydraulic die-cutting and vibrating knife cutting for small orders, and why our gasket nesting software became one of the most valuable parts of the conversation with Gustin.
If your gasket production relies on hydraulic dies and you're regularly asked for samples, prototypes, or small-batch orders before a buyer commits to volume, this case should map closely onto your own situation.
Gustin's company produces engine gaskets, with racing engine applications as a core focus — a segment where buyers routinely require a sample gasket for testing and validation before placing a production order, and where some orders never reach high volume at all.
His high-volume production runs on hydraulic die-cutting machines, which are genuinely the right tool for that job — they're fast and cost-efficient once a die exists and the order quantity justifies it. The problem is what happens before that: many buyers need a sample first, and some orders are so small — occasionally just one piece — that running them through a hydraulic die-cutting process doesn't make economic sense at all.

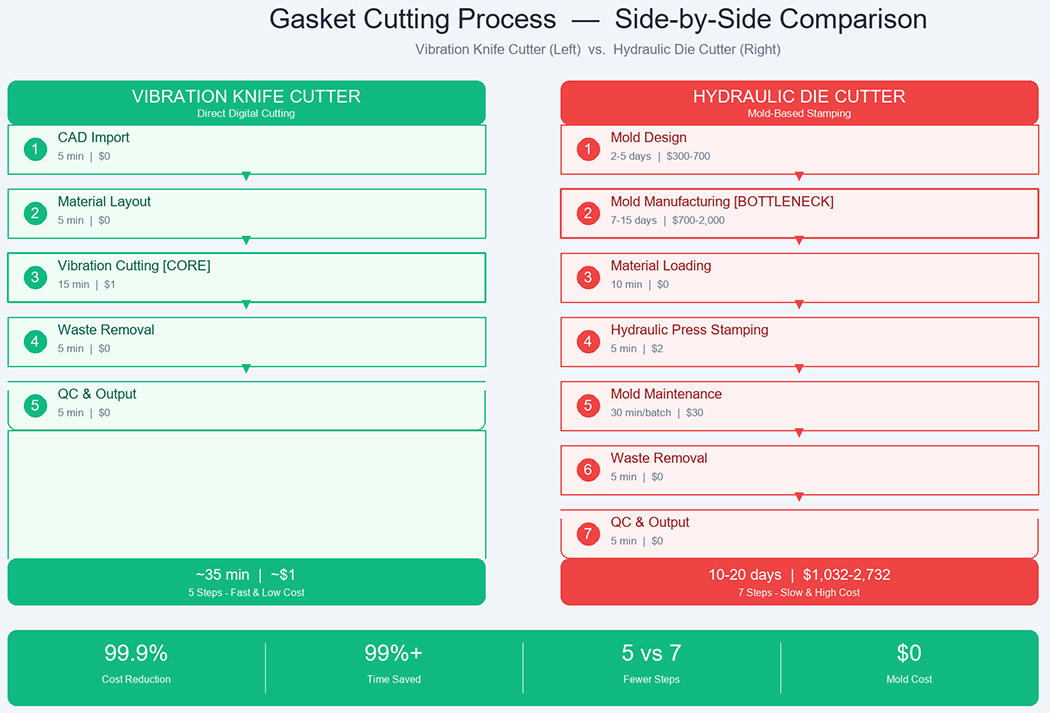

To make the problem concrete, here's the actual side-by-side comparison for cutting a small quantity of gaskets using each method.
Vibrating knife cutting (direct digital cutting):
CAD import — 5 min, $0
Material layout — 5 min, $0
Vibration cutting (core step) — 15 min, $1
Waste removal — 5 min, $0
QC & output — 5 min, $0
Total: roughly 35 minutes, about $1, in 5 steps.
Hydraulic die-cutting (mold-based stamping):
Mold design — 2-5 days, $300-700
Mold manufacturing (the bottleneck) — 7-15 days, $700-2,000
Material loading — 10 min, $0
Hydraulic press stamping — 5 min, $2
Mold maintenance — 30 min/batch, $30
Waste removal — 5 min, $0
QC & output — 5 min, $0
Total: roughly 10-20 days and $1,032-2,732, in 7 steps.
That's a cost reduction of roughly 99.9% and a time savings of over 99% by switching to vibrating knife cutting for a sample or small order — not because hydraulic die-cutting is a bad process, but because it's the wrong process for a job that doesn't need a mold at all. Every design revision on a hydraulic die means a new mold and another multi-week wait. A vibrating knife cutting machine reads the CAD file directly and cuts it the same day, with zero mold cost.

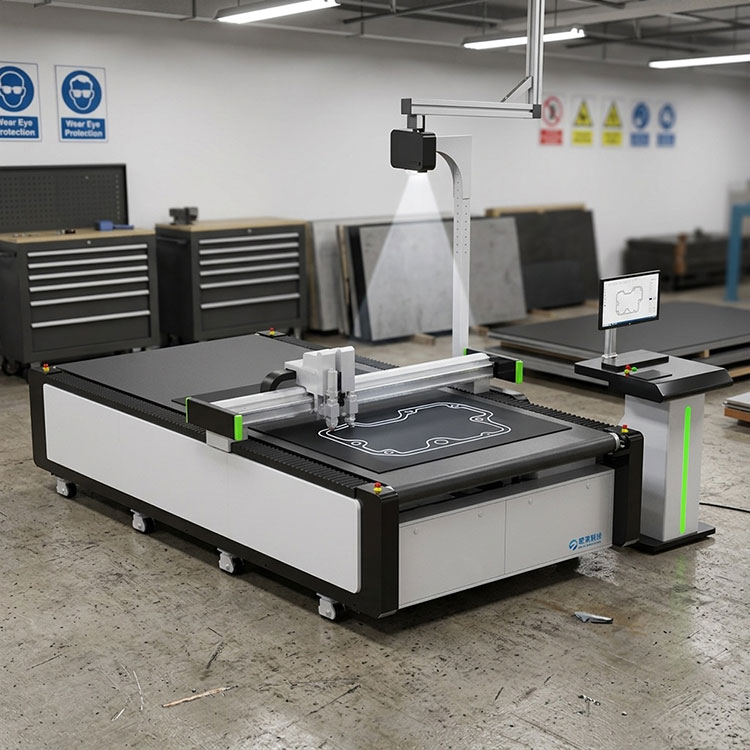

This is exactly why Gustin, despite already owning die-cutting equipment for volume production, needed a separate vibrating knife cutting machine dedicated to sampling, qualification runs, and small orders that will never justify a mold.
One detail from our conversation stood out to me: Gustin was genuinely excited about our gasket nesting software, and once I understood his business, it made complete sense why.

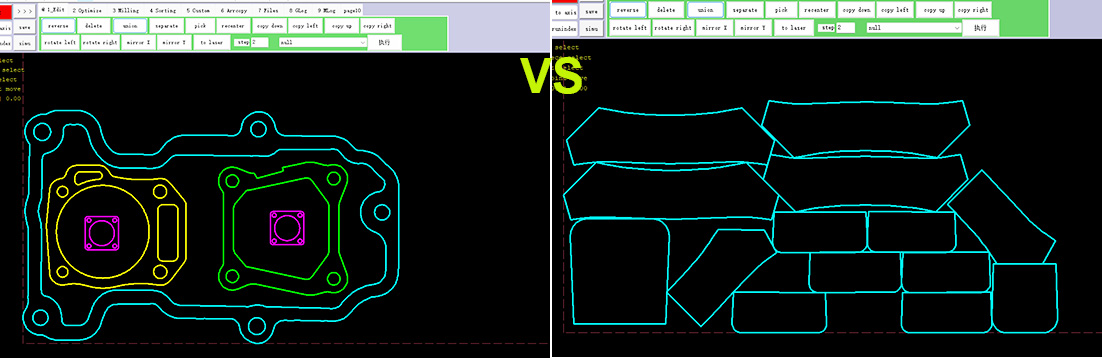

Standard layout software arranges parts by placing them at the minimum practical distance from each other on a sheet — efficient, but still leaving unused material around irregular shapes. Our gasket nesting software works differently: it identifies the waste areas inside and around larger, irregularly shaped parts and fits smaller gasket pieces directly into those waste zones, giving that scrap material a second use instead of discarding it.
For a gasket manufacturer, raw material is a direct, recurring cost on every job, so material utilization isn't a minor software feature — it's a line item on the P&L. Better nesting means lower material cost per gasket, on every single cutting run, which compounds significantly for a business processing custom orders continuously.
This is a fair question, and the honest answer comes down to supply chain response speed rather than anything mysterious. Custom part fabrication in China benefits from an extremely dense, integrated manufacturing supply chain, so digital cutting equipment like vibrating knife machines is widely available and can go from a CAD file to a finished sample in hours rather than days. In many other regions, sourcing a one-off custom gasket sample or small-batch run still means finding and coordinating with a separate fabrication shop — which reintroduces the same delay and cost problem a mold-based process has.
For a business like Gustin's, where sample turnaround directly affects whether a customer commits to a production order, owning the capability in-house rather than depending on an external shop's schedule is the more reliable option.
If your production model looks like Gustin's — hydraulic dies for volume, but a steady stream of sample requests, qualification orders, or genuinely small batches — the math above is the case for adding a vibrating knife gasket cutting machine alongside your existing equipment, not replacing it:
No mold cost or mold lead time for one-off or low-volume orders
Same-day turnaround from CAD file to finished gasket
Material savings on every job through waste-zone nesting, not just on large runs
The flexibility to say yes to a one-piece order without it being a financial loss
Every gasket operation has a different mix of material types, sheet sizes, and order volume patterns — which means the right working table size and tool configuration will vary. Share your typical sample and small-order gasket sizes and materials with my team, and we'll recommend a configuration suited to filling the gap your die-cutting line can't cover economically, the same way we did for Gustin.
