SL1625CF
SLCNC
|
| |
Product Description
Cutting dry carbon fiber and other advanced technical textiles is a process where precision is not a feature—it's a fundamental requirement. Manual cutting is slow, inconsistent, produces material fraying, and leads to significant waste of high-cost materials. For manufacturers in aerospace, automotive, and other high-performance sectors, these inefficiencies are a direct barrier to profitability and quality.

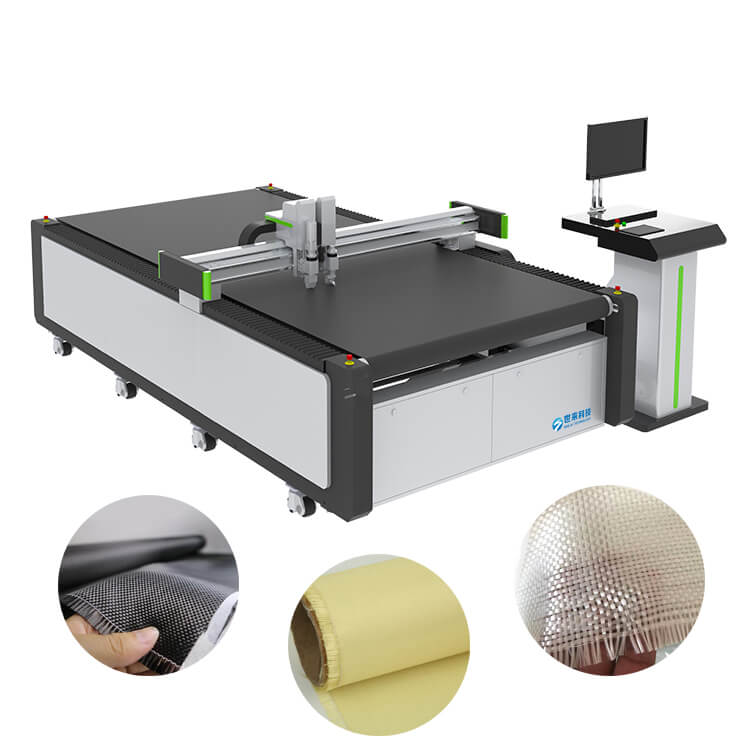

The SL1625CF Automated Cutting Machine is the definitive answer to these challenges. Engineered from the ground up for composite manufacturing, it combines a state-of-the-art auto-feeding conveyor system with specialized cutting tools and intelligent software. It is a complete, end-to-end solution designed to transform your production from a manual, error-prone process into a seamless, automated, and highly profitable operation.
Our experience working with leading composite fabricators has been engineered directly into the SL1625CF.
The SL1625CF features an automated feeding conveyor work table. This system synchronizes with the cutting process to automatically advance material from the roll, enabling continuous, unattended cutting of long or nested jobs. This eliminates the downtime associated with manually loading individual sheets, dramatically increasing throughput for high-volume production environments.
Dry carbon fiber and aramid fabrics are notorious for fraying when cut with the wrong tool. Our machine is equipped with a specialized rotary cutting tool (round knife) that rolls through the material, delivering a clean, precise cut without pulling or distorting the delicate weave. This fray-free edge is critical for ensuring the quality and structural integrity of your composite layups.
Advanced composites are expensive. Every square centimeter saved is profit earned. The included intelligent nesting software is a powerful financial tool. It automatically analyzes all the parts in your cut list and arranges them in the most compact layout possible, minimizing material consumption and maximizing your yield from every roll.

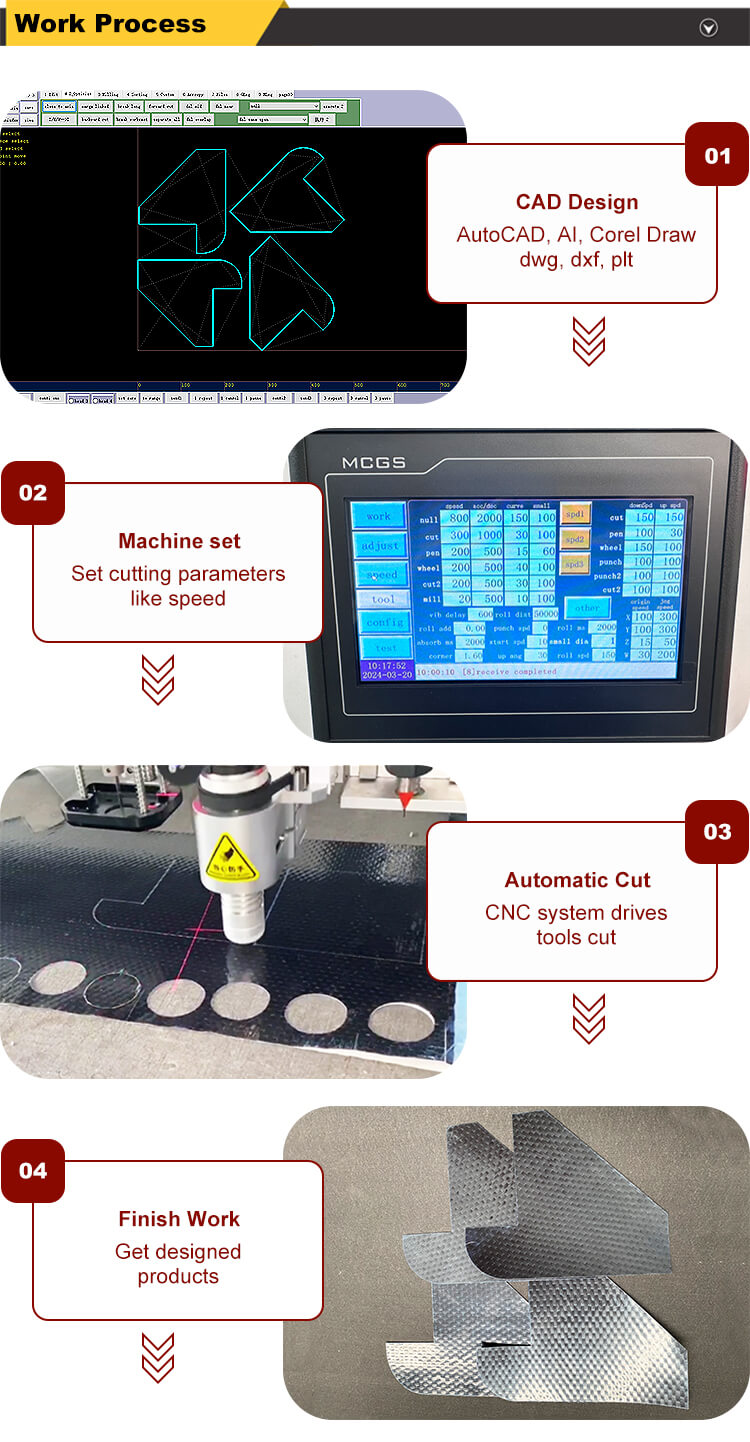

Efficiency is about completing more tasks in a single process. The versatile tool head can be equipped with a cutting tool, a punching tool, and a marking pen. This allows you to not only cut complex patterns but also create precise holes and draw part numbers or alignment marks for the layup process—all in one automated job, ensuring perfect accuracy and saving valuable production time.
| Parameter | Specification |
|---|---|
| Model | SL1625CF |
| Working Area | 1600mm × 2500mm (Customizable for wider rolls) |
| Work Table | Auto Feeding Conveyor Table |
| Working Tools | Cutting Tool, Punching Tool, Marking Tool |
| Material Fixation | High-Power Vacuum Pump |
| Max Cutting Speed | ≤1500mm/s |
| Software Compatibility | AutoCAD, AI, CorelDRAW, Inkscape, Pro/E, SolidWorks |
| Cutting Tolerance | ±0.1mm |
| Max Cutting Thickness | ≤40mm |
| Drive System | Japan Servo Motor, Taiwan Guide Rail & Rack |
| Software Suite | Machine Control Software, Intelligent Nesting Software |
| Safety Device | Emergency Switches, Anti-Collision Device, Infrared Sensors |
| Rated Power | 11KW |
| Gross Weight | 1500kgs |
| Warranty | 3 Years |
The SL1625CF is the proven choice for manufacturers who demand the highest standards of quality and efficiency.
Aerospace: Precisely cutting multi-layer kits for fuselage components, wing panels, stringers, and interior elements.
Automotive & Motorsport: Fabricating patterns for monocoque chassis, body panels, aerodynamic parts, and interior trim.
Sports Equipment: Producing components for high-performance bicycle frames, hockey sticks, skis, and protective gear.
Medical: Creating custom shapes for advanced prosthetics, orthotics, and carbon fiber components for medical imaging equipment.
Industrial & Chemical: Manufacturing strong, lightweight structural components and chemical-resistant parts.
Applicable Materials: Dry Carbon Fiber, Fiberglass (E-glass, S-glass), Aramid Fiber (Kevlar®), Pre-impregnated Fabrics (Prepreg), and other technical textiles.
We provide more than just a machine; we deliver a comprehensive, one-stop solution backed by industry-leading authority and trust.
Expert Consultation: Our team has deep experience in composite cutting. We work with you to configure the perfect machine, tooling, and workflow for your specific materials and production goals.
A Fully Integrated System: You receive a turnkey solution—the machine, control software, nesting software, and tooling—all designed to work together seamlessly from day one.
Global Installation & On-Site Training: Our certified technicians provide professional installation and comprehensive on-site training for your team, ensuring you achieve maximum productivity and ROI.
Authoritative 3-Year Warranty: We demonstrate our confidence in our engineering and build quality with an unmatched 3-year warranty, providing you with long-term security and peace of mind.
Lifetime Technical Support: Our commitment to your success is permanent. You gain a trusted partner with lifetime access to our expert technical support team.
Stop letting manual processes limit your quality and growth. Discover how the SL1625CF can deliver the speed, precision, and material savings your business needs to lead the market.
Contact us today to discuss your application with an expert and receive a free material test cut.
Request Your Free Test Cut & Quote!
