SL1625PC
SLCNC
In the advertising and printing industry, precision is non-negotiable. Misaligned cuts on expensive printed media lead to costly reprints, missed deadlines, and frustrated clients. Manually aligning graphics for cutting is slow, prone to human error, and simply cannot keep up with the demands of modern production. You need a cutting solution that is as precise as your printer.

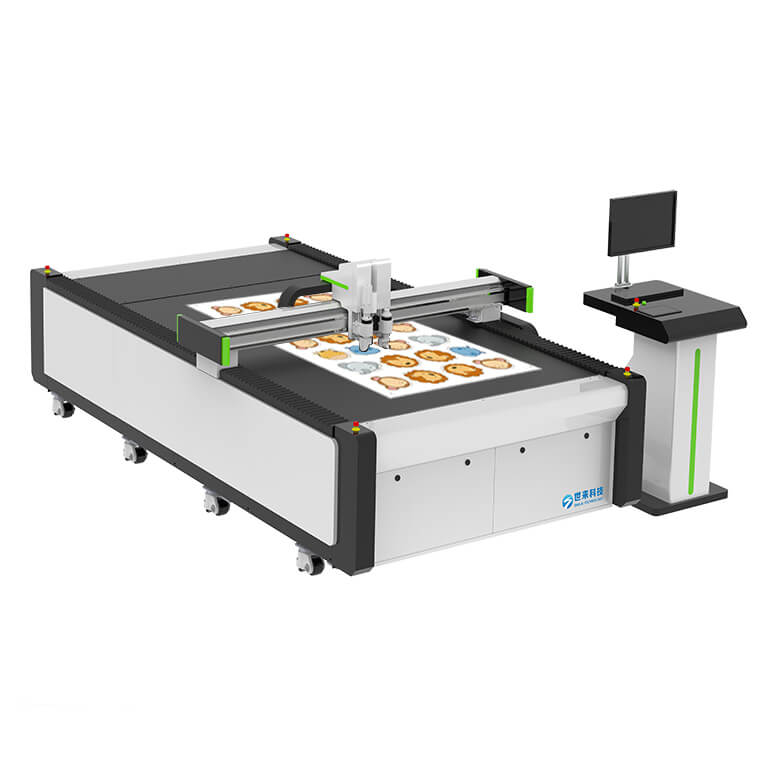

The SL1625PC Flatbed Digital Cutter is your automated finishing solution, engineered for a perfect print-and-cut workflow. Featuring an advanced CCD vision camera, it intelligently reads registration marks on your printed media, automatically aligning the cutting path to your graphics with pinpoint accuracy. It eliminates guesswork, eradicates waste, and transforms your finishing process into a fast, reliable, and profitable operation.
The SL1625PC is designed to be the perfect partner to your flatbed printer.

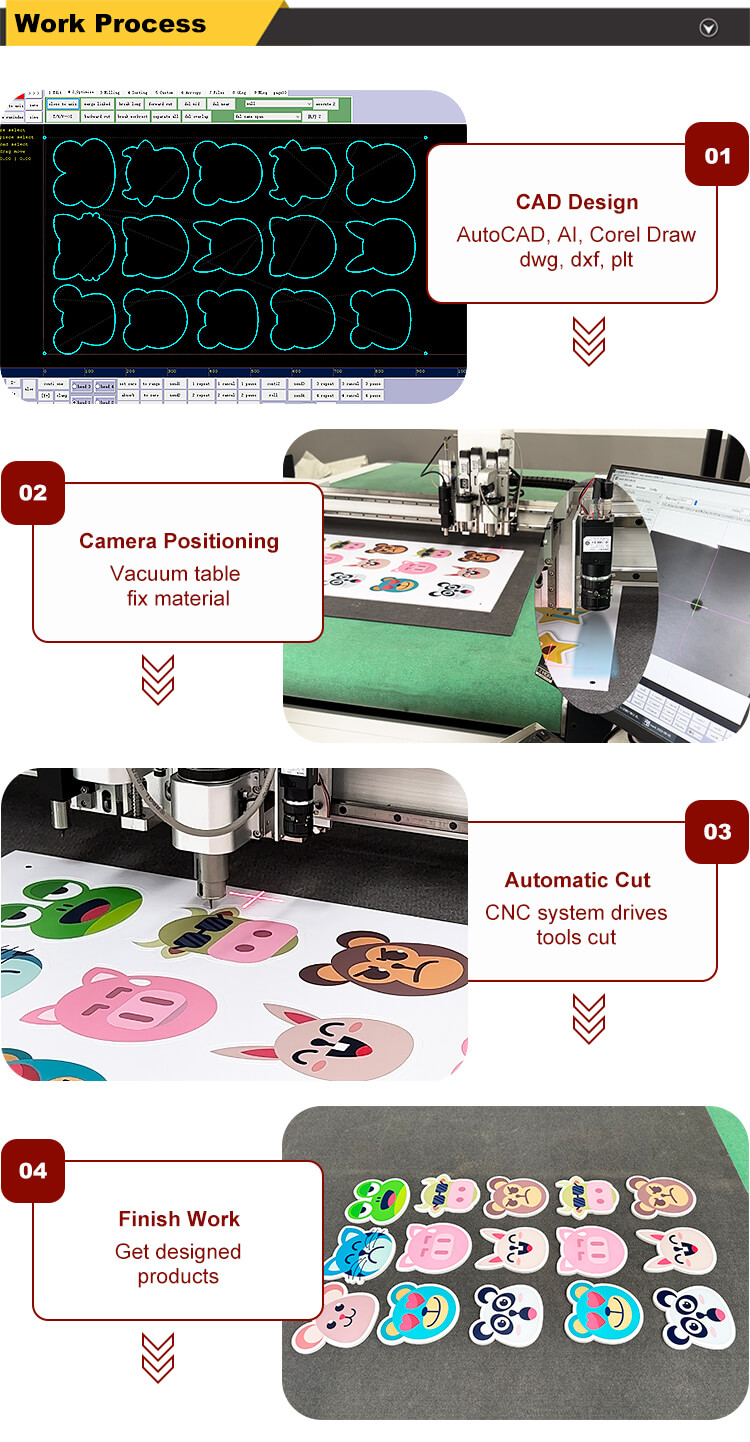

This is the heart of your automated workflow. The high-resolution CCD camera automatically locates printed registration marks on the material. The intelligent software then instantly compensates for any skew, scaling inconsistencies, or positioning drift that may have occurred during the printing process. The result is a perfect contour cut that follows your artwork precisely, every single time. No more manual alignment, no more wasted material.
The SL1625PC is equipped with a versatile toolset designed specifically for the wide range of materials used in modern advertising:
High-Frequency Cutting Tool: Powers through rigid and semi-rigid substrates like KT foam, sunboard, acrylic, and corrugated plastics, delivering clean, sharp edges for signs and displays.
Precision Kiss-Cut Tool: Cuts the top layer of self-adhesive vinyl and labels without penetrating the backing paper. It’s the perfect tool for producing sticker sheets, vehicle decals, and vinyl lettering with exceptional speed and consistency.
With a maximum cutting speed of 1500mm/s and a large 1600mm x 2500mm work area, the SL1625PC is built for serious throughput. Process full sheets of material from your printer in a single run. The powerful vacuum table holds media securely in place, while the included nesting software optimizes your layouts to maximize material yield, reducing waste and increasing the profitability of every job.
Parameter | Specification |
Model | SL1625PC |
Working Area | 1600mm × 2500mm (Customizable) |
Working Tools | Cutting Tool, Kiss-Cut Tool, CCD Camera |
Cutting Thickness | ≤100mm |
Cutting Tolerance | ±0.1mm |
Applicable Materials | KT Foam, Sunboard, Sticker, Label, Banner, Fabric, Acrylic, etc. |
Applicable Markets | Advertising, Printing, Packaging, Graphics |
Drive System | Japan Servo Motor, Taiwan Guide Rail & Rack |
Software Suite | Machine Control Software, Intelligent Nesting Software |
Safety Device | Emergency Switches, Anti-Collision Device, Infrared Sensors |
Rated Power | 11KW |
Warranty | 3 Years |
The SL1625PC is a game-changer for any business producing printed graphics.
Stickers & Labels: Produce intricate, kiss-cut sticker sheets and custom labels with perfect borders.
POP & POS Displays: Create eye-catching, contour-cut standees, shelf talkers, and displays from foam board and other rigid materials.
Vehicle Graphics & Decals: Accurately cut printed vinyl for partial wraps, logos, and custom decals.
Custom Signage: Cut printed graphics on acrylic, sunboard, and other substrates into any shape imaginable.
Fabric & Banners: Finish soft signage and banners with clean, precise edges.
We provide more than a machine; we deliver a comprehensive partnership built on expertise, authority, and trust.
Expert Consultation: Our specialists understand the demands of the print and advertising industry. We will help you configure the SL1625PC with the ideal tools to match your printing capabilities and business goals.
A Fully Integrated System: You receive a turnkey solution. The hardware, CCD camera, and software are designed to integrate seamlessly, ensuring you are running production jobs from day one.
Global Installation & On-Site Training: Our factory-certified technicians provide professional installation and train your team on the complete print-and-cut workflow, from file setup to final production.
Authoritative 3-Year Warranty: We are so confident in the reliability and precision of our machines that we back the SL1625PC with an industry-leading 3-year warranty for your complete peace of mind.
Lifetime Technical Support: Your success is our priority. You gain a dedicated partner with lifetime access to our expert support team for any operational or application questions.
Eliminate cutting errors and unlock the full potential of your printing operation. The SL1625PC delivers the accuracy and speed you need to grow your business.
Contact us today to schedule a live demo and see how the SL125PC can revolutionize your print-and-cut workflow.
Request a Quote & Live Demo!
