Author: Win Zhang Publish Time: 2026-08-12 Origin: SLCNC
Ventas runs a protective packaging company in Mexico, producing foam and bubble wrap for general cushioning applications. At some point, he noticed something a lot of packaging manufacturers eventually notice: custom EVA foam inserts carry a much higher profit margin than commodity cushioning material, and he wanted a way into that market without betting his entire strategy on it. I want to walk through why an EVA foam cutting machine turned out to be exactly the right entry point, and how we configured the machine to his specific material and dimensions.
If you currently produce standard protective packaging and you're considering a move into custom foam inserts — for tools, electronics, cases, or any application requiring a precisely shaped cavity — this case should walk you through the decision logic and the technical questions worth asking.

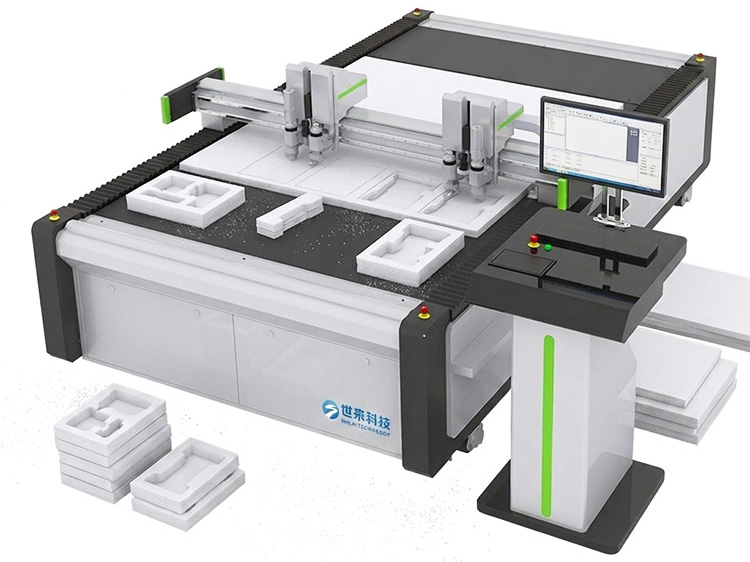

Custom EVA foam inserts aren't just "foam cut into a shape" — they typically require two distinct operations on the same piece: cutting the outer profile, and carving an internal cavity (a recessed pocket shaped to hold a specific tool, product, or component). That combination is exactly what our oscillating knife cutting machines are built for. The machine can be equipped with both a milling tool, which carves the internal cavity, and an oscillating (vibrating) knife, which cuts the outer contour — so a single machine completes the entire insert, rather than needing a separate process for the pocket and the outline.
The other advantage that mattered directly for Ventas's expansion plan is that this is a digital, die-free process. The machine cuts directly from a CAD file — there's no mold or die to design, tool, and pay for up front. That eliminates the tooling cost and lead time that would otherwise make custom, low-volume insert orders financially unworkable, and it gives Ventas the fast turnaround that custom orders demand.
Ventas came to us with a specific spec: EVA foam at 64 kg/m³ density and 55° hardness, in sheets sized 1.39m x 2.90m, with a maximum thickness of 50mm.
Based on that, we recommended our CZ-1530F model, with a 1.5m x 3m working table — large enough to fit his 1.39m x 2.90m sheets with proper margin, without leaving excessive unused table space. Because his EVA foam runs up to 50mm thick, we set the machine's cutting head clearance (Z-axis travel) to 60mm, giving him working room above the material's maximum thickness.
For tooling, we configured a 400W oscillating knife paired with a milling tool. Among the range of blade options available on our machines, a 400W oscillating knife is specifically the right power level for cutting EVA foam — this isn't a generic recommendation; it comes from direct experience serving foam-industry customers, where the correct blade specification genuinely affects cut quality and edge finish.
One detail worth understanding if you're specifying your own machine: our machines can cut EVA foam up to 100mm thick as a maximum capability, but the practical cutting thickness decreases as foam density increases. For Ventas's 55° hardness EVA, the practical cutting thickness is around 60mm. Lower-density EVA foam, around 35° hardness, can be cut up to roughly 100mm thick. If you're specifying a machine for your own foam, the hardness/density rating of your specific material — not just the machine's stated maximum — determines what thickness you can actually process.
Ventas asked this specifically because he wanted the machine to be broadly useful across his packaging business, not just for the new EVA insert line. The answer is yes: our machines can also cut EPE foam, PE foam, and PE sponge, among other foam types — but that requires adding a pneumatic knife as an additional tool. A pneumatic knife is suited to softer, lower-hardness foam materials, which cut differently than denser EVA and need a different blade mechanism to get a clean result.
Ventas was particularly focused on one question that I think every serious overseas buyer should ask: how do you make sure the machine that actually ships matches the configuration you quoted, and that it runs correctly before it leaves the factory? We offer three verification options, and buyers are free to choose whichever fits their comfort level and budget.
1. Video verification. Our sales engineer records or live video-calls the customer through the entire verification process — going through the quoted configuration item by item, taking close-up shots of brand nameplates on key components, and running a live test cut so the customer can see the actual cutting result in real time. This is the option most customers choose, since it's the simplest and most convenient for both sides.
2. On-site verification at our factory. A customer's representative can travel to our factory to inspect the machine in person. Beyond verification, this also gives that representative the opportunity to learn hands-on machine operation directly from our engineers — and that training is completely free. This is a strong option for a buyer who wants to combine verification with real operator training before the machine ships.
3. Third-party inspection. A number of independent inspection and certification companies can conduct formal verification on the customer's behalf. The inspection company checks the machine against the customer's requirements and our provided documentation, then issues a report directly to the customer. The customer covers the inspection company's fee in this case, but it provides an independent, third-party record for buyers who want that extra layer of assurance.
If you're running a standard protective packaging business and considering a move into custom EVA inserts, Ventas's case highlights the questions worth working through before you buy:
Does the machine handle both outer-profile cutting and internal cavity carving in one setup, or will you need a second process?
Is the recommended blade power actually matched to your foam type, not just generically labeled "for foam"?
Does your foam's density affect the realistic cutting thickness you can achieve, versus the machine's advertised maximum?
Do you want the flexibility to cut other foam types (EPE, PE) down the road, and does that require an additional tool?
What verification option — video, in-person, or third-party — fits your risk tolerance and budget before you commit to payment?
Every foam insert operation has a different mix of material density, hardness, sheet size, and thickness — which means the right working table, Z-axis clearance, and blade configuration will vary. Share your foam specifications and sheet dimensions with my team, and we'll recommend a configuration suited to your production, the same way we did for Ventas.
