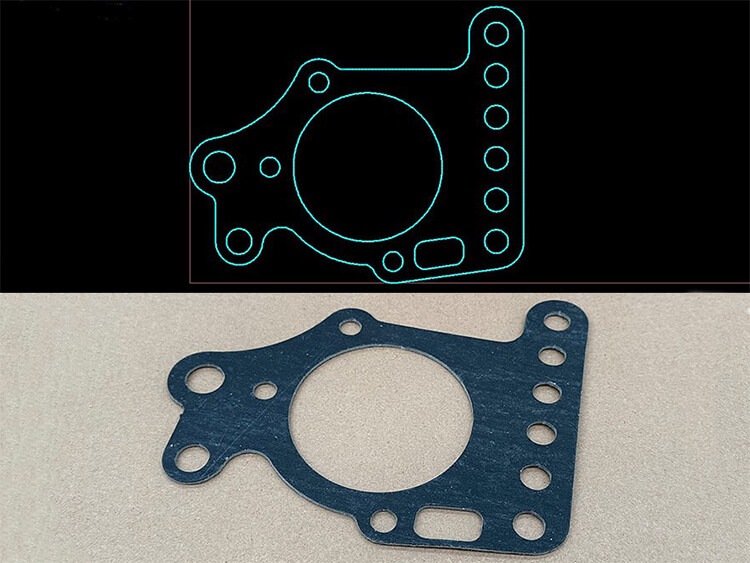

From CAD to Cut Gaskets: A No-Guesswork Workflow That Just Works

From CAD to Cut Gaskets: A No-Guesswork Workflow That Just Works

If you’re still manually fixing DXFs, guessing feed rates on the fly, or discovering liner breaches after the nest ships—you’re working too hard.

The truth? The fastest path from drawing to finished gasket isn’t about faster machines—it’s about cleaner data and fewer decisions on the floor.

When your digital thread is tight—standardized CAD exports, material-aware CAM recipes, automated nesting, and closed-loop quality checks—you cut scrap, eliminate rework, and lock in critical specs like edge quality, ID tolerance, and kiss-cut depth from the first part to the last.

Here’s how top shops do it. Step by step. No fluff.

1. Start Clean: CAD Standards That Prevent 80% of Floor Problems

Garbage in = garbage out. But “clean” CAD doesn’t mean perfect—it means predictable.

Use the Right File Formats

• 2D: DXF R12 or R14 (universally compatible). Flattened DWG is okay if your CAM handles it.

• 3D: Export assemblies as STEP, then derive 2D profiles in your CAM or preprocessor. Never cut directly from 3D.

Pro tip: Treat PDF vector as a last resort. It’s not editable, and scaling errors are common.

Name Layers Like a Pro

Your machine should “read” your intent without asking. Use these standard layer names:

Layer Name	What It Means	Machine Action
CUT_THROUGH	Full-depth cuts (OD, holes)	Standard knife pass to underlay
KISS_CUT	Adhesive-only cuts	Two-pass shallow + cleanup; Z-guardrails enforced
SCORE or CREASE	Light score for folding/peel aids	Reduced depth, faster feed
MARK_TEXT	Part ID, batch, QR code	Sent to pen/laser/inkjet—no knife
NO_CUT	Reference geometry, notes	Ignored by toolpath

✅ Always export a PDF with a layer legend—and embed it as a block in the DXF for audit trails.

Enforce Geometry Rules Early

• All polylines must be closed and non-self-intersecting.

• Minimum hole size: Blade diameter + 2× kerf compensation.

• Corner radii: ≥0.3 mm unless your system supports overcut.

• Tolerances: Put CTQs (e.g., “ID ±0.15 mm”) in drawing notes—not just on the model.

And name files clearly:

GSK-789_B_EPDM_2.0.dxf tells you everything before you open it.

2. Validate & Clean—Automatically

Don’t rely on CAM techs to “fix it later.” Build validation into intake.

Run an automated pre-check script that:

• Joins broken segments

• Removes zero-length lines and duplicate entities

• Converts splines to arcs/lines (most CNCs hate splines)

• Flags tiny gaps (<0.05 mm) that cause open paths

• Verifies scale matches drawing units (mm vs. inch disasters are real)

Then lock the approved version:

• Save the “as-cut” DXF + a stamped PDF (with ECO number, revision, material)

• Store both in your PDM/PLM—never on a shared drive named “Final_v3_ACTUAL”

This becomes your single source of truth for the job.

3. CAM Recipes: Bake Quality Into the Code

Stop tuning parameters on the floor. Instead, assign a recipe by material and thickness—and never deviate.

What’s in a Good Recipe?

• Feed rate & acceleration

• Oscillation amplitude/frequency

• Kerf compensation value

• Z-depth limits (especially for PSA)

• Corner deceleration %

• Overcut rules for small IDs

• Micro-feature profile (for holes <12 mm)

For PSA kiss-cut jobs, the recipe must include:

• Two-pass strategy (score + cleanup)

• Per-zone Z guardrails

• Peel-force target (e.g., 8–14 N)

Tooling Is Part of the Recipe

Link blade type directly to material:

• PTFE / PSA: Polished fine-tip, single-bevel

• Graphite / Aramid: Carbide, robust bevel

• FKM / NBR: Steeper single-bevel, coated

Cut Order Matters

• IDs first → more material mass = better vacuum hold = less deflection

• Relief features next

• OD last

• For micro parts: add tabs or onion-skin to prevent loss during cutting

4. Nest Smart—Not Just Dense

High yield means nothing if parts are out of spec. Optimize for quality + material use.

Nesting Rules by Material

• PTFE: Allow ±45°–90° rotation (isotropic)

• Aramid / Graphite: Limit to ±15°–30° (fiber direction matters)

• PSA Laminates: Often no rotation—check liner grain or print alignment

Use common-line cutting where safe (reduces passes, heat, and wear)—but avoid it on fragile materials.

Manage Remnants Like Inventory

• Auto-capture offcuts with QR-coded labels

• Log: material, thickness, usable area, best-fit SKUs

• Prioritize remnants in nesting—your CFO will thank you

Label Everything

Print part labels with:

• Item code, revision, material, thickness

• Batch ID, recipe ID, QC checkpoints

• QR code that links to work order and SPC targets

Scan it at packing—no more “wrong rev shipped” fires.

5. CNC Setup: Verify Before You Run

Never assume the bed is flat or the underlay is fresh.

Calibrate Every Time

• Run a bed map by zone (especially on large tables)

• Measure underlay thickness/hardness—replace if compressed >0.2 mm

• Apply Z offsets per zone (critical for kiss-cut)

Run Test Coupons—Every Job

• Kerf coupon: 100mm line → auto-update kerf comp

• Micro-feature card: Circles 3–12mm → check roundness and overcut

• PSA peel coupons: Cut at all four corners; verify force is 8–14 N (or your spec)

Use Vision When It Counts

• Fiducials for printed laminates → compensate skew/scale

• Camera check for bolt-circle concentricity on critical flanges

How to Connect CAD, ERP, and the Shop Floor

Pick the integration pattern that fits your scale:

Option A: PDM-Driven (Best for High-Mix, Frequent ECOs)

• Engineering releases DXF + metadata (material, thickness, rev) from PDM

• Script auto-picks CAM recipe → nests → generates CNC job pack

• CNC sends SPC data (kerf, peel force) back to MES → triggers NCRs on drift

Option B: ERP Work Order → CAM (Mid-Volume Shops)

• ERP sends item + rev + material

• CAM pulls recipe + checks remnant availability

• Operator scans QR → loads correct job, blocks manual override

Option C: Direct Handoff (Prototypes / R&D)

• Designer exports DXF with layer legend

• CAM tech assigns recipe using approved templates

• Fast—but requires a 5-point checklist to prevent skipped steps

Quality Gates You Can’t Skip

Build these into your traveler:

First-Article Package

• Measure critical IDs/ODs

• Take 20–40x microscope photo of edge

• Peel test (PSA)

• Roundness check on small holes

In-Process Checks

• Kerf verification every 50–200 m² (or after blade change)

• Peel-force SPC by bed zone—with alarms on drift

Final Acceptance

• Visual AQL for edge quality and liner integrity

• Scan label to confirm material, rev, and recipe match work order

Common Failures—and How to Stop Them

Problem	Root Cause	Fix
Oval bolt holes	No micro-feature profile; outdated kerf	Enable small-hole motion rules; run kerf coupon before every job
Liner pierced in kiss-cut	Missing Z offsets; worn underlay	Bed mapping + per-zone guardrails; replace underlay on schedule
Low yield despite full sheets	No rotation; ignored remnants	Enable material-specific rotation + remnant library with QR reuse
Wrong revision cut	Manual file selection	QR-driven job load from ERP/PDM; block manual override

Automate the Boring Stuff (So Humans Don’t Have To)

Build these low-friction automations:

• File intake script: Validates units, joins lines, enforces layer names

• Recipe picker: Looks up by material + thickness + adhesive flag

• Nesting pipeline: Batches by width, tries remnants first, applies common-line logic

• CNC job pack: Bundles toolpath, QR label, first-article checklist, and SPC targets

Final Takeaway: Make It Boring (On Purpose)

The goal isn’t speed—it’s predictability.

When your workflow goes:

Standardized CAD → Auto-Cleaned Geometry → Material-Locked Recipe → Smart Nesting → Verified Cut → Tracked Quality

…you stop firefighting. You ship on time. And your gaskets meet spec—every shift, every batch.

Because in precision cutting, boring is beautiful.
