Cost-Benefit Analysis: How Much Can a CNC Gasket Cutting Machine Really Save You?

Cost-Benefit Analysis: How Much Can a CNC Gasket Cutting Machine Really Save You?

If you’re still cutting gaskets with dies, you’re likely leaving money on the table—especially if you work with high-value materials like PTFE, graphite, or adhesive-backed laminates.

Most gasket converters and OEMs see a full return on investment in 6 to 18 months after switching to CNC digital cutting. The savings come from five key areas:

• Eliminating die costs

• Boosting material yield by 5–12%

• Reducing scrap, rework, and returns

• Compressing lead times

• Enabling one operator to manage multiple machines or complex jobs

But your exact ROI depends on your material mix, job variability, and how well your software leverages nesting, traceability, and recipe control.

Who Should Read This?

• Gasket converters weighing capital investment in digital cutting vs. expanding die inventory

• OEMs considering in-house production for speed, IP control, and supply chain resilience

• Operations and finance leaders modeling total cost of ownership (TCO), cash flow, and operational risk

• Process engineers building standardized recipes, SPC protocols, and lean workflows

If your shop runs high-mix, low-volume (HMLV) jobs—or deals with frequent engineering changes—this analysis is for you.

Executive Summary: The Bottom Line

• Capex: A modern CNC gasket cutter (with vision, multi-tool head, zoned vacuum, and smart software) typically replaces multiple die sets and reduces reliance on outsourced cutting.

• Opex: Ongoing costs are minimal—blades, underlay, filters, and scheduled maintenance. No more die storage, sharpening, or logistics.

• Savings levers: Highest impact comes from yield gains on expensive materials, elimination of tooling, labor efficiency, and quality improvements.

• ROI: In HMLV environments with premium materials, 20–50% lower cost per part is common—and achievable within a year.

Upfront & Ongoing Costs: CNC vs. Die Cutting

The die model looks cheap at first glance—until you factor in the true cost of complexity.

The 5 Biggest Savings Drivers

1. Die Elimination = Instant Flexibility

• New dies cost $300–$3,000+ each. With frequent ECOs, that adds up fast.

• CNC starts cutting from CAD the same day—no tooling delays, no approval runs, no obsolete inventory.

2. Yield Gains on Premium Materials

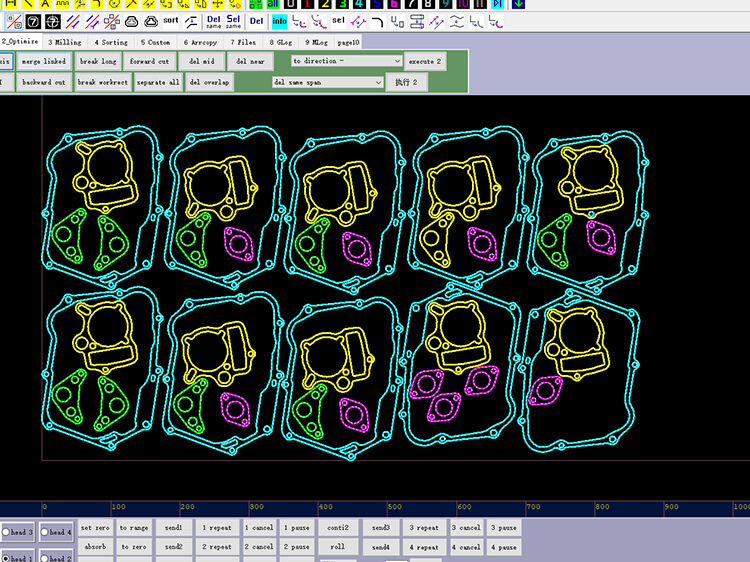

• PTFE and graphite often see 5–12% higher yield thanks to AI-powered nesting, common-line cutting, and remnant reuse.

• For adhesive-backed laminates, smart part rotation and micro-bridging prevent lift and scrap during kiss-cutting.

3. Labor Productivity Soars

• Digital recipes slash setup time from 30+ minutes to under 5.

• One trained operator can run 1–2 machines or manage cutting plus kitting—enabling true HMLV flow with less WIP.

4. Quality Improves, Rework Drops

• Closed-loop depth control prevents liner breaches on PSA stacks.

• Kerf libraries and vision registration stabilize small-ID accuracy and eliminate misalignment on printed jobs.

5. Faster Order-to-Cash, Less Inventory

• Same-day changeovers enable build-to-order instead of batch-and-hope.

• Reduced finished-goods inventory frees up working capital—especially valuable in volatile markets.

A Simple ROI Calculator You Can Use Today

Gather these inputs:

• Monthly material spend by type (PTFE, graphite, rubber, PSA)

• Current vs. target yield (by material)

• Monthly die spend (new + refurb)

• Labor: Operators per shift, jobs/day, average changeover time

• Scrap/rework rate and cost of customer returns

• Order-to-cash cycle and inventory carrying cost (%)

Then estimate monthly savings:

• Material savings = Spend × (Target yield – Current yield)

• Die savings = Monthly die spend avoided

• Labor savings = (Time saved per job × Jobs × Labor rate) + Coverage efficiency

• Quality savings = Reduced scrap × Avg. job cost + Avoided returns

• Working capital benefit = Inventory reduction × Carrying rate × (Days saved ÷ 365)

Payback (months) = Total Capex ÷ Total Monthly Savings

For a 5–8 year machine life, you can also estimate IRR using standard financial models.

Real-World Scenarios: What ROI Looks Like

Case 1: PTFE-Heavy Converter (HMLV, High Material Cost)

• Baseline: $120k/month PTFE spend at 78% yield

• With CNC: 86% yield via smart nesting + remnant reuse

• Savings: $12k (material) + $8k (dies) + $6k (labor/quality) = $26k/month

• Payback: $240k machine → 9–10 months

Case 2: Graphite + Aramid Shop (Abrasive, Dust-Prone)

• Baseline: $90k/month materials, 80% yield, frequent rework

• With CNC: 87% yield, carbide blades, vision alignment

• Savings: $6.3k (material) + $5k (dies) + $4k (rework/labor) = $15.3k/month

• Payback: $200k system → ~13 months

Case 3: Mixed Rubber with PSA (HVAC/Industrial)

• Baseline: High changeover time, frequent liner breaches

• With CNC: Kiss-cut guardrails, minutes-not-hours changeovers

• Savings: $8k–$15k/month (dies + labor + scrap)

• Payback: $180k system → 12–22 months

Hidden Costs You Stop Paying

Switching to CNC eliminates more than just dies:

• Die logistics: Quoting, shipping, storage, tracking

• ECO errors: Old dies used by mistake → scrap batches

• Minimum order penalties: Overproduction due to batch economics

• Outsourcing premiums: Rush fees when internal capacity is maxed

These “soft” costs often account for 10–15% of total gasket production expense.

What Drives Your ROI the Most?

Modeling Cost Per Part (SKU-Level View)

For each part, track:

• Material cost per m², thickness, format (sheet/roll)

• Nest yield %, kerf width, common-line enabled?

• Cutting time (path length, feed rate, accelerations)

• Changeover time, blade wear, underlay usage

• Inspection rate and rework probability

Then calculate:

• Material cost/part = (Part area ÷ Yield) × Cost/m²

• Machine time cost = (Cut + Setup time) × Loaded hourly rate

• Consumables = Blade + underlay allocation

• Scrap cost = Rework probability × Full part cost

Compare this to your current die-cut cost—and the gap often surprises.

Finance & Risk: Protecting Your Investment

• Financing: Leasing or loans can align payments with monthly savings—aim for positive cash flow from Day 1.

• Service & uptime: Require local support, spare parts kits, and remote diagnostics in your SLA.

• Data security: Back up recipes and nesting libraries; confirm software update/rollback policies.

• Vendor lock-in risk: Choose systems with open file formats (DXF, CSV, etc.) and API access to avoid dependency.

Implementation Plan That Locks in ROI

1. Pre-purchase trials: Cut your actual materials. Demand edge photos, dimensional reports, and kiss-cut peel tests.

2. Data pack: Share CAD files, tolerances, material specs, and KPI targets for an accurate yield/cycle-time estimate.

3. Site prep: Ensure proper vacuum, dust extraction, power, and ESD controls—especially for graphite or PSA jobs.

4. Standardize SOPs: Lock recipes by material/thickness; use barcodes for recall; enforce first-article checks.

5. Track performance: Monitor yield, m²/hour, scrap rate, Cp/Cpk on CTQs, and blade-life meters.

What “Good” Looks Like After 90 Days

• 5–10% yield gain on premium materials; offcut library actively reused

• 60–80% faster setups; one operator running two machines or multitasking

• 30–50% less scrap/returns thanks to kiss-cut guardrails and SPC

• Predictable throughput and order-to-cash cycle shortened by 2–5 days

Frequently Asked Questions

Q: Can CNC replace all my dies?

A: Not always. For ultra-high-volume, frozen SKUs, hard dies may still win on cost-per-part. Many shops run hybrid: CNC for HMLV/ECO jobs, dies for long runners.

Q: What accuracy can I expect?

A: ±0.1–0.2 mm on stable materials (graphite, PTFE, firm elastomers). Soft foams or thick silicone may relax to ±0.3–0.5 mm.

Q: How do I prove nesting improvements?

A: Run A/B nests on your actual CAD: one with rotation rules and common-line cutting, one without. Compare yield % and cycle time per m².
