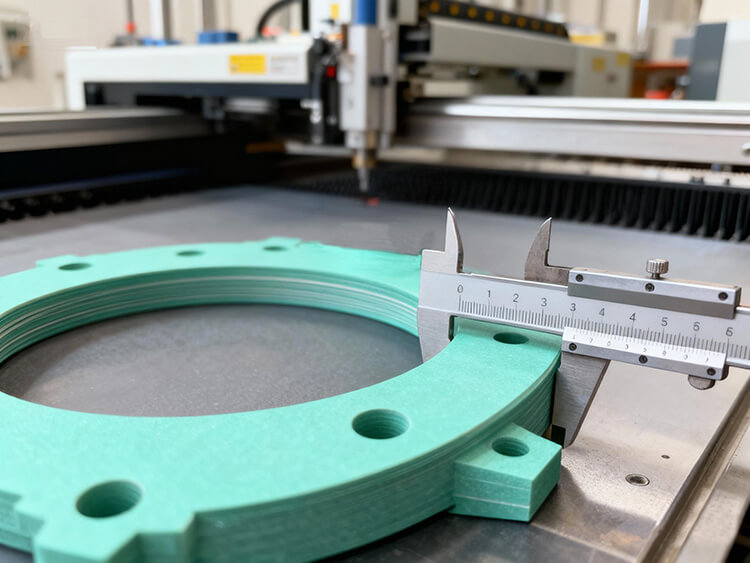

When your gasket tolerances demand perfection—especially on intricate bolt patterns, tight internal diameters, or multi-layer PSA stacks—±0.1 mm isn’t just a spec. It’s the difference between a flawless seal and costly field failures.
But how do modern CNC digital knife cutters consistently hit this benchmark on materials like graphite foil, filled PTFE, or firm elastomers? It’s not magic. It’s a tightly integrated system of mechanics, tooling, vacuum control, software intelligence, and disciplined process validation.
This guide breaks down exactly what makes sub-0.1 mm accuracy possible—and who needs to understand it.
Gasket converters pushing the limits of edge quality and dimensional control
OEMs moving precision gasket production in-house
Process and quality engineers building robust, repeatable cutting recipes
Operations leaders focused on yield, rework reduction, and full traceability
If your parts live or die by how well they seal, align, or stack—this is for you.
First, let’s be clear: ±0.1 mm accuracy is achievable—but only under the right conditions.
Ideal materials: Dimensionally stable sheet media like:
Graphite with stainless steel foil backing
Glass-filled or carbon-filled PTFE
Medium-to-high durometer elastomers (e.g., EPDM, NBR, FKM)
Realistic expectations:
Soft foams, thick silicones, or highly compressible materials may relax to ±0.2–0.5 mm post-cut.
For kiss-cut stacks, depth repeatability matters more than absolute XY size.
Focus tolerance control on CTQs—Critical-to-Quality features like bolt hole positions, sealing IDs, or narrow bridges.
In practice, aim to hold ±0.1–0.2 mm on your most critical dimensions—and define those upfront.
Precision starts with the machine itself.
Table flatness & bed support: A truly flat, rigid bed prevents Z-axis variation that causes burrs, inconsistent depth, and edge deviation. Even 0.05 mm of bed warp can throw off small features.
Gantry stiffness: Heavy-duty frames with precision linear guides resist deflection during high-acceleration moves or tight cornering.
Motion profiles: Jerk-limited acceleration and smooth velocity curves maintain path fidelity—especially on arcs under 10 mm or dense bolt circles.
Maintenance matters: Weekly rail cleaning, bearing checks, and quarterly squareness calibration keep baseline accuracy intact.
A CNC cutter is only as precise as its last calibration.
No clamps. No pins. Just intelligent vacuum control.
Zoned vacuum systems allow independent control over small areas—critical for holding narrow webs or micro-gaskets without starving adjacent zones.
Carrier sheets (like PET or kraft paper) stabilize porous or lightweight materials (e.g., ePTFE, open-cell foams) to prevent lift or fly-out.
Consistent underlay: Use dense, uniform vacuum mats (felt or engineered boards). Soft spots = depth inconsistency = tolerance drift.
Smart cutting sequence: Cut internal features first, perimeters last. Use micro-tabs to keep tiny parts in place until final release.
Poor hold-down is the #1 cause of edge lift—and the silent killer of ±0.1 mm accuracy.
The right blade, at the right angle, with the right motion—makes all the difference.
Graphite/fiber composites: Carbide or coated blades with sharp tips and controlled oscillation to prevent crumbling.
PTFE (especially filled): Polished, ultra-sharp edges; low amplitude to avoid smearing or lip formation. Two-pass cutting often needed on >2 mm stock.
Elastomers: Match blade geometry to durometer—softer rubbers need more aggressive shear action.
Use sufficient frequency to create a clean slicing action—not dragging.
Decelerate sharply at corners and add slight overcuts for crisp internal radii.
Feed rate must balance speed and edge quality—too fast = deflection; too slow = heat buildup.
Maintain a per-material kerf library in your software.
Adjust for blade wear: new, mid-life, and end-of-life blades cut differently.
Validate on small IDs—roundness is the ultimate test of true kerf control.
For PSA-backed gaskets, depth control is non-negotiable.
Per-zone depth calibration: Compensate for underlay wear, thermal expansion, or bed inconsistencies.
Kiss-cut guardrails: Software-enforced depth limits prevent liner breaches. Always run test coupons at job start—and after underlay rotation.
Multi-pass cutting: Step down in shallow increments on thick PTFE or soft rubbers. Reduces material deformation and improves edge straightness.
A 0.02 mm depth error can mean adhesive bleed-through—or a part that won’t release.
Modern systems don’t just follow CAD—they adapt to reality.
Fiducial recognition corrects for sheet skew, stretch, or print-to-cut misalignment—essential for pre-printed or laminated stacks.
Auto-squareness checks and bed probing routines catch cumulative mechanical drift before it affects parts.
Feature-based compensation: If a pilot hole is off by 0.05 mm, the system can apply a micro-offset before cutting the full nest.
This isn’t “nice to have”—it’s how you maintain ±0.1 mm across 10,000 parts.
Great hardware needs smart software.
Path sequencing: Cut internals before perimeters. Use lead-ins/outs on fragile features. Avoid lifting the tool over uncut webs.
Advanced nesting: Enforce grain direction, rotation limits, and remnant reuse—without sacrificing tolerance.
Recipe governance: Lock parameters by material, thickness, and adhesive type. Use barcode scanning to recall jobs—eliminating operator drift.
Full traceability: Auto-generate part IDs, cut logs, and job metadata tied to material batch and recipe version.
Your software should enforce consistency—not just enable cutting.
Accuracy isn’t assumed—it’s measured.
First-article inspection: Use vision systems or CMM to verify CTQs—especially small IDs, narrow bridges, and concentric features.
Statistical Process Control (SPC): Track Cp/Cpk on critical dimensions. Adjust kerf tables before parts go out of spec.
Blade-life analytics: Correlate meters cut with tolerance drift. Swap blades proactively—not reactively.
Vacuum telemetry: Monitor zone pressure over time. A 10% drop can signal filter clogs or seal wear—predicting lift errors before they happen.
If you’re not measuring, you’re guessing.
Challenge | Solution |
Tiny bolt circles in graphite | High-frequency oscillation, low amplitude, strong vacuum, micro-tabs. Consider micro-punching for holes <5 mm. |
Small IDs in PTFE | Slow feed, polished blade, two-pass cut. Validate roundness with gauge pins or vision. |
Sharp corners in rubber | Aggressive corner decel, short overcuts, firm underlay to resist deformation. |
One-size-fits-all doesn’t work when tolerances shrink.
Verify bed flatness (<0.05 mm variation) and gantry squareness
Clean linear rails; update firmware (but back up recipes first!)
Calibrate tool length, Z-zero, and vacuum zones
Define oscillation frequency, amplitude, feed rate, kerf offset
Set corner rules, path order, and kiss-cut depths with safety margins
Cut on your actual material—not demo stock
Inspect edges, measure CTQs, run peel tests for PSA jobs
Lock winning parameters; print a one-page recipe card with photos
First-piece approval + SPC sampling
Scheduled blade and underlay rotation
Daily vacuum filter checks; weekly mechanical inspections
Log rework causes (lift, burr, oversize)
Feed findings back into recipes and nesting rules
Maintain separate kerf tables for new/mid/end-of-life blades
Don’t take claims at face value. Ask for:
✅ On-your-material sample cuts with full dimensional and roundness reports
✅ Kiss-cut validation across multiple vacuum zones on your PSA stacks
✅ Nesting yield comparison on your top SKUs vs. legacy methods
✅ References from users cutting similar materials and feature sizes
If they can’t deliver real-world proof—keep looking.
Prioritizing table size over vacuum quality or software control
Using a single kerf value for all materials and blade conditions
Ignoring underlay wear (a major source of depth drift)
Skipping corner deceleration on micro-features
Updating firmware without backing up recipes and tool libraries
Small oversights compound fast at ±0.1 mm.
Accuracy: ±0.1–0.2 mm on stable materials; consistent roundness; burr-free edges
Yield: 5–12% improvement via intelligent nesting, common-line cutting, and remnant reuse
Uptime: Predictive maintenance, <2-minute blade swaps, one-operator-two-machine workflows
Traceability: Barcode-driven recipes, inline labeling, audit-ready logs
This isn’t theoretical—it’s what leading gasket shops achieve daily.
We design CNC digital knife systems built for precision gasket manufacturing—not just cutting. With rigid mechanics, multi-tool heads, vision alignment, zoned vacuum, and open, recipe-driven software, we help converters and OEMs hit ±0.1 mm reliably, repeatedly, and profitably.
Send us your CAD files and material samples. We’ll provide:
Sample cuts on your stock
Dimensional and roundness reports
Kiss-cut validation for PSA stacks
A tailored ROI and capability plan
Because when your gasket seals a $500,000 engine—or a medical device—±0.1 mm isn’t optional. It’s essential.
